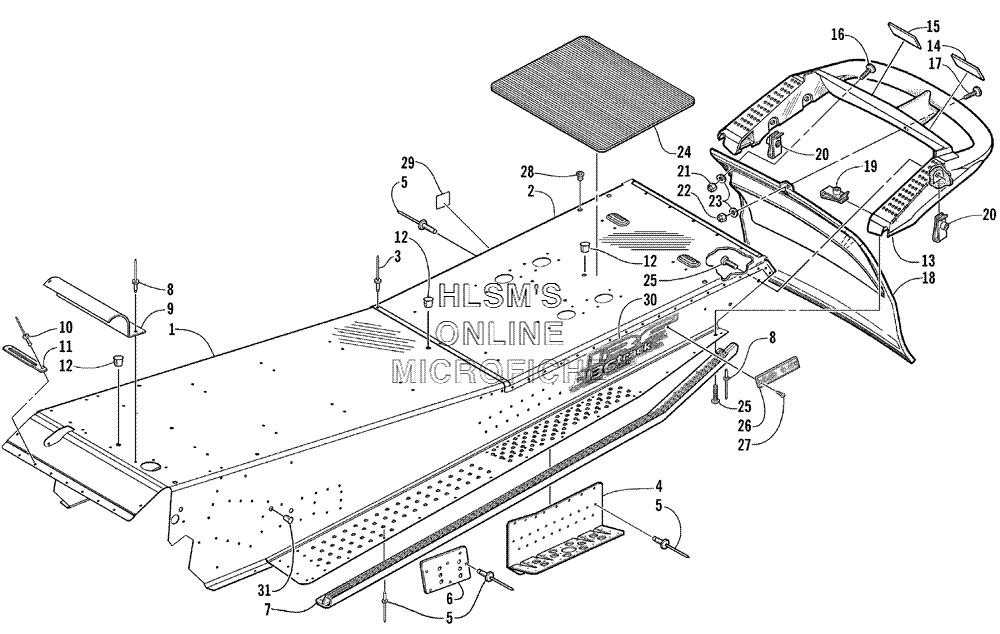

TUNNEL AND REAR BUMPER для Arctic Cat MOUNTAIN CAT 500 - 2002 года выпуска`
-
№АртикулНазвание
-
11718-147 TUNNEL ASSY. (INC. 2, 5)TUNNEL ASSY. (INC. 2, 5)
-
22606-202 PLATE, END TUNNEL (REAR)PLATE, END TUNNEL (REAR)
-
38060-484 RIVETRIVET
-
40716-970 BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)
-
40716-971 BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)
-
50623-072 RIVETRIVET
-
50623-166 RIVETRIVET
-
50123-418 RIVETRIVET
-
58060-486 RIVET*RIVET*
-
61606-161 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
72606-506 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
72606-507 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
80623-166 RIVETRIVET
-
90607-598 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
108060-504 RIVETRIVET
-
113002-964 CLAMP, WIRECLAMP, WIRE
-
120623-562 PLUG, HOLEPLUG, HOLE
-
131606-200 BUMPER (REAR)BUMPER (REAR)
-
141611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
151611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
168007-579 SCREW, MACHINESCREW, MACHINE
-
178017-580 SCREW, MACHINESCREW, MACHINE
-
181606-202 SNOWFLAPSNOWFLAP
-
181606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
190623-427 NUT, UNUT, U
-
200623-771 NUT, UNUT, U
-
218041-366 NUT, LOCKNUT, LOCK
-
228040-366 NUT, LOCKNUT, LOCK
-
238050-217 WASHERWASHER
-
241606-444 PAD, RUBBERPAD, RUBBER
-
258017-581 SCREW, MACHINESCREW, MACHINE
-
260606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
270623-269 CLIP, RETAININGCLIP, RETAINING
-
280623-582 INSERTINSERT
-
290411-053 DECAL, CEDECAL, CE
-
304611-050 DECAL, "136 INCH TRACK" TUNNEL (RIGHT)DECAL, "136 INCH TRACK" TUNNEL (RIGHT)
-
304611-051 DECAL, "136 INCH TRACK" TUNNEL (LEFT)DECAL, "136 INCH TRACK" TUNNEL (LEFT)
-
310606-983 PLUG, BODYPLUG, BODY
