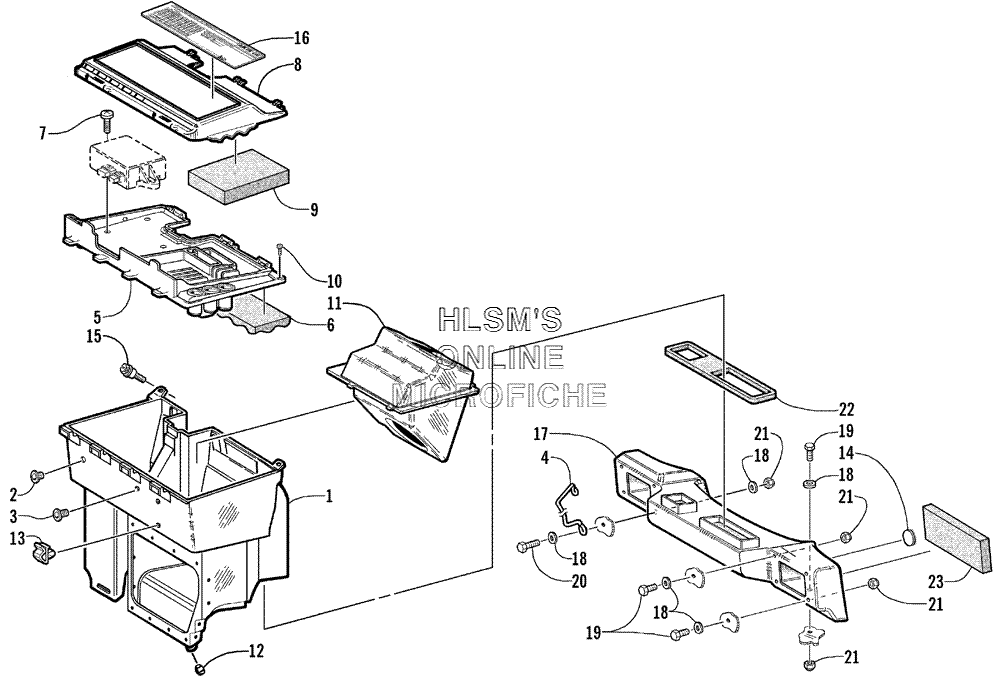

AIR SILENCER ASSY. для Arctic Cat MOUNTAIN CAT 500 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-531 SILENCER, AIR, ASSY. (INC. 2, 3)
    SILENCER, AIR, ASSY. (INC. 2, 3)
  • 2
    0623-529 INSERT
    INSERT
  • 3
    0623-627 INSERT
    INSERT
  • 4
    0607-669 BRACKET, GUARD, HARNESS/ROPE
    BRACKET, GUARD, HARNESS/ROPE
  • 5
    1670-197 COVER, AIR SILENCER
    COVER, AIR SILENCER
  • 6
    0617-393 FOAM, AIR SILENCER, COVER
    FOAM, AIR SILENCER, COVER
  • 7
    0623-057 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 8
    1670-049 COVER, TOOL TRAY
    COVER, TOOL TRAY
  • 9
    0617-411 FOAM, TOOL TRAY
    FOAM, TOOL TRAY
  • 10
    0623-882 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 11
    0670-879 RESONATOR, Q, WAVE, INLET
    RESONATOR, Q, WAVE, INLET
  • 12
    1606-038 BUMPER, AIR SILENCER
    BUMPER, AIR SILENCER
  • 13
    0623-403 CLAMP, PUSH MOUNT
    CLAMP, PUSH MOUNT
  • 14
    0623-078 DISC, VELCRO
    DISC, VELCRO
  • 15
    0623-780 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    4611-201 DECAL, JET CHART
    DECAL, JET CHART
  • 17
    1670-076 PLENUM, AIR SILENCER
    PLENUM, AIR SILENCER
  • 18
    8050-222 WASHER
    WASHER
  • 19
    8002-040 SCREW, CAP
    SCREW, CAP
  • 20
    8002-042 SCREW, CAP
    SCREW, CAP
  • 21
    8040-366 NUT, LOCK
    NUT, LOCK
  • 22
    0617-245 SEAL, AIR SILENCER/PLENUM
    SEAL, AIR SILENCER/PLENUM
  • 23
    0617-270 FOAM, PLENUM, INTAKE
    FOAM, PLENUM, INTAKE
