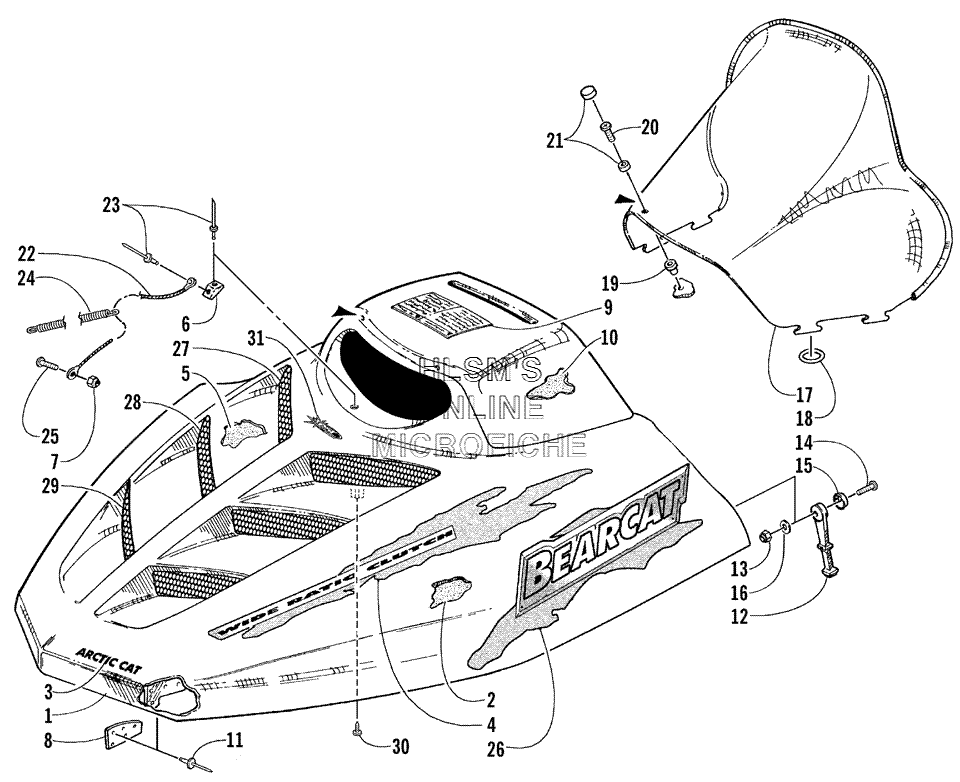

HOOD AND WINDSHIELD ASSY. для Arctic Cat BEARCAT WIDE TRACK (USA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-125 HOOD W/DECALS
    HOOD W/DECALS
  • 1
    0718-968 HOOD W/O DECALS
    HOOD W/O DECALS
  • 2
    0717-058 FOAM (RIGHT)
    FOAM (RIGHT)
  • 2
    0717-059 FOAM (LEFT)
    FOAM (LEFT)
  • 3
    4611-150 DECAL, "ARCTIC CAT", HOOD
    DECAL, "ARCTIC CAT", HOOD
  • 4
    4611-360 DECAL, HOOD (UPPER) (RIGHT)
    DECAL, HOOD (UPPER) (RIGHT)
  • 4
    4611-361 DECAL, HOOD (UPPER) (LEFT)
    DECAL, HOOD (UPPER) (LEFT)
  • 5
    0717-060 FOAM, HOOD (CENTER) (RIGHT)
    FOAM, HOOD (CENTER) (RIGHT)
  • 5
    0717-061 FOAM, HOOD (CENTER) (LEFT)
    FOAM, HOOD (CENTER) (LEFT)
  • 6
    1606-088 BRACKET, HOOD CABLE
    BRACKET, HOOD CABLE
  • 7
    0123-430 NUT, LOCK
    NUT, LOCK
  • 8
    0616-438 BRACKET, HOOD, HINGE
    BRACKET, HOOD, HINGE
  • 9
    1611-575 DECAL, WARNING
    DECAL, WARNING
  • 10
    0717-062 FOAM, HOOD UPPER (RIGHT)
    FOAM, HOOD UPPER (RIGHT)
  • 10
    0717-063 FOAM, HOOD UPPER (LEFT)
    FOAM, HOOD UPPER (LEFT)
  • 11
    8061-706 RIVET
    RIVET
  • 12
    0115-306 STRAP, LATCH
    STRAP, LATCH
  • 13
    8040-366 NUT, LOCK
    NUT, LOCK
  • 14
    8019-614 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    0623-261 WASHER, CUP
    WASHER, CUP
  • 16
    8050-217 WASHER
    WASHER
  • 17
    1606-820 WINDSHIELD
    WINDSHIELD
  • 18
    0616-032 O-RING
    O-RING
  • 19
    0123-010 NUT, EXPANSION
    NUT, EXPANSION
  • 20
    0623-121 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 22
    0616-614 CABLE, HOOD
    CABLE, HOOD
  • 23
    8061-708 RIVET
    RIVET
  • 24
    0123-510 SPRING, EXTENSION
    SPRING, EXTENSION
  • 25
    0623-413 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    4611-362 DECAL, HOOD (LOWER) (RIGHT)
    DECAL, HOOD (LOWER) (RIGHT)
  • 26
    4611-363 DECAL, HOOD (LOWER) (LEFT)
    DECAL, HOOD (LOWER) (LEFT)
  • 27
    0706-996 SCREEN, VENT, HOOD (RIGHT)
    SCREEN, VENT, HOOD (RIGHT)
  • 27
    0706-997 SCREEN, VENT, HOOD (LEFT)
    SCREEN, VENT, HOOD (LEFT)
  • 28
    0706-998 SCREEN, VENT, HOOD (CENTER) (RIGHT)
    SCREEN, VENT, HOOD (CENTER) (RIGHT)
  • 28
    0706-999 SCREEN, VENT, HOOD (CENTER) (LEFT)
    SCREEN, VENT, HOOD (CENTER) (LEFT)
  • 29
    0716-004 SCREEN, VENT, HOOD (LOWER) (RIGHT)
    SCREEN, VENT, HOOD (LOWER) (RIGHT)
  • 29
    0716-005 SCREEN, VENT, HOOD (LOWER) (LEFT)
    SCREEN, VENT, HOOD (LOWER) (LEFT)
  • 30
    0623-707 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 31
    3611-581 DECAL, "ESR", DOMED
    DECAL, "ESR", DOMED
