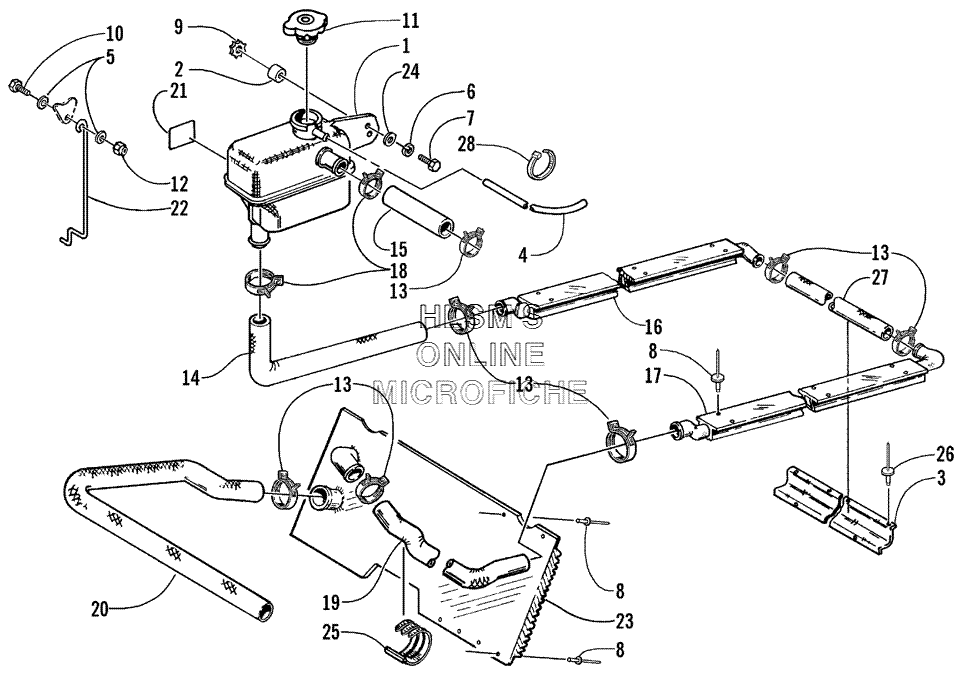

COOLING ASSY. для Arctic Cat BEARCAT WIDE TRACK (USA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    0670-494 TANK, COOLANT
    TANK, COOLANT
  • 2
    0616-878 SPACER
    SPACER
  • 3
    0616-930 GUARD, COOLANT HOSE
    GUARD, COOLANT HOSE
  • 4
    0610-016 HOSE, VENT (25 FT)
    HOSE, VENT (25 FT)
  • 4
    0610-015 HOSE, VENT (100 FT)
    HOSE, VENT (100 FT)
  • 5
    8050-222 WASHER
    WASHER
  • 6
    8051-217 WASHER, LOCK
    WASHER, LOCK
  • 7
    8002-044 SCREW, CAP
    SCREW, CAP
  • 8
    8060-706 RIVET
    RIVET
  • 9
    8053-212 WASHER, LOCK, EXTERNAL TOOTH
    WASHER, LOCK, EXTERNAL TOOTH
  • 10
    8002-042 SCREW, CAP
    SCREW, CAP
  • 11
    0606-268 CAP, FILLER NECK
    CAP, FILLER NECK
  • 12
    8040-366 NUT, LOCK
    NUT, LOCK
  • 13
    0623-736 CLAMP, SPRING
    CLAMP, SPRING
  • 14
    0610-296 HOSE, COOLANT TANK/RIGHT HEAT EXCHANGER
    HOSE, COOLANT TANK/RIGHT HEAT EXCHANGER
  • 15
    0610-325 HOSE, COOLANT TANK/ENGINE
    HOSE, COOLANT TANK/ENGINE
  • 16
    0716-400 EXCHANGER, HEAT (RIGHT)
    EXCHANGER, HEAT (RIGHT)
  • 17
    0716-401 EXCHANGER, HEAT (LEFT)
    EXCHANGER, HEAT (LEFT)
  • 18
    0423-070 CLAMP, SPRING
    CLAMP, SPRING
  • 19
    0610-223 HOSE, COOLANT (LEFT) HEAT EXCHANGER/FRONT HEAT EXCHANGER
    HOSE, COOLANT (LEFT) HEAT EXCHANGER/FRONT HEAT EXCHANGER
  • 20
    0610-328 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
    HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
  • 21
    2611-758 DECAL, COOLANT TANK, FILL LEVEL
    DECAL, COOLANT TANK, FILL LEVEL
  • 22
    1606-269 BRACKET, WIRE FORM, COOLANT TANK
    BRACKET, WIRE FORM, COOLANT TANK
  • 23
    0716-280 EXCHANGER, HEAT (FRONT)
    EXCHANGER, HEAT (FRONT)
  • 24
    0623-184 WASHER
    WASHER
  • 25
    0623-540 CABLE TIE, TRIPLE
    CABLE TIE, TRIPLE
  • 26
    8060-504 RIVET
    RIVET
  • 27
    0610-228 HOSE, COOLANT (REAR)
    HOSE, COOLANT (REAR)
  • 28
    0123-788 CABLE TIE, 8 IN.
    CABLE TIE, 8 IN.
