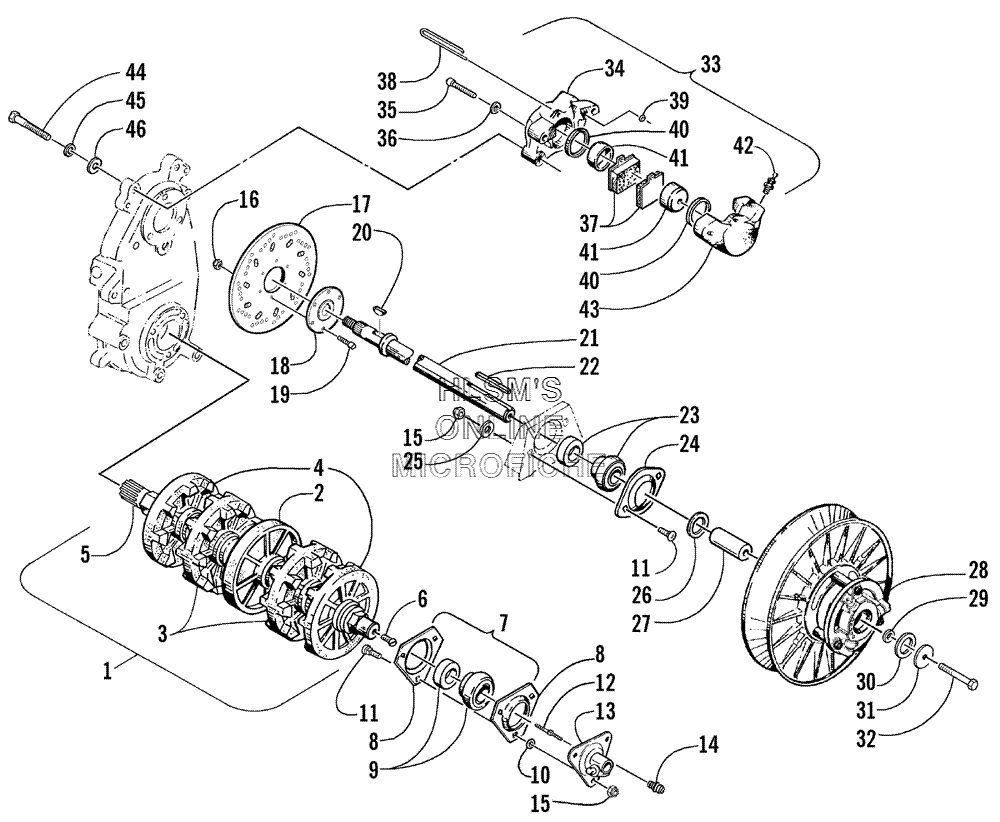

DRIVE TRAIN SHAFTS AND BRAKE ASSY. для Arctic Cat BEARCAT WIDE TRACK (USA) - 2002 года выпуска
-
№АртикулНазвание
-
10728-035 TRACK DRIVE ASSY. (INC. 2, 6)TRACK DRIVE ASSY. (INC. 2, 6)
-
20602-884 IDLER (CENTER)IDLER (CENTER)
-
30602-864 SPROCKET, DRIVE, INNERSPROCKET, DRIVE, INNER
-
40602-865 SPROCKET, DRIVE, OUTERSPROCKET, DRIVE, OUTER
-
50602-860 DRIVESHAFTDRIVESHAFT
-
60120-247 BUSHING, DRIVEBUSHING, DRIVE
-
70702-392 PLATE, FLANGE, BEARING ASSY. (INC. 8, 10 AND THREE NO. 11)PLATE, FLANGE, BEARING ASSY. (INC. 8, 10 AND THREE NO. 11)
-
80602-198 PLATE, FLANGEPLATE, FLANGE
-
91602-110 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
100623-810 RING, SOLDERRING, SOLDER
-
118011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
120602-154 CABLE, ADAPTERCABLE, ADAPTER
-
130620-031 ADAPTER, DRIVE (INC. 14)ADAPTER, DRIVE (INC. 14)
-
140104-062 FITTING, GREASEFITTING, GREASE
-
158040-426 NUT, LOCKNUT, LOCK
-
160123-430 NUT, LOCKNUT, LOCK
-
170602-951 DISC, BRAKEDISC, BRAKE
-
180602-952 HUB, BRAKEHUB, BRAKE
-
190623-433 SCREW, CAP, SOCKET HEADSCREW, CAP, SOCKET HEAD
-
200602-598 KEYKEY
-
210702-362 SHAFT, DRIVENSHAFT, DRIVEN
-
220602-902 KEYKEY
-
231602-099 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
240602-233 PLATE, FLANGEPLATE, FLANGE
-
258050-242 WASHERWASHER
-
260623-118 WASHERWASHER
-
260623-119 WASHERWASHER
-
270648-059 SHAFT, STUBSHAFT, STUB
-
280726-103 CLUTCH, DRIVEN (INTER)CLUTCH, DRIVEN (INTER)
-
290123-053 WASHERWASHER
-
300123-694 WASHERWASHER
-
310123-019 WASHERWASHER
-
328002-144 SCREW, CAPSCREW, CAP
-
330602-829 CALIPER, BRAKE, ASSY. (INC. 34, 43)CALIPER, BRAKE, ASSY. (INC. 34, 43)
-
358005-679 SCREW, CAPSCREW, CAP
-
368050-272 WASHERWASHER
-
370702-229 PAD, BRAKE, SET (INC. 38)PAD, BRAKE, SET (INC. 38)
-
380602-706 PIN, RETAININGPIN, RETAINING
-
390602-729 O-RING, HOUSINGO-RING, HOUSING
-
400602-583 O-RINGO-RING
-
410602-708 PISTONPISTON
-
420602-707 SCREW, BLEED, ASSY.SCREW, BLEED, ASSY.
-
448002-316 BOLT, MOUNTING, BRAKE CALIPERBOLT, MOUNTING, BRAKE CALIPER
-
458051-307 WASHER, LOCKWASHER, LOCK
-
468050-307 WASHERWASHER
