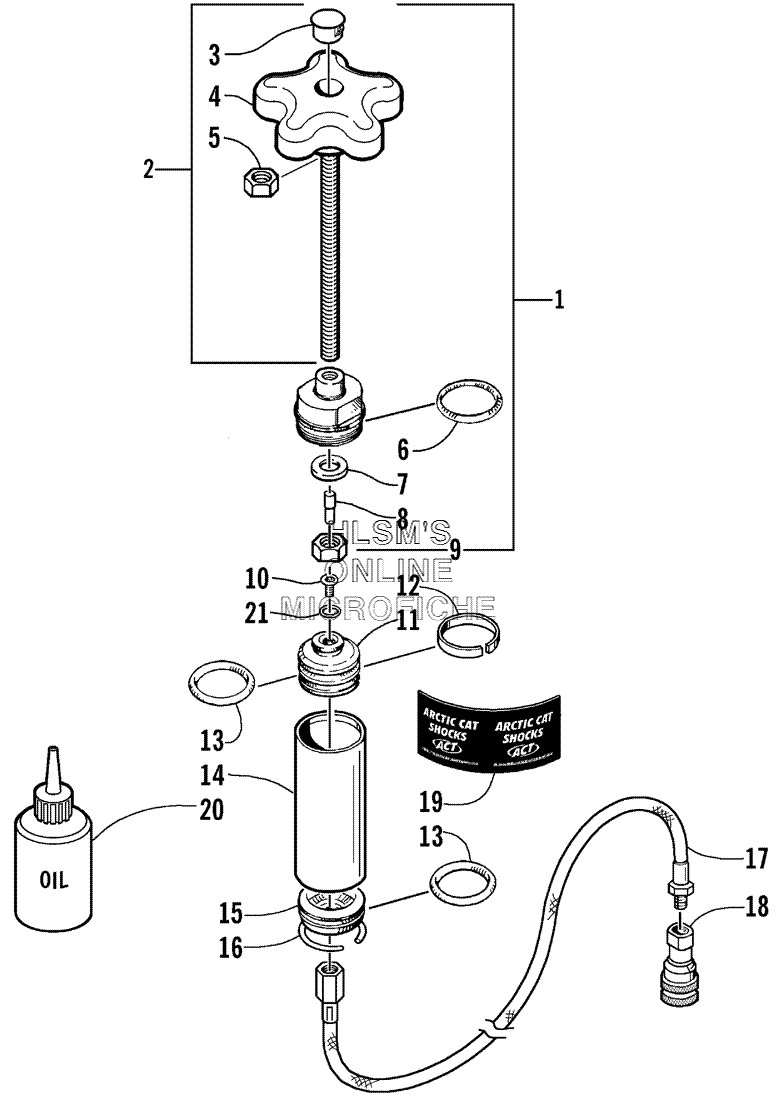

REMOTE SHOCK LIMITER ASSY. (LE) для Arctic Cat ZRT 600 LE - 2001 года выпуска
-
№АртикулНазвание
-
-0704-485 REMOTE SHOCK COMPLETE ASSY.REMOTE SHOCK COMPLETE ASSY.
-
10704-477 END CAP/ADJUSTER KNOB ASSY. (INC. 2, 9)END CAP/ADJUSTER KNOB ASSY. (INC. 2, 9)
-
20704-478 KNOB, END CAP, ASSY. (INC. 3, 5)KNOB, END CAP, ASSY. (INC. 3, 5)
-
30623-537 PLUG, HOLEPLUG, HOLE
-
41604-526 KNOB, ADJUSTERKNOB, ADJUSTER
-
58042-486 NUTNUT
-
61604-271 O-RINGO-RING
-
71604-273 WASHERWASHER
-
81604-521 PIN, DRIVEPIN, DRIVE
-
91604-522 NUT, STOP, ADJUSTER KNOBNUT, STOP, ADJUSTER KNOB
-
100623-697 SCREW, RELIEFSCREW, RELIEF
-
111604-276 PISTON, INTERNAL FLOATINGPISTON, INTERNAL FLOATING
-
121604-278 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
131604-277 O-RINGO-RING
-
141604-553 BODY, ADJUSTER, RESERVOIRBODY, ADJUSTER, RESERVOIR
-
151604-535 END CAP, RESERVOIREND CAP, RESERVOIR
-
161604-525 RETAINER, WIRERETAINER, WIRE
-
171604-531 HOSE, ADJUSTER/COUPLER, 38 IN.HOSE, ADJUSTER/COUPLER, 38 IN.
-
181604-537 COUPLERCOUPLER
-
193611-691 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
-
201639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
211604-279 O-RINGO-RING
