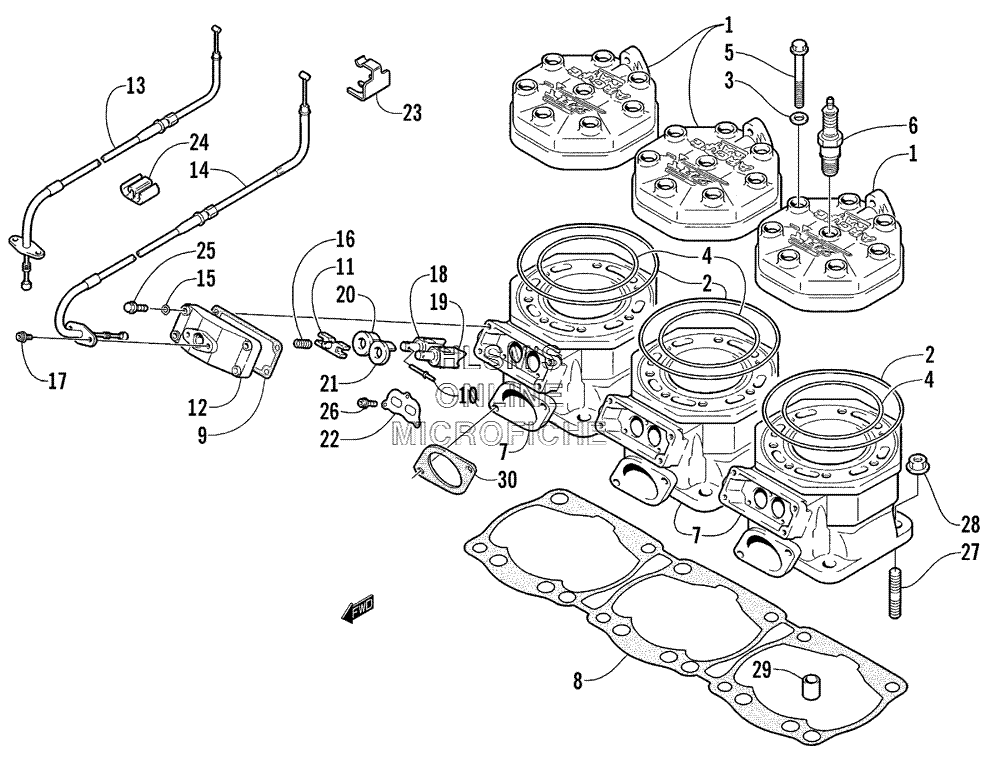

CYLINDER AND HEAD ASSY. для Arctic Cat ZRT 600 LE - 2001 года выпуска
-
№АртикулНазвание
-
13005-830 HEAD, CYLINDERHEAD, CYLINDER
-
23003-226 O-RING, HEAD, OUTERO-RING, HEAD, OUTER
-
33003-227 O-RING, HEAD BOLTO-RING, HEAD BOLT
-
43003-634 O-RING, HEAD, INNERO-RING, HEAD, INNER
-
53004-948 BOLT, HEADBOLT, HEAD
-
60217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
73005-786 CYLINDERCYLINDER
-
83005-016 GASKET, CYLINDERGASKET, CYLINDER
-
93005-283 GASKET, COVER, CYLINDERGASKET, COVER, CYLINDER
-
103005-284 PIN, VALVE, EXHAUSTPIN, VALVE, EXHAUST
-
113005-655 STOPPER, VALVE, EXHAUSTSTOPPER, VALVE, EXHAUST
-
123005-662 COVER, CYLINDERCOVER, CYLINDER
-
133005-835 CABLE, VALVE, EXHAUSTCABLE, VALVE, EXHAUST
-
143005-836 CABLE, VALVE, EXHAUSTCABLE, VALVE, EXHAUST
-
153005-651 O-RINGO-RING
-
163005-736 SPRINGSPRING
-
173005-744 BOLTBOLT
-
183005-831 VALVE, EXHAUST (RIGHT)VALVE, EXHAUST (RIGHT)
-
193005-832 VALVE, EXHAUST (LEFT)VALVE, EXHAUST (LEFT)
-
203005-894 GUIDE, VALVE, EXHAUST (RIGHT)GUIDE, VALVE, EXHAUST (RIGHT)
-
213005-895 GUIDE, VALVE, EXHAUST (LEFT)GUIDE, VALVE, EXHAUST (LEFT)
-
223005-585 PLATE, VALVE, EXHAUSTPLATE, VALVE, EXHAUST
-
233005-837 HOLDER, CABLE, EXHAUST VALVEHOLDER, CABLE, EXHAUST VALVE
-
243005-808 CLAMPCLAMP
-
253004-426 BOLTBOLT
-
263005-564 BOLTBOLT
-
273004-779 BOLT, STUD, CYLINDERBOLT, STUD, CYLINDER
-
283004-326 NUT, CYLINDERNUT, CYLINDER
-
293004-822 PIN, DOWELPIN, DOWEL
-
303003-503 GASKET, EXHAUSTGASKET, EXHAUST
