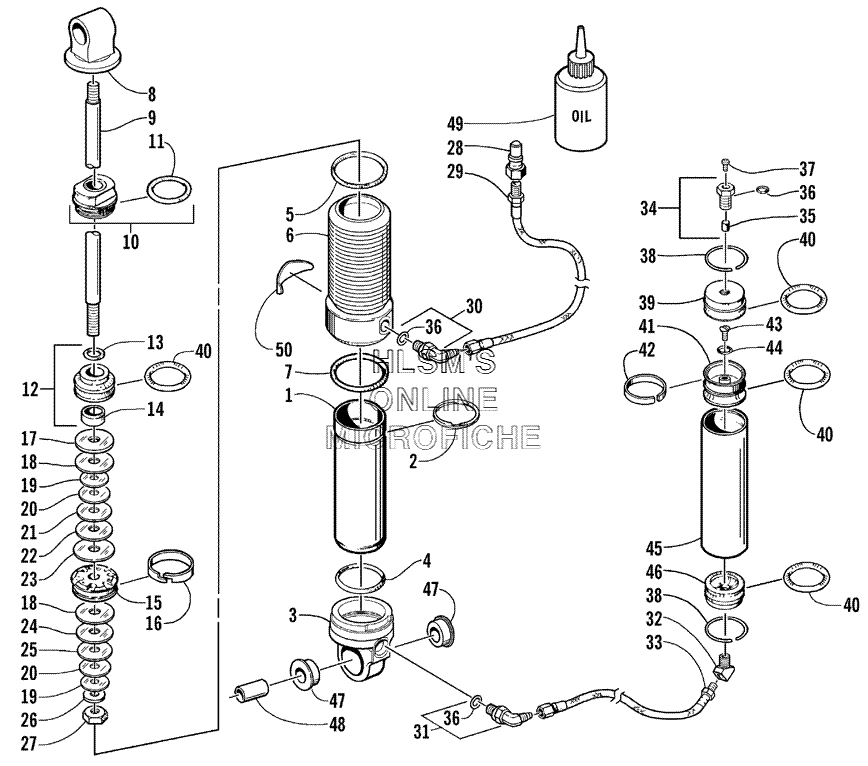

REAR SUSPENSION FRONT ARM SHOCK ABSORBER (LE) для Arctic Cat ZRT 600 LE - 2001 года выпуска`
-
№АртикулНазвание
-
-0704-556 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
-0637-101 REBUILD KITREBUILD KIT
-
11604-546 BODY, SHOCKBODY, SHOCK
-
20603-911 RING, RETAINING, SPIRALRING, RETAINING, SPIRAL
-
31604-524 END CAP, SHOCKEND CAP, SHOCK
-
41604-280 O-RINGO-RING
-
51604-528 O-RING, ADJUSTER, BOTTOMO-RING, ADJUSTER, BOTTOM
-
61604-517 ADJUSTER SLEEVE, EASY ADJUSTADJUSTER SLEEVE, EASY ADJUST
-
71604-529 O-RING, ADJUSTER, TOPO-RING, ADJUSTER, TOP
-
81604-796 EYELET, SHOCKEYELET, SHOCK
-
91604-545 ROD, SHOCKROD, SHOCK
-
100704-386 END CAP, SHOCK (INC. 11)END CAP, SHOCK (INC. 11)
-
111604-271 O-RINGO-RING
-
120704-476 PISTON, SEPARATOR, ASSY. (INC. 13, 14 AND ONE NO. 40)PISTON, SEPARATOR, ASSY. (INC. 13, 14 AND ONE NO. 40)
-
131604-527 O-RING, INNERO-RING, INNER
-
150603-953 PISTON, 0.093 IN., ORIFICEPISTON, 0.093 IN., ORIFICE
-
161604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
171604-272 WASHER, TOP OUTWASHER, TOP OUT
-
181603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
191603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
201603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
211603-076 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
221603-096 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
231603-136 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
241603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
251603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
261604-273 WASHER, BACKUPWASHER, BACKUP
-
270623-696 NUT, LOCKNUT, LOCK
-
281604-536 COUPLERCOUPLER
-
291604-530 HOSE, ADJUSTER/SHOCK, 30 IN.HOSE, ADJUSTER/SHOCK, 30 IN.
-
301604-552 FITTING, ELBOW (INC. ONE NO. 36)FITTING, ELBOW (INC. ONE NO. 36)
-
311604-533 ELBOW, FLARE TUBE (INC. ONE NO. 36)ELBOW, FLARE TUBE (INC. ONE NO. 36)
-
321604-534 ELBOW, FLARE TUBE, 45°ELBOW, FLARE TUBE, 45°
-
331604-532 HOSE, RESERVOIR/SHOCKHOSE, RESERVOIR/SHOCK
-
340704-383 VALVE, PRESSURE, ASSY. (INC. 35 AND ONE NO. 36)VALVE, PRESSURE, ASSY. (INC. 35 AND ONE NO. 36)
-
361604-284 O-RING, PRESSURE VALVEO-RING, PRESSURE VALVE
-
370624-433 SCREW, MACHINESCREW, MACHINE
-
381604-525 RETAINER, WIRERETAINER, WIRE
-
391604-520 END CAP, RESERVOIR (VALVE SIDE)END CAP, RESERVOIR (VALVE SIDE)
-
401604-277 O-RINGO-RING
-
411604-276 PISTON, INTERNAL FLOATINGPISTON, INTERNAL FLOATING
-
421604-278 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
430623-697 SCREW, RELIEFSCREW, RELIEF
-
441604-279 O-RING, RELIEF SCREWO-RING, RELIEF SCREW
-
451604-554 BODY, RESERVOIRBODY, RESERVOIR
-
461604-535 END CAP, RESERVOIREND CAP, RESERVOIR
-
471604-287 BUSHING, SHOCKBUSHING, SHOCK
-
481604-289 SLEEVE, EYELETSLEEVE, EYELET
-
491639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
503611-007 DECAL, WARNINGDECAL, WARNING
