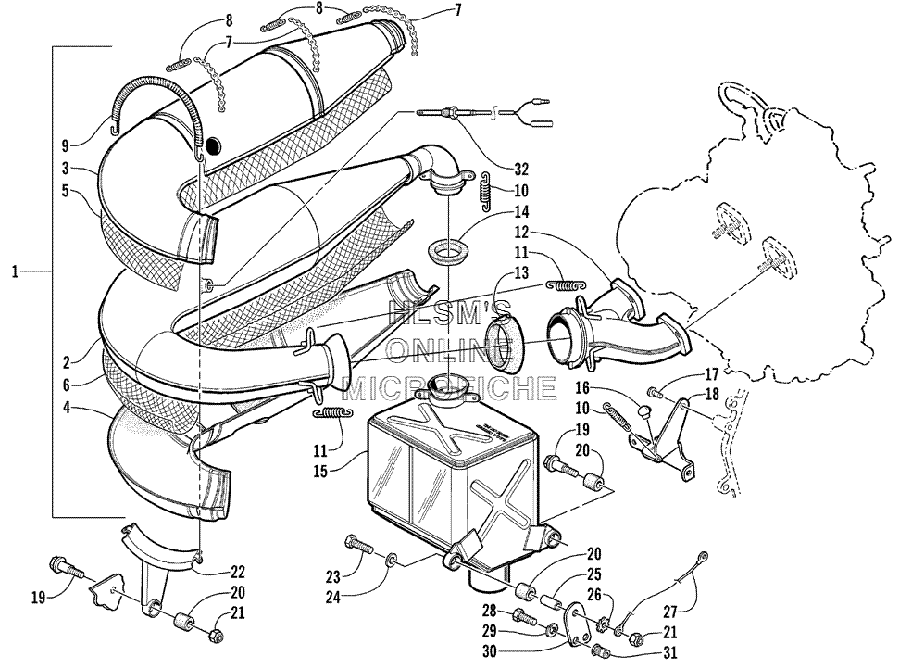

EXHAUST ASSY. для Arctic Cat ZR 500 (USA) - 2001 года выпуска

№

Артикул

Название
1

0712-443 EXPANSION CHAMBER ASSY. (INC. 2, 8)

EXPANSION CHAMBER ASSY. (INC. 2, 8)
2

0712-428 CHAMBER, EXPANSION

CHAMBER, EXPANSION
3

1612-280 COVER (UPPER)

COVER (UPPER)
4

1612-281 COVER (LOWER)

COVER (LOWER)
5

1612-385 INSULATION (UPPER)

INSULATION (UPPER)
6

1612-386 INSULATION (LOWER)

INSULATION (LOWER)
7

0624-526 TIE, PERFORATED BAND (5 FT)

TIE, PERFORATED BAND (5 FT)
8

1612-178 SPRING, EXTENSION

SPRING, EXTENSION
9

0612-027 SPRING, EXTENSION

SPRING, EXTENSION
10

0612-471 SPRING, EXHAUST

SPRING, EXHAUST
11

0612-820 SPRING, EXTENSION

SPRING, EXTENSION
12

0712-731 MANIFOLD, EXHAUST

MANIFOLD, EXHAUST
13

1612-014 GASKET, EXHAUST

GASKET, EXHAUST
14

0612-693 GASKET, EXHAUST, TAILPIPE

GASKET, EXHAUST, TAILPIPE
15

0712-395 RESONATOR

RESONATOR
16

0612-111 BUMPER, MOLDED, RUBBER

BUMPER, MOLDED, RUBBER
17

0623-765 SCREW, SELF, TAPPING

SCREW, SELF, TAPPING
18

1612-169 BRACKET, MOUNTING, RESONATOR

BRACKET, MOUNTING, RESONATOR
19

0623-856 SCREW, MACHINE, HEX SHOULDER

SCREW, MACHINE, HEX SHOULDER
20

0612-107 BUSHING, RESONATOR, RUBBER

BUSHING, RESONATOR, RUBBER
21

8040-366 NUT, LOCK

NUT, LOCK
22

0712-706 BRACKET, SUPPORT

BRACKET, SUPPORT
23

8002-044 SCREW, CAP

SCREW, CAP
24

0623-184 WASHER

WASHER
25

0612-108 SPACER, RESONATOR

SPACER, RESONATOR
26

8053-212 WASHER, LOCK, EXTERNAL TOOTH

WASHER, LOCK, EXTERNAL TOOTH
27

0686-126 WIRE, GROUND

WIRE, GROUND
28

8002-040 SCREW, CAP

SCREW, CAP
29

8051-217 WASHER, LOCK

WASHER, LOCK
30

0612-784 BRACKET, MOUNTING, RESONATOR

BRACKET, MOUNTING, RESONATOR
31

0623-582 INSERT

INSERT
32

0630-145 SENSOR, TEMPERATURE, EXHAUST

SENSOR, TEMPERATURE, EXHAUST
