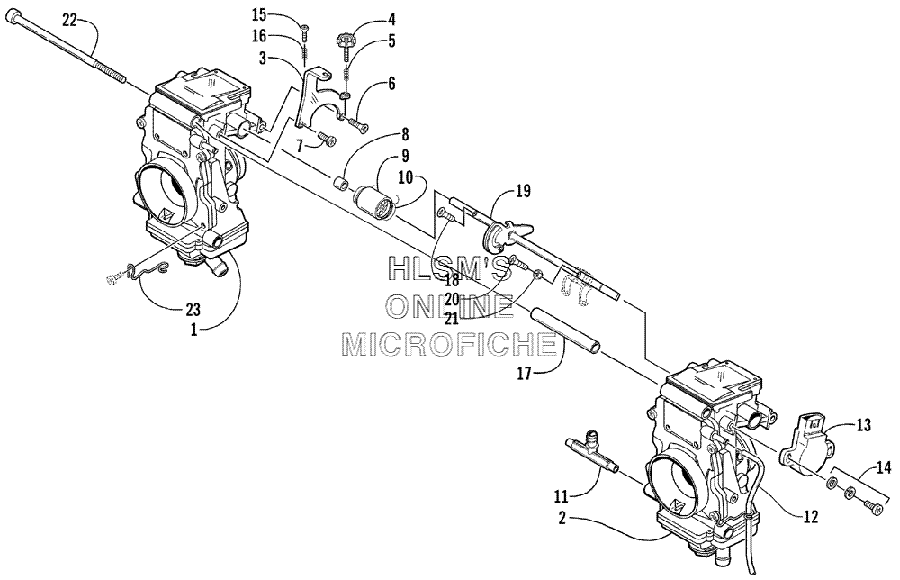

CARBURETOR - EXTERNAL PARTS для Arctic Cat ZR 500 (USA) - 2001 года выпуска`
-
№АртикулНазвание
-
16506-288 CARBURETOR ASSY. (LEFT) (INC. 3, 7 AND 15, 16)CARBURETOR ASSY. (LEFT) (INC. 3, 7 AND 15, 16)
-
26506-289 CARBURETOR ASSY. (RIGHT)CARBURETOR ASSY. (RIGHT)
-
36506-058 BRACKETBRACKET
-
46506-061 SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
56506-062 SPRINGSPRING
-
66506-063 SCREWSCREW
-
76506-064 SCREWSCREW
-
86506-048 SPACERSPACER
-
96506-049 SLEEVE, SPRINGSLEEVE, SPRING
-
106506-135 SPRING, THROTTLESPRING, THROTTLE
-
116506-140 T, FITTINGT, FITTING
-
126506-133 HOSEHOSE
-
136506-074 THROTTLE POSITION SENSOR ASSY.THROTTLE POSITION SENSOR ASSY.
-
146506-075 SCREW W/WASHERSSCREW W/WASHERS
-
156506-134 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
166506-056 SPRINGSPRING
-
176506-044 SPACERSPACER
-
186506-046 SCREWSCREW
-
196506-179 SHAFT, THROTTLE LEVER, ASSY.SHAFT, THROTTLE LEVER, ASSY.
-
206506-042 SCREW, LEVER RINGSCREW, LEVER RING
-
216506-041 RING, LEVERRING, LEVER
-
226506-065 BOLTBOLT
-
236506-131 CLIP, HOSECLIP, HOSE
