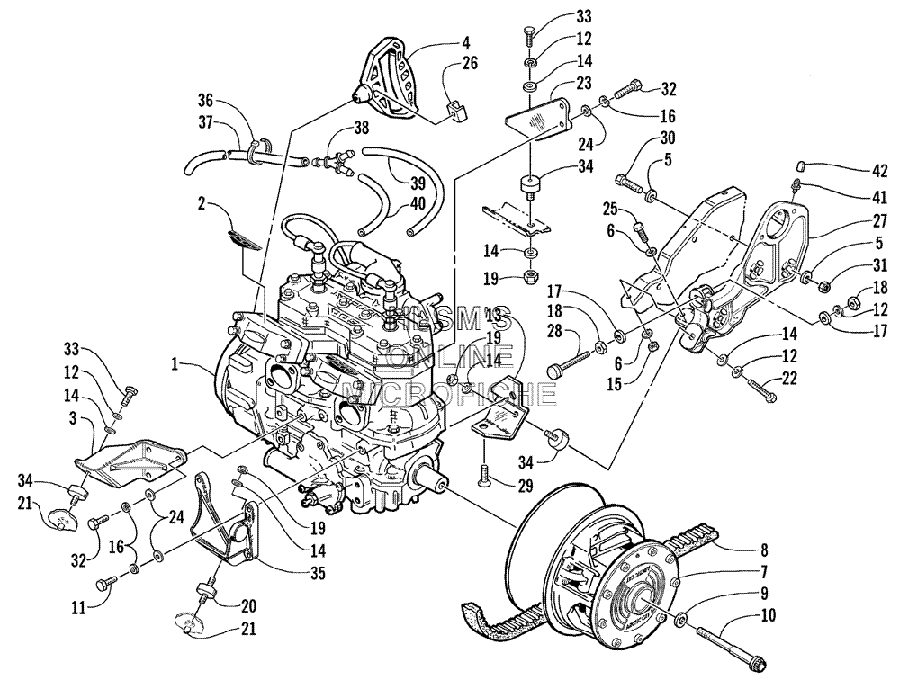

ENGINE AND RELATED PARTS для Arctic Cat ZR 500 (USA) - 2001 года выпуска`
-
№АртикулНазвание
-
10662-280 ENGINE, AU50L5ENGINE, AU50L5
-
23611-967 DECAL, "APV"DECAL, "APV"
-
30708-102 BRACKET, ENGINE MOUNTING (RIGHT/FRONT)BRACKET, ENGINE MOUNTING (RIGHT/FRONT)
-
40636-363 HANDLE, RECOILHANDLE, RECOIL
-
50623-044 WASHERWASHER
-
68050-222 WASHERWASHER
-
70725-330 CLUTCH, DRIVECLUTCH, DRIVE
-
80627-020 BELT, DRIVEBELT, DRIVE
-
90623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
100623-804 BOLT, CLUTCHBOLT, CLUTCH
-
118012-134 SCREW, CAPSCREW, CAP
-
128051-277 WASHER, LOCKWASHER, LOCK
-
130708-120 BRACKET, ENGINE MOUNTING (LEFT/;REAR)BRACKET, ENGINE MOUNTING (LEFT/;REAR)
-
148050-277 WASHERWASHER
-
158040-366 NUT, LOCKNUT, LOCK
-
168051-247 WASHER, LOCKWASHER, LOCK
-
178050-282 WASHERWASHER
-
188042-516 NUTNUT
-
198040-486 NUT, LOCKNUT, LOCK
-
200608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
210623-699 INSERT, THREADEDINSERT, THREADED
-
228002-226 SCREW, CAPSCREW, CAP
-
230708-104 BRACKET, ENGINE MOUNTING (RIGHT/;REAR)BRACKET, ENGINE MOUNTING (RIGHT/;REAR)
-
248050-247 WASHERWASHER
-
258002-041 SCREW, CAPSCREW, CAP
-
260606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
270708-140 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 41, 42)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 41, 42)
-
280608-299 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
290623-095 SCREW, MACHINESCREW, MACHINE
-
308002-225 SCREW, CAPSCREW, CAP
-
310623-026 NUT, LOCKNUT, LOCK
-
328012-132 SCREW, CAPSCREW, CAP
-
338002-222 SCREW, CAPSCREW, CAP
-
340608-217 MOUNT, ENGINEMOUNT, ENGINE
-
350708-103 BRACKET, ENGINE MOUNTING (LEFT/;FRONT)BRACKET, ENGINE MOUNTING (LEFT/;FRONT)
-
360123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
370610-365 HOSE, DRAIN, VEV (EXIT)HOSE, DRAIN, VEV (EXIT)
-
380670-875 Y, FITTINGY, FITTING
-
390610-364 HOSE, DRAIN, VEV (PTO)HOSE, DRAIN, VEV (PTO)
-
400610-363 HOSE, DRAIN, VEV (MAGNETO)HOSE, DRAIN, VEV (MAGNETO)
-
410623-899 FITTING, GREASEFITTING, GREASE
-
420623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
