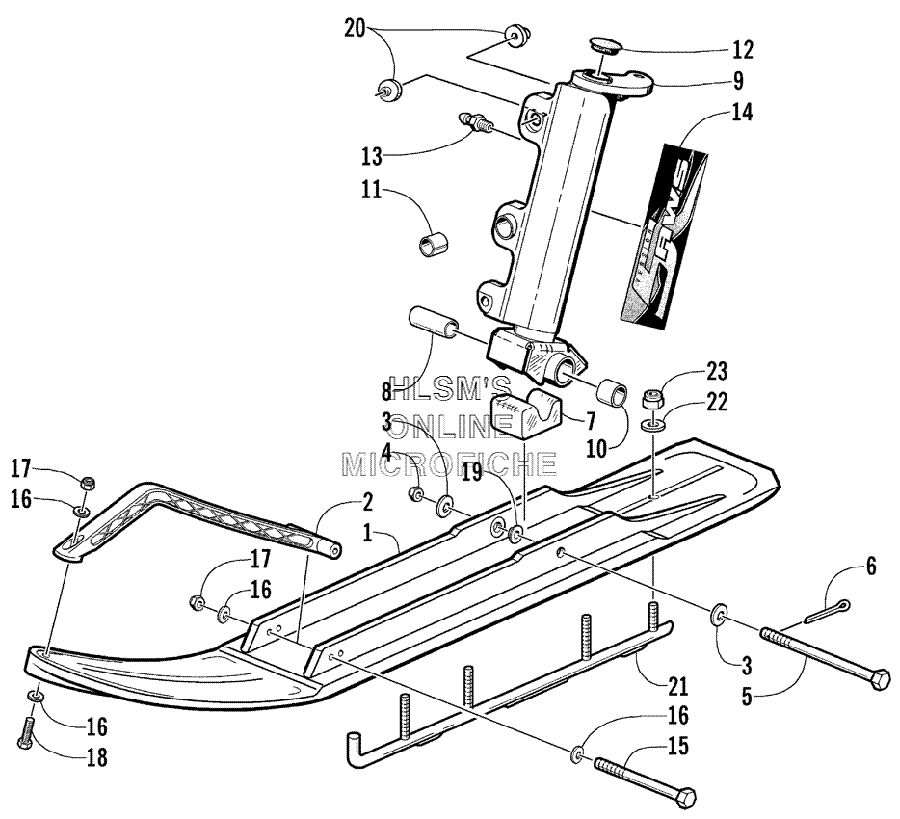

SKI AND SPINDLE ASSY. для Arctic Cat ZR 440 SNO PRO (SNO-CROSS - USA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1603-511 SKI, PLASTIC
    SKI, PLASTIC
  • 2
    1603-512 HANDLE, PLASTIC
    HANDLE, PLASTIC
  • 3
    0623-929 WASHER
    WASHER
  • 4
    0623-931 NUT, LOCK
    NUT, LOCK
  • 5
    0623-930 SCREW, CAP
    SCREW, CAP
  • 6
    0623-947 PIN, COTTER
    PIN, COTTER
  • 7
    1603-514 BUMPER, RUBBER
    BUMPER, RUBBER
  • 8
    0603-034 AXLE, SPINDLE
    AXLE, SPINDLE
  • 9
    0703-660 SPINDLE, STEERING (RIGHT) (INC. 10, 11, 13, AND 20)
    SPINDLE, STEERING (RIGHT) (INC. 10, 11, 13, AND 20)
  • 9
    0703-661 SPINDLE, STEERING (LEFT) (INC. 10, 11, 13, AND 20)
    SPINDLE, STEERING (LEFT) (INC. 10, 11, 13, AND 20)
  • 10
    0603-158 BEARING
    BEARING
  • 11
    0603-083 BEARING
    BEARING
  • 12
    0603-049 CAP, SPINDLE
    CAP, SPINDLE
  • 13
    0623-010 FITTING, GREASE
    FITTING, GREASE
  • 14
    4611-076 DECAL, "AWS", SPINDLE (RIGHT)
    DECAL, "AWS", SPINDLE (RIGHT)
  • 14
    4611-077 DECAL, "AWS", SPINDLE (LEFT)
    DECAL, "AWS", SPINDLE (LEFT)
  • 15
    0623-925 SCREW, CAP
    SCREW, CAP
  • 16
    0623-927 WASHER
    WASHER
  • 17
    0623-928 NUT, LOCK
    NUT, LOCK
  • 18
    0623-926 SCREW, CAP
    SCREW, CAP
  • 19
    1603-513 INSERT
    INSERT
  • 20
    0603-647 INSERT, SPINDLE
    INSERT, SPINDLE
  • 21
    2639-084 WEARBAR SET, 6 IN. (1/2 IN. BAR)
    WEARBAR SET, 6 IN. (1/2 IN. BAR)
  • 21
    1639-805 WEARBAR SET, 8 IN. (5/8 IN. BAR)
    WEARBAR SET, 8 IN. (5/8 IN. BAR)
  • 21
    2639-086 WEARBAR SET, 8 IN. (COMPETITION)
    WEARBAR SET, 8 IN. (COMPETITION)
  • 21
    1639-806 WEARBAR SET, 10 IN. (5/8 IN. BAR)
    WEARBAR SET, 10 IN. (5/8 IN. BAR)
  • 21
    2639-087 WEARBAR SET, 10 IN. (COMPETITION)
    WEARBAR SET, 10 IN. (COMPETITION)
  • 22
    8050-277 WASHER
    WASHER
  • 23
    8040-486 NUT, LOCK
    NUT, LOCK
