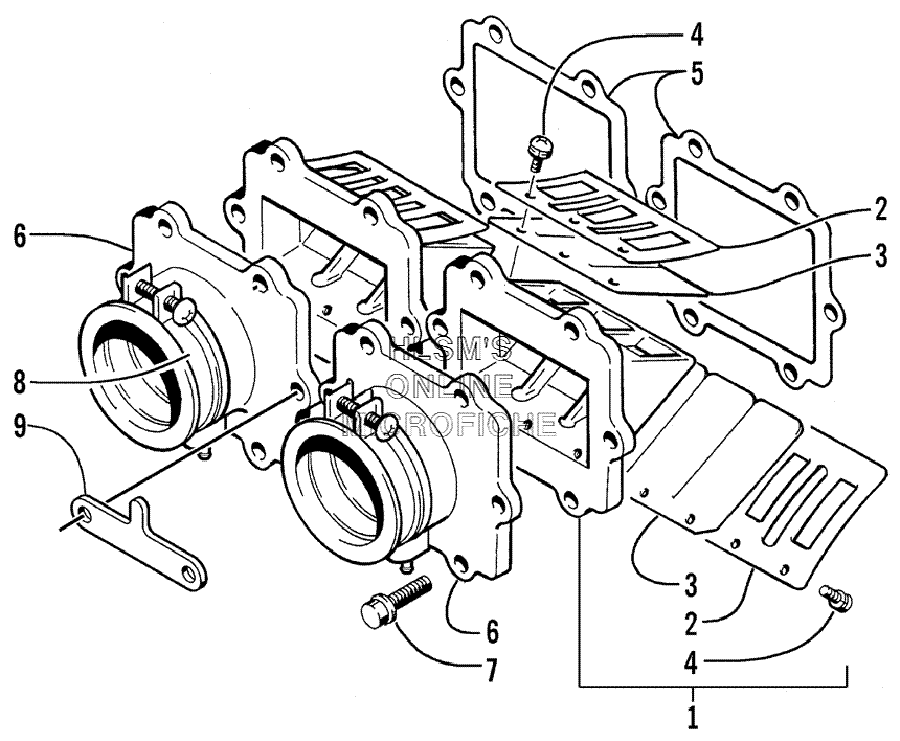

REED VALVE ASSY. для Arctic Cat ZR 440 SNO PRO (SNO-CROSS - USA) - 2001 года выпуска
-
№АртикулНазвание
-
13005-124 VALVE, REED, ASSY. (INC. 2, 4)VALVE, REED, ASSY. (INC. 2, 4)
-
23004-176 STOPPER, REED VALVESTOPPER, REED VALVE
-
33004-177 VALVE, REEDVALVE, REED
-
43004-506 SCREW, REED VALVESCREW, REED VALVE
-
53008-076 GASKET, REED VALVEGASKET, REED VALVE
-
63005-329 FLANGE, INTAKE, ASSY.FLANGE, INTAKE, ASSY.
-
73004-376 SCREW, MACHINESCREW, MACHINE
-
83004-212 CLAMP, INTAKE FLANGECLAMP, INTAKE FLANGE
-
91606-447 BRACKET, MOUNTING, AIR SILENCER, ENGINEBRACKET, MOUNTING, AIR SILENCER, ENGINE
