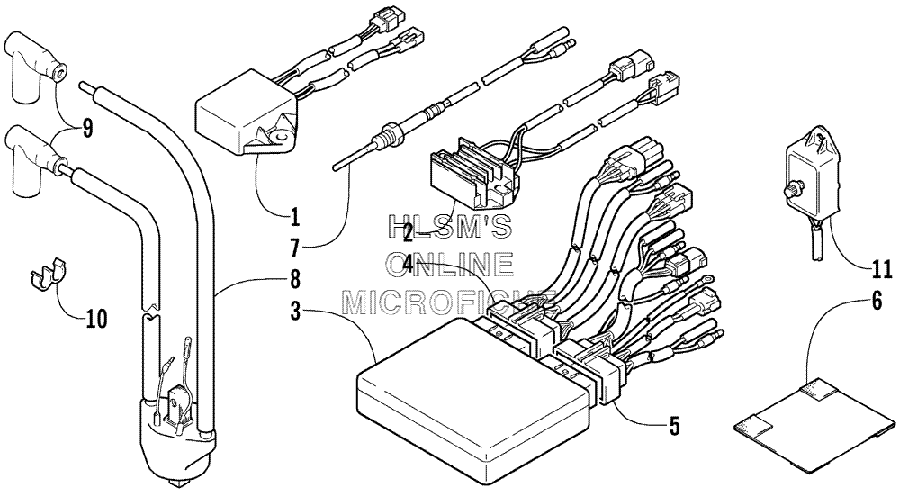

ELECTRICAL для Arctic Cat ZR 440 SNO PRO (SNO-CROSS - USA) - 2001 года выпуска
-
№АртикулНазвание
-
13005-668 CONDENSER, EXHAUST VALVECONDENSER, EXHAUST VALVE
-
23005-891 REGULATOR, EXHAUST VALVEREGULATOR, EXHAUST VALVE
-
33005-806 CDI UNITCDI UNIT
-
43005-940 HARNESS, CDI UNITHARNESS, CDI UNIT
-
53005-942 HARNESS, CDI UNITHARNESS, CDI UNIT
-
63003-474 COVER, CONNECTORCOVER, CONNECTOR
-
73005-735 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
83005-941 COIL, IGNITION, ASSY.COIL, IGNITION, ASSY.
-
93003-737 CAP, SPARK PLUG, ASSY.CAP, SPARK PLUG, ASSY.
-
103005-387 CLAMPCLAMP
-
113005-932 UNIT, TIMING CONTROLUNIT, TIMING CONTROL
