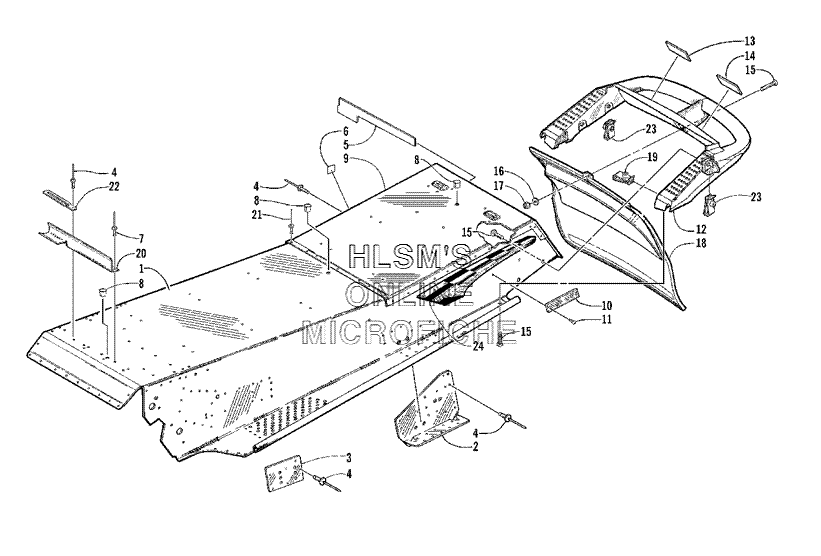

TUNNEL AND REAR BUMPER для Arctic Cat Z 440 (ES) - 2001 года выпуска`
-
№АртикулНазвание
-
10718-938 TUNNEL ASSEMBLY (INC 2)TUNNEL ASSEMBLY (INC 2)
-
21706-078 BRACKET, SUSPENSION MOUNTING - RIGHT REARBRACKET, SUSPENSION MOUNTING - RIGHT REAR
-
21706-079 BRACKET, SUSPENSION MOUNTING - LEFT REARBRACKET, SUSPENSION MOUNTING - LEFT REAR
-
30616-965 PLATE, SUSPENSION MOUNTING - FRONTPLATE, SUSPENSION MOUNTING - FRONT
-
48060-506 RIVETRIVET
-
53611-930 DECAL, TUNNEL - REARDECAL, TUNNEL - REAR
-
60411-053 DECAL, CEDECAL, CE
-
70623-166 RIVETRIVET
-
80623-562 PLUG, HOLEPLUG, HOLE
-
91606-497 PLATE, END - REAR TUNNELPLATE, END - REAR TUNNEL
-
100606-029 REFLECTOR, REAR - REDREFLECTOR, REAR - RED
-
110623-269 CLIP, RETAININGCLIP, RETAINING
-
121606-200 BUMPER, REARBUMPER, REAR
-
131611-567 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
141611-566 DECAL, WARNING - TOWING (ENGINE)DECAL, WARNING - TOWING (ENGINE)
-
158017-580 SCREW, MACHINESCREW, MACHINE
-
168050-217 WASHERWASHER
-
178040-366 NUT, LOCKNUT, LOCK
-
181606-202 SNOWFLAPSNOWFLAP
-
181606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
190623-427 NUT, UNUT, U
-
200607-488 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
218060-704 RIVETRIVET
-
223002-964 CLAMP, WIRECLAMP, WIRE
-
230623-771 NUT, UNUT, U
-
243611-873 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
243611-874 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
