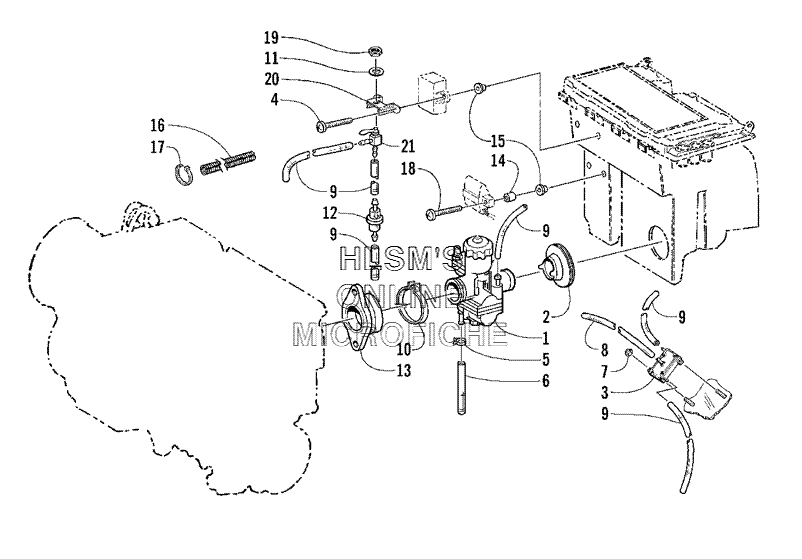

CARBURETOR AND FUEL PUMP ASSEMBLY для Arctic Cat Z 440 (ES) - 2001 года выпуска`
-
№АртикулНазвание
-
10770-499 CARBURETOR ASSEMBLY - VM34-567CARBURETOR ASSEMBLY - VM34-567
-
20670-726 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
30670-163 PUMP, FUELPUMP, FUEL
-
40623-833 SCREW, MACHINESCREW, MACHINE
-
50623-652 CLAMP, HOSECLAMP, HOSE
-
60610-279 HOSE, DRAINHOSE, DRAIN
-
78040-366 NUT, LOCKNUT, LOCK
-
80610-007 HOSE, IMPULSE - 25 FTHOSE, IMPULSE - 25 FT
-
90610-017 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
90610-008 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
100109-709 CLAMP, CARBURETOR FLANGECLAMP, CARBURETOR FLANGE
-
110623-288 WASHERWASHER
-
120510-335 FILTER, FUELFILTER, FUEL
-
130115-544 FLANGE, CARBURETORFLANGE, CARBURETOR
-
140670-210 SPACERSPACER
-
150623-529 INSERTINSERT
-
160716-546 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
170123-811 CABLE TIE - 4 IN.CABLE TIE - 4 IN.
-
180623-835 SCREW, MACHINESCREW, MACHINE
-
190623-287 NUTNUT
-
200670-837 BRACKET, MOUNTING - FUEL SHUT-OFF VALVEBRACKET, MOUNTING - FUEL SHUT-OFF VALVE
-
210670-144 VALVE, FUEL SHUT-OFF (INC 11 AND 19)VALVE, FUEL SHUT-OFF (INC 11 AND 19)
