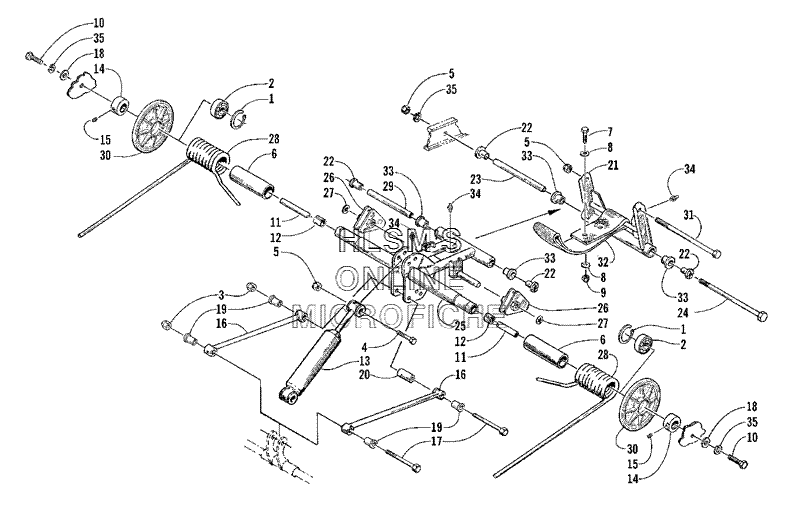

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat Z 440 (ES) - 2001 года выпуска`
-
№АртикулНазвание
-
10123-798 RING, RETAININGRING, RETAINING
-
20107-598 BEARINGBEARING
-
38041-486 NUT, LOCKNUT, LOCK
-
48002-227 SCREW, CAPSCREW, CAP
-
58040-486 NUT, LOCKNUT, LOCK
-
60114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
78002-042 SCREW, CAPSCREW, CAP
-
80623-184 WASHERWASHER
-
98040-366 NUT, LOCKNUT, LOCK
-
108012-224 SCREW, CAPSCREW, CAP
-
110114-163 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
120603-083 BEARINGBEARING
-
131604-455 SHOCK ABSORBER - REAR ARMSHOCK ABSORBER - REAR ARM
-
140604-601 COLLAR, LOCKCOLLAR, LOCK
-
150623-217 SCREW, SETSCREW, SET
-
160704-350 LINK, REAR SHOCKLINK, REAR SHOCK
-
178002-233 SCREW, CAPSCREW, CAP
-
180623-044 WASHERWASHER
-
191604-498 AXLE, LINK - FLANGEDAXLE, LINK - FLANGED
-
200604-298 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
210704-322 ARM, REAR (INC 33 AND 34)ARM, REAR (INC 33 AND 34)
-
220603-061 AXLE, SERRATEDAXLE, SERRATED
-
230604-194 TUBE, AXLETUBE, AXLE
-
240623-105 SCREW, CAPSCREW, CAP
-
250704-323 ARM, IDLER - GREEN (NC 12, 33 AND 34)ARM, IDLER - GREEN (NC 12, 33 AND 34)
-
261604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
261604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
270623-138 RING, RETAININGRING, RETAINING
-
280604-654 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
280604-655 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
290604-204 AXLE, IDLERAXLE, IDLER
-
300604-374 WHEEL, IDLER (INC 1-2)WHEEL, IDLER (INC 1-2)
-
310623-106 SCREW, CAPSCREW, CAP
-
321604-130 STRAP, LIMITERSTRAP, LIMITER
-
330104-386 BUSHINGBUSHING
-
340623-010 FITTING, GREASEFITTING, GREASE
-
358051-277 WASHER, LOCKWASHER, LOCK
