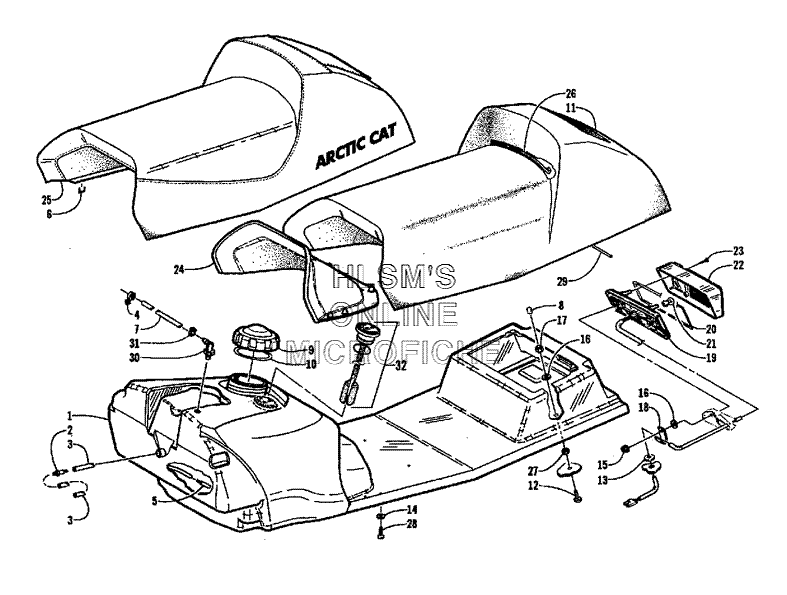

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLIES для Arctic Cat Z 440 (ES) - 2001 года выпуска`
-
№АртикулНазвание
-
-0718-940 COMPLETE SEAT ASSEMBLYCOMPLETE SEAT ASSEMBLY
-
10770-498 TANK, GAS/SEAT-BASE (INC 2-3, 5, 30 AND 32)TANK, GAS/SEAT-BASE (INC 2-3, 5, 30 AND 32)
-
20670-042 OUTLET, TANKOUTLET, TANK
-
30610-017 HOSE, 100 FTHOSE, 100 FT
-
30610-008 HOSE, 25 FTHOSE, 25 FT
-
40623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
60624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
70610-015 HOSE, VENT - 100 FTHOSE, VENT - 100 FT
-
70610-016 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
80623-404 CAP, PROTECTORCAP, PROTECTOR
-
91670-199 CAP, GAS TANK (INC 10)CAP, GAS TANK (INC 10)
-
101670-228 SEAL, GAS CAPSEAL, GAS CAP
-
111706-197 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
128002-042 SCREW, CAPSCREW, CAP
-
130617-136 SEAL, FOAM - SEAT-BASESEAL, FOAM - SEAT-BASE
-
148050-217 WASHERWASHER
-
150623-038 NUT, LOCKNUT, LOCK
-
160623-184 WASHERWASHER
-
178040-366 NUT, LOCKNUT, LOCK
-
183002-964 CLAMP, WIRECLAMP, WIRE
-
190609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
200609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
210109-460 BULBBULB
-
220609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
230609-093 SCREW, RETAININGSCREW, RETAINING
-
241606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
251706-222 COVER, SEATCOVER, SEAT
-
261606-150 WIRE, SEATWIRE, SEAT
-
278041-366 NUT, LOCKNUT, LOCK
-
280623-309 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
290606-057 WIRE, SEATWIRE, SEAT
-
300670-572 VENT, GAS TANKVENT, GAS TANK
-
310623-063 CLAMP, HOSECLAMP, HOSE
-
321670-241 GAUGE, FUEL W/GASKETGAUGE, FUEL W/GASKET
