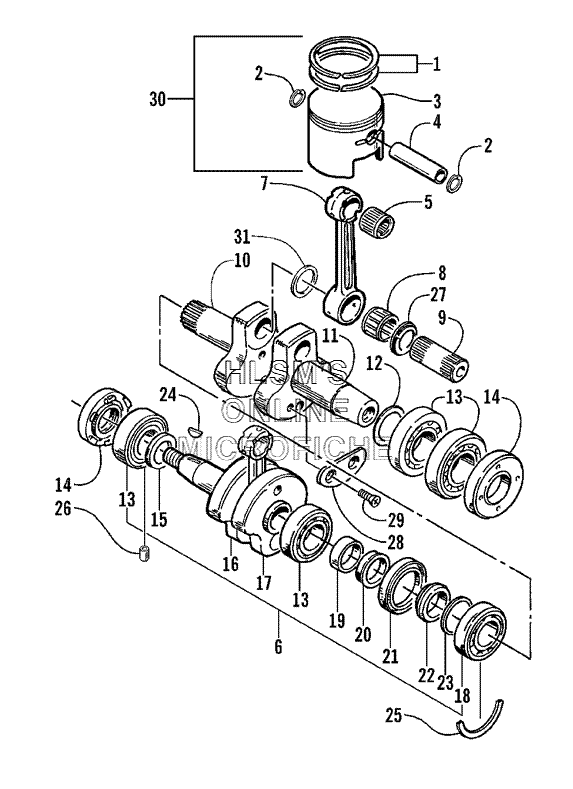

PISTON AND CRANKSHAFT для Arctic Cat Z 370 - 2001 года выпуска`
-
№АртикулНазвание
-
13004-825 RING SET, PISTONRING SET, PISTON
-
23003-537 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
43005-455 PIN, PISTONPIN, PISTON
-
53003-107 BEARING, PISTON PINBEARING, PISTON PIN
-
63005-457 CRANKSHAFT ASSEMBLY (INC 7-13 AND 15-23)CRANKSHAFT ASSEMBLY (INC 7-13 AND 15-23)
-
73005-456 ROD, CONNECTINGROD, CONNECTING
-
83003-744 BEARING, CRANK PINBEARING, CRANK PIN
-
93002-173 PIN, CRANKPIN, CRANK
-
103002-841 CRANKSHAFT - MIDDLECRANKSHAFT - MIDDLE
-
113005-345 CRANKSHAFT - LEFTCRANKSHAFT - LEFT
-
123002-025 WASHER - LEFTWASHER - LEFT
-
133002-624 BEARING, CRANKSHAFTBEARING, CRANKSHAFT
-
143002-717 SEAL, OILSEAL, OIL
-
153008-501 WASHERWASHER
-
163005-344 CRANKSHAFT - RIGHTCRANKSHAFT - RIGHT
-
173002-840 WHEEL, CRANKSHAFTWHEEL, CRANKSHAFT
-
183005-451 BEARINGBEARING
-
193002-827 SPACERSPACER
-
203005-373 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
213003-248 RETAINERRETAINER
-
223003-171 RACE, INNERRACE, INNER
-
233003-112 RING, CENTERRING, CENTER
-
243004-540 KEYKEY
-
253003-736 C-RING, CRANKSHAFTC-RING, CRANKSHAFT
-
263003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
273005-458 WASHER, CRANK PIN BEARINGWASHER, CRANK PIN BEARING
-
283004-746 BALANCERBALANCER
-
293004-284 SCREW, MACHINESCREW, MACHINE
-
303005-762 PISTON ASSEMBLY (INC 1-3)PISTON ASSEMBLY (INC 1-3)
-
313005-450 WASHER, CRANK PINWASHER, CRANK PIN
