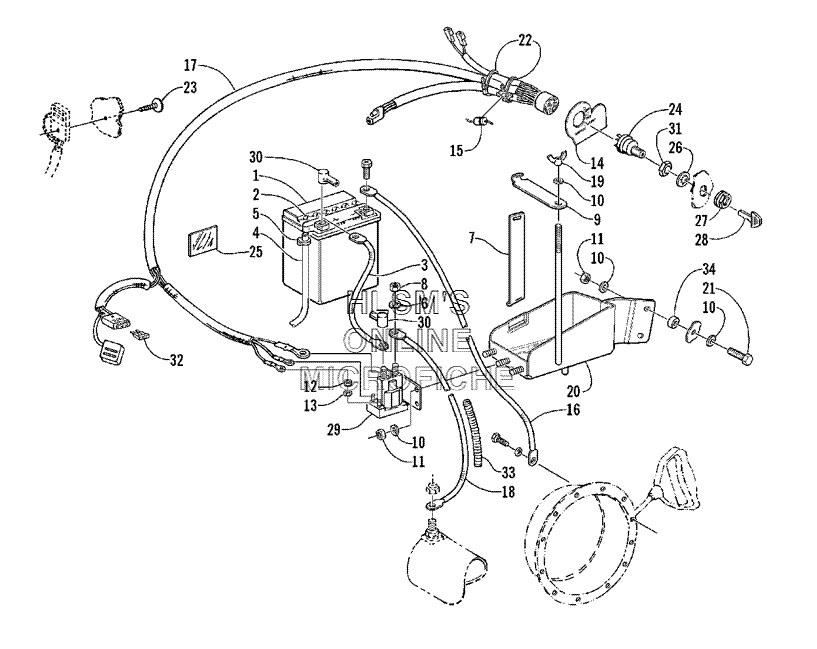

BATTERY- SOLENOID- AND CABLES для Arctic Cat Z 370 - 2001 года выпуска`
-
№АртикулНазвание
-
-1639-908 ELECTRIC START OPTIONAL KITELECTRIC START OPTIONAL KIT
-
10745-045 BATTERY (INC 2 AND 4-5)BATTERY (INC 2 AND 4-5)
-
20645-045 CAP, BATTERYCAP, BATTERY
-
30645-161 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
40645-263 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-152 CLAMP, HOSECLAMP, HOSE
-
68051-242 WASHER, LOCKWASHER, LOCK
-
70645-245 STRAP, BATTERYSTRAP, BATTERY
-
88043-452 NUTNUT
-
90645-243 STRAP, BATTERYSTRAP, BATTERY
-
108050-217 WASHERWASHER
-
118040-366 NUT, LOCKNUT, LOCK
-
128042-272 NUTNUT
-
138051-152 WASHER, LOCKWASHER, LOCK
-
142611-744 DECAL, CONSOLE SWITCH - RIGHTDECAL, CONSOLE SWITCH - RIGHT
-
150630-002 DIODE, CHARGINGDIODE, CHARGING
-
160645-080 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
170686-695 HARNESS, ELECTRIC STARTHARNESS, ELECTRIC START
-
180645-244 CABLE, SOLENOID/STARTER MOTORCABLE, SOLENOID/STARTER MOTOR
-
190623-325 NUT, WINGNUT, WING
-
200745-149 TRAY, BATTERYTRAY, BATTERY
-
218002-045 SCREW, CAPSCREW, CAP
-
220123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
230623-589 CLIP, RETAININGCLIP, RETAINING
-
240609-449 SWITCH, IGNITION (INC 28)SWITCH, IGNITION (INC 28)
-
250645-151 DECAL, WARNING - BATTERYDECAL, WARNING - BATTERY
-
260123-899 WASHER, IGNITIONWASHER, IGNITION
-
270609-113 NUT, RETAININGNUT, RETAINING
-
290645-196 SOLENOIDSOLENOID
-
290645-078 SOLENOIDSOLENOID
-
300645-019 BOOT, TERMINALBOOT, TERMINAL
-
310123-900 NUT, IGNITIONNUT, IGNITION
-
320630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
330716-391 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
340645-302 SPACER, TRAY - BATTERYSPACER, TRAY - BATTERY
