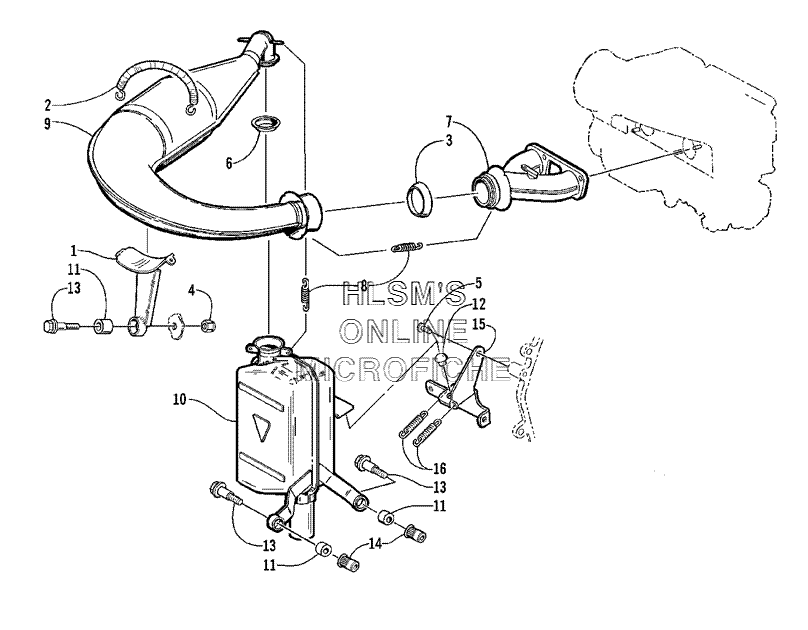

EXHAUST ASSEMBLY для Arctic Cat Z 370 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0712-176 BRACKET, MOUNTING - EXPANSION CHAMBER
    BRACKET, MOUNTING - EXPANSION CHAMBER
  • 2
    0612-027 SPRING, EXTENSION
    SPRING, EXTENSION
  • 3
    0612-131 GASKET, EXHAUST - HEADER JOINT
    GASKET, EXHAUST - HEADER JOINT
  • 4
    8040-366 NUT, LOCK
    NUT, LOCK
  • 5
    0623-765 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 6
    0612-188 GASKET, EXHAUST - TAILPIPE
    GASKET, EXHAUST - TAILPIPE
  • 7
    0712-375 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 8
    0123-321 SPRING, EXTENSION
    SPRING, EXTENSION
  • 9
    0712-391 CHAMBER, EXPANSION - ASSEMBLY
    CHAMBER, EXPANSION - ASSEMBLY
  • 10
    0712-436 RESONATOR
    RESONATOR
  • 11
    0612-107 BUSHING, RESONATOR - RUBBER
    BUSHING, RESONATOR - RUBBER
  • 12
    0612-111 BUMPER, RUBBER - MOLDED
    BUMPER, RUBBER - MOLDED
  • 13
    0623-856 SCREW, MACHINE - HEX SHOULDER
    SCREW, MACHINE - HEX SHOULDER
  • 14
    0623-582 INSERT
    INSERT
  • 15
    1612-332 BRACKET, MOUNTING - RESONATOR
    BRACKET, MOUNTING - RESONATOR
  • 16
    0612-471 SPRING, EXHAUST
    SPRING, EXHAUST
