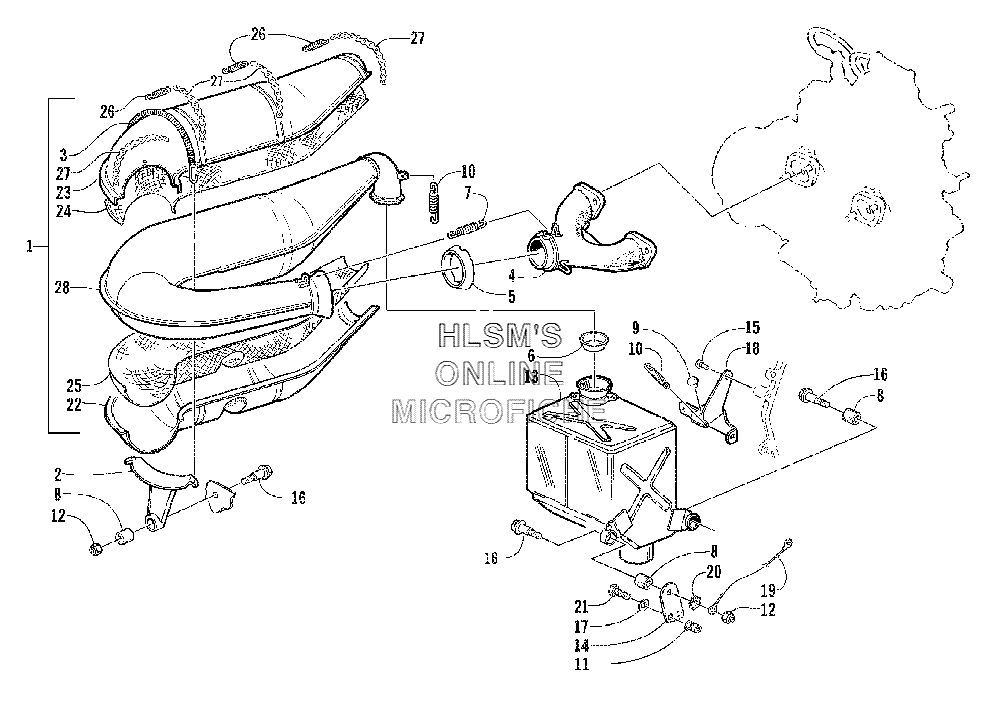

EXHAUST ASSEMBLY для Arctic Cat MOUNTAIN CAT 600 VEV - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0712-427 EXPANSION CHAMBER ASSEMBLY (INC 22-28)
    EXPANSION CHAMBER ASSEMBLY (INC 22-28)
  • 2
    0712-704 BRACKET, SUPPORT
    BRACKET, SUPPORT
  • 3
    0612-027 SPRING, EXTENSION
    SPRING, EXTENSION
  • 4
    0712-690 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 5
    1612-014 GASKET, EXHAUST
    GASKET, EXHAUST
  • 6
    1612-323 GASKET, EXHAUST - TAILPIPE
    GASKET, EXHAUST - TAILPIPE
  • 7
    0612-820 SPRING, EXTENSION
    SPRING, EXTENSION
  • 8
    0612-107 BUSHING, RESONATOR - RUBBER
    BUSHING, RESONATOR - RUBBER
  • 9
    0612-111 BUMPER, RUBBER
    BUMPER, RUBBER
  • 10
    0612-471 SPRING, EXHAUST
    SPRING, EXHAUST
  • 11
    0623-582 INSERT
    INSERT
  • 12
    8040-366 NUT, LOCK
    NUT, LOCK
  • 13
    0712-425 RESONATOR
    RESONATOR
  • 14
    0612-784 BRACKET, MOUNTING - RESONATOR
    BRACKET, MOUNTING - RESONATOR
  • 15
    0623-765 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    0623-856 SCREW, CAP
    SCREW, CAP
  • 17
    8051-217 WASHER, LOCK
    WASHER, LOCK
  • 18
    1612-339 BRACKET, MOUNTING - RESONATOR
    BRACKET, MOUNTING - RESONATOR
  • 19
    0686-126 WIRE, GROUND
    WIRE, GROUND
  • 20
    8053-212 WASHER, LOCK - EXTERNAL TOOTH
    WASHER, LOCK - EXTERNAL TOOTH
  • 21
    8002-040 SCREW, CAP
    SCREW, CAP
  • 22
    1612-144 COVER, LOWER
    COVER, LOWER
  • 23
    1612-143 COVER, UPPER
    COVER, UPPER
  • 24
    1612-008 INSULATION, UPPER
    INSULATION, UPPER
  • 25
    1612-104 INSULATION, LOWER
    INSULATION, LOWER
  • 26
    0123-321 SPRING, EXTENSION
    SPRING, EXTENSION
  • 27
    0624-526 TIE, PERFORATED BAND - 5 FT
    TIE, PERFORATED BAND - 5 FT
  • 28
    0712-426 CHAMBER, EXPANSION
    CHAMBER, EXPANSION
