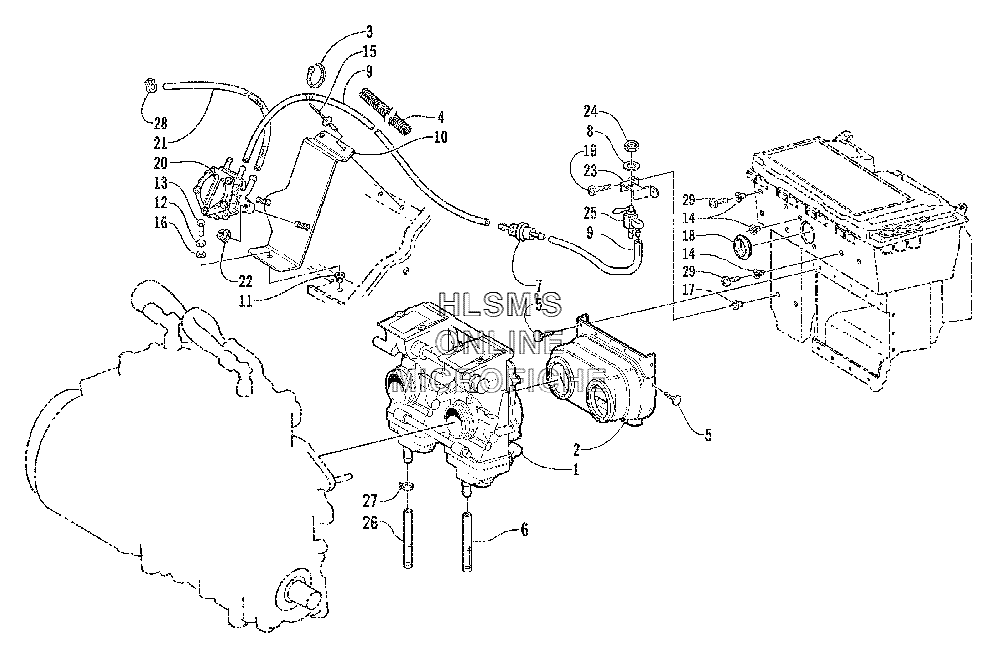

CARBURETOR AND FUEL PUMP ASSEMBLY для Arctic Cat MOUNTAIN CAT 600 VEV - 2001 года выпуска`
-
№АртикулНазвание
-
11670-115 CARBURETOR - TM38-B308CARBURETOR - TM38-B308
-
21670-125 BOOT, CARBURETORBOOT, CARBURETOR
-
30123-811 CABLE TIE - 4 IN.CABLE TIE - 4 IN.
-
40716-546 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
50623-165 CLIP, RETAININGCLIP, RETAINING
-
60610-015 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
60610-016 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
70510-335 FILTER, FUELFILTER, FUEL
-
80623-288 WASHERWASHER
-
90610-017 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
90610-008 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
100770-478 PLATE, MOUNTINGPLATE, MOUNTING
-
110623-582 INSERT, THREADEDINSERT, THREADED
-
128051-217 WASHER, LOCKWASHER, LOCK
-
138002-040 SCREW, CAPSCREW, CAP
-
140623-627 INSERTINSERT
-
158060-704 RIVETRIVET
-
168050-217 WASHERWASHER
-
170623-529 INSERTINSERT
-
180610-331 HOSE, VACUUMHOSE, VACUUM
-
190623-836 SCREW, MACHINESCREW, MACHINE
-
201670-064 PUMP, FUELPUMP, FUEL
-
210610-007 HOSE, IMPULSE - 25 FTHOSE, IMPULSE - 25 FT
-
220623-877 NUT W/WASHERNUT W/WASHER
-
230670-837 BRACKET, MOUNTING - FUEL SHUT-OFF VALVEBRACKET, MOUNTING - FUEL SHUT-OFF VALVE
-
240623-287 NUTNUT
-
250670-945 VALVE, FUEL SHUT-OFF (INC 8 AND 24)VALVE, FUEL SHUT-OFF (INC 8 AND 24)
-
260610-279 HOSE, DRAINHOSE, DRAIN
-
270623-652 CLAMP, HOSECLAMP, HOSE
-
281670-116 MANIFOLD, ALTITUDE COMPENSATORMANIFOLD, ALTITUDE COMPENSATOR
-
290610-329 HOSE, VACUUM 5 IN.HOSE, VACUUM 5 IN.
-
290610-330 HOSE, VACUUM 9 IN.HOSE, VACUUM 9 IN.
-
290610-352 HOSE, VACUUM 7.5 IN.HOSE, VACUUM 7.5 IN.
-
300610-016 HOSE, OIL LINE - 25 FTHOSE, OIL LINE - 25 FT
-
310124-045 CLAMP, HOSECLAMP, HOSE
-
321670-109 COMPENSATOR, ALTITUDECOMPENSATOR, ALTITUDE
-
338007-582 SCREW, MACHINESCREW, MACHINE
-
348053-212 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
