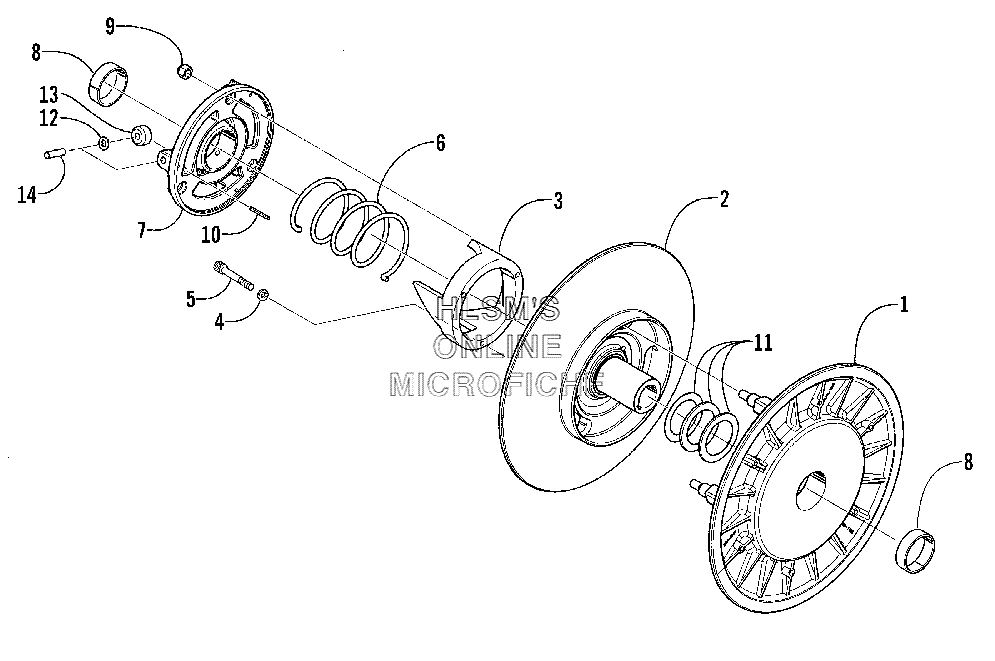

DRIVEN CLUTCH для Arctic Cat MOUNTAIN CAT 600 VEV - 2001 года выпуска

  • №
    Артикул
    Название
  • -
    0726-110 CLUTCH, DRIVEN ASSEMBLY
    CLUTCH, DRIVEN ASSEMBLY
  • 1
    0748-023 SHEAVE, MOVABLE (INC 8)
    SHEAVE, MOVABLE (INC 8)
  • 2
    0748-021 SHEAVE, STATIONARY
    SHEAVE, STATIONARY
  • 3
    0648-014 BRACKET, TORQUE 49° (OVER 5,000 FT ALT)
    BRACKET, TORQUE 49° (OVER 5,000 FT ALT)
  • 3
    0648-024 BRACKET, TORQUE 55°/53° (0-5,000 FT ALT)
    BRACKET, TORQUE 55°/53° (0-5,000 FT ALT)
  • 4
    8051-152 WASHER, LOCK
    WASHER, LOCK
  • 5
    8005-404 SCREW, SOCKET HEAD
    SCREW, SOCKET HEAD
  • 6
    0148-227 SPRING, DRIVEN CLUTCH - YELLOW
    SPRING, DRIVEN CLUTCH - YELLOW
  • 7
    0748-018 PLATE, ROLLER - ASSEMBLY (INC 8)
    PLATE, ROLLER - ASSEMBLY (INC 8)
  • 8
    0648-009 і BEARING
    і BEARING
  • 9
    8040-426 NUT, LOCK
    NUT, LOCK
  • 10
    8070-224 PIN, SPRING
    PIN, SPRING
  • 11
    0148-198 WASHER, THRUST: 0.030 IN.
    WASHER, THRUST: 0.030 IN.
  • 11
    0148-199 WASHER, THRUST: 0.060 IN.
    WASHER, THRUST: 0.060 IN.
  • 12
    0648-082 WASHER, THRUST - CAM ROLLER
    WASHER, THRUST - CAM ROLLER
  • 13
    0648-123 ROLLER, CAM
    ROLLER, CAM
  • 14
    0648-097 PIN, CAM ROLLER
    PIN, CAM ROLLER
