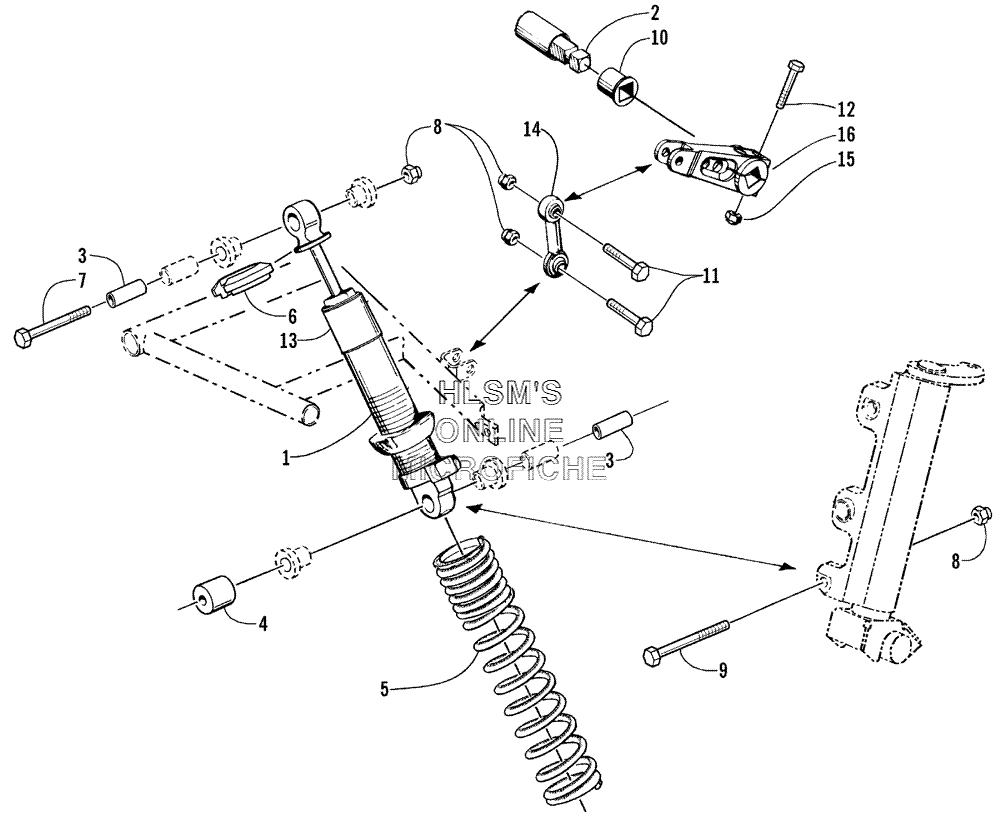

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat ZR 600 EFI - 2000 года выпуска`
-
№АртикулНазвание
-
10703-666 SHOCK SUSPENSION (FRONT)SHOCK SUSPENSION (FRONT)
-
20703-202 SWAY BARSWAY BAR
-
30603-436 SLEEVE, SHOCKSLEEVE, SHOCK
-
40603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
51603-392 SPRING, COMPRESSIONSPRING, COMPRESSION
-
61603-252 RETAINER, SPRINGRETAINER, SPRING
-
78002-226 SCREW, CAPSCREW, CAP
-
88040-486 NUT, LOCKNUT, LOCK
-
98002-232 SCREW, CAPSCREW, CAP
-
100603-151 BEARINGBEARING
-
118002-225 SCREW, CAPSCREW, CAP
-
128002-137 SCREW, CAPSCREW, CAP
-
131603-271 SLEEVE, WEARSLEEVE, WEAR
-
141603-002 LINK, SWAY BARLINK, SWAY BAR
-
158040-426 NUT, LOCKNUT, LOCK
-
160603-558 ARM, SWAY BARARM, SWAY BAR
