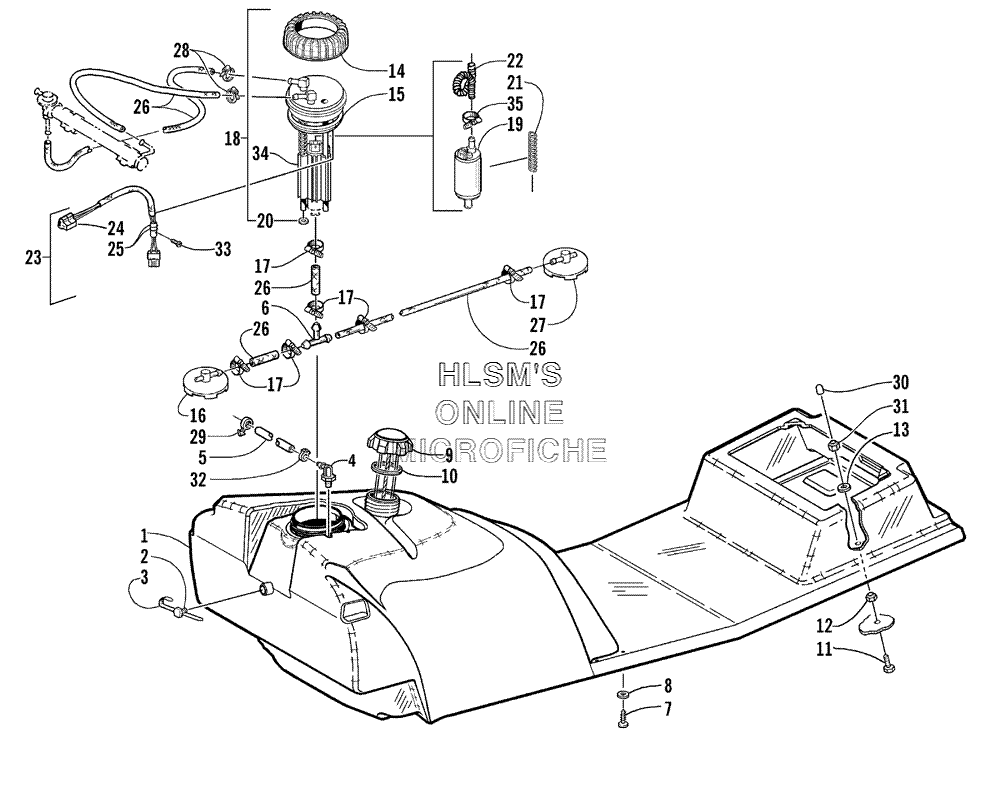

GAS TANK AND FUEL PUMP ASSEMBLIES для Arctic Cat ZR 600 EFI - 2000 года выпуска`
-
№АртикулНазвание
-
10770-434 TANK, GAS/SEAT, BASE (INC. 2, 5)TANK, GAS/SEAT, BASE (INC. 2, 5)
-
20670-243 . PLUG, GAS TANK. PLUG, GAS TANK
-
30670-289 . TAPE, TEFLON. TAPE, TEFLON
-
40670-572 . VENT, GAS TANK. VENT, GAS TANK
-
50610-015 . HOSE, VENT (100 FT). HOSE, VENT (100 FT)
-
50610-016 . HOSE, VENT (25 FT). HOSE, VENT (25 FT)
-
60670-235 T, FITTINGT, FITTING
-
70623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
88050-217 WASHERWASHER
-
90670-658 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
100109-733 . SEAL, GAS CAP. SEAL, GAS CAP
-
118002-042 SCREW, CAPSCREW, CAP
-
128041-366 NUT, LOCKNUT, LOCK
-
130623-184 WASHERWASHER
-
141670-119 NUT, RETAINING, FUEL PUMPNUT, RETAINING, FUEL PUMP
-
151670-118 SEAL, FUEL PUMP HOUSINGSEAL, FUEL PUMP HOUSING
-
161670-140 PICKUP, FUELPICKUP, FUEL
-
170610-415 CLAMP, HOSECLAMP, HOSE
-
181670-053 HOUSING, FUEL PUMP, ASSEMBLYHOUSING, FUEL PUMP, ASSEMBLY
-
191670-153 PUMP, FUELPUMP, FUEL
-
201670-157 RING, RETAININGRING, RETAINING
-
211670-156 SPRING, FUEL PUMP ASSEMBLYSPRING, FUEL PUMP ASSEMBLY
-
221670-154 HOSE, FUEL PUMP, TOPHOSE, FUEL PUMP, TOP
-
231670-117 HARNESS, FUEL PUMP (INC. 24, 25)HARNESS, FUEL PUMP (INC. 24, 25)
-
240670-380 . CONNECTOR, HARNESS. CONNECTOR, HARNESS
-
250670-381 . O-RING. O-RING
-
260610-011 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
271670-088 PICKUP, FUELPICKUP, FUEL
-
280610-419 CLAMP, HOSECLAMP, HOSE
-
290623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
300623-404 CAP, PROTECTORCAP, PROTECTOR
-
318040-366 NUT, LOCKNUT, LOCK
-
320623-063 CLAMP, HOSECLAMP, HOSE
-
331670-155 SCREW, MACHINE, HARNESSSCREW, MACHINE, HARNESS
-
341670-158 HOUSING, FUEL PUMPHOUSING, FUEL PUMP
-
351670-159 CLAMP, HOSECLAMP, HOSE
