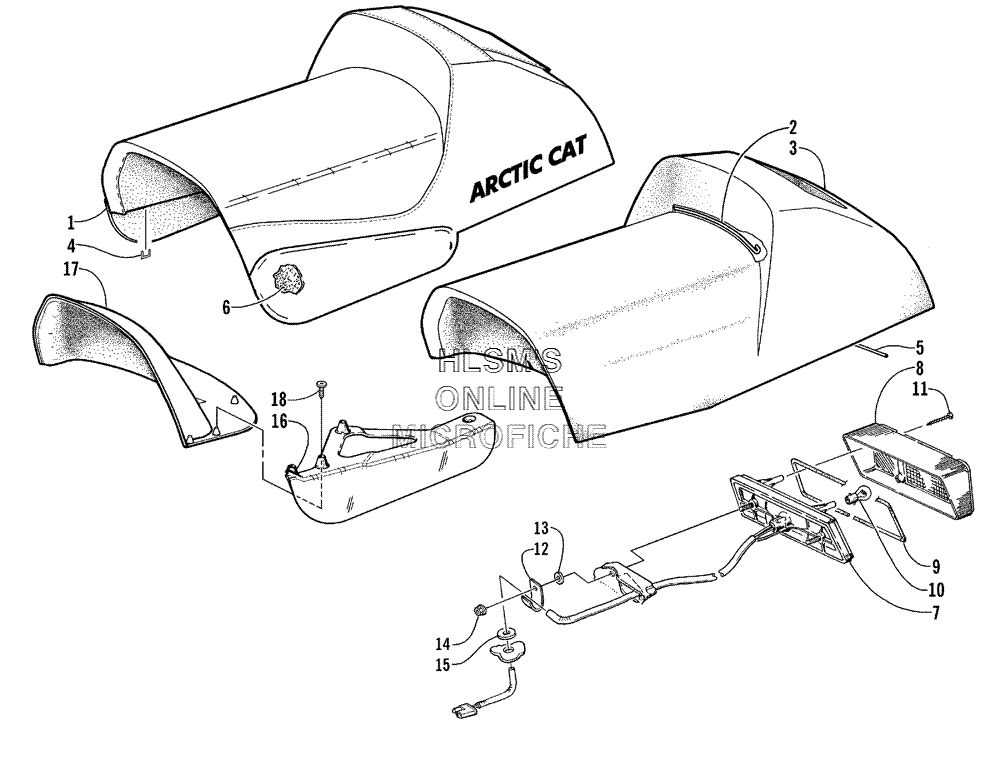

SEAT AND TAILLIGHT ASSEMBLY для Arctic Cat ZR 600 EFI - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    0718-822 COMPLETE SEAT ASSEMBLY
    COMPLETE SEAT ASSEMBLY
  • 1
    1706-082 COVER, SEAT
    COVER, SEAT
  • 2
    1606-150 WIRE, SEAT
    WIRE, SEAT
  • 3
    0716-951 FOAM, SEAT CUSHION
    FOAM, SEAT CUSHION
  • 4
    0623-577 STAPLE, SEAT COVER
    STAPLE, SEAT COVER
  • 5
    0606-057 WIRE, SEAT
    WIRE, SEAT
  • 6
    0617-391 FOAM, TUNNEL PAD
    FOAM, TUNNEL PAD
  • 7
    0609-091 TAILLIGHT W/SOCKET ASSEMBLY
    TAILLIGHT W/SOCKET ASSEMBLY
  • 8
    0609-090 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 9
    0609-092 GASKET, TAILLIGHT LENS
    GASKET, TAILLIGHT LENS
  • 10
    0109-460 BULB
    BULB
  • 11
    0609-093 SCREW, RETAINING
    SCREW, RETAINING
  • 12
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 13
    0623-184 WASHER
    WASHER
  • 14
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 15
    0617-136 SEAL, FOAM, SEAT, BASE
    SEAL, FOAM, SEAT, BASE
  • 16
    1606-710 INSERT, SEAT PAD (RIGHT)
    INSERT, SEAT PAD (RIGHT)
  • 16
    1606-711 INSERT, SEAT PAD (LEFT)
    INSERT, SEAT PAD (LEFT)
  • 17
    1606-612 INSERT, SEAT FOAM
    INSERT, SEAT FOAM
  • 18
    0623-783 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
