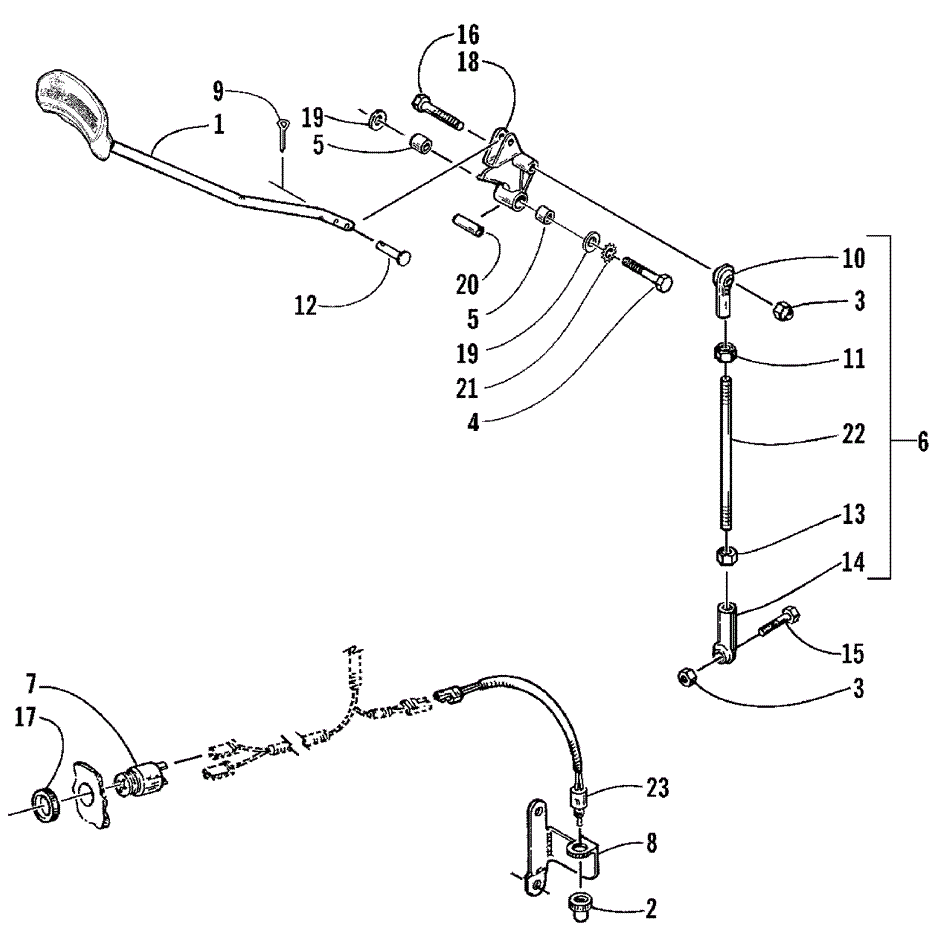

REVERSE SHIFT LEVER ASSY. для Arctic Cat ZL 550 ESR - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0602-998 LEVER, REVERSE
    LEVER, REVERSE
  • 2
    0630-013 BOOT, SWITCH
    BOOT, SWITCH
  • 3
    8040-426 NUT, LOCK
    NUT, LOCK
  • 4
    8002-140 SCREW, CAP
    SCREW, CAP
  • 5
    0602-844 BEARING
    BEARING
  • 6
    0702-290 LINKAGE, SHIFT, ASSY. (INC. 10, 11, 13, 14, AND 22)
    LINKAGE, SHIFT, ASSY. (INC. 10, 11, 13, 14, AND 22)
  • 7
    0630-010 ALARM, REVERSE
    ALARM, REVERSE
  • 8
    0602-854 BRACKET, REVERSE SWITCH
    BRACKET, REVERSE SWITCH
  • 9
    0117-868 PIN, COTTER
    PIN, COTTER
  • 10
    0602-305 ROD END (LEFT)
    ROD END (LEFT)
  • 11
    0623-260 NUT (LEFT)
    NUT (LEFT)
  • 12
    0623-641 PIN, CLEVIS
    PIN, CLEVIS
  • 13
    0123-144 NUT (RIGHT)
    NUT (RIGHT)
  • 14
    0602-322 ROD END (RIGHT)
    ROD END (RIGHT)
  • 15
    8002-132 SCREW, CAP
    SCREW, CAP
  • 16
    8002-139 SCREW, CAP
    SCREW, CAP
  • 17
    0630-017 RING, RETAINING
    RING, RETAINING
  • 18
    0702-335 SHIFT PIVOT (INC. 5)
    SHIFT PIVOT (INC. 5)
  • 19
    8050-252 WASHER
    WASHER
  • 20
    0602-853 AXLE, SHIFT PIVOT
    AXLE, SHIFT PIVOT
  • 21
    8053-242 WASHER, LOCK, EXTERNAL TOOTH
    WASHER, LOCK, EXTERNAL TOOTH
  • 22
    0602-848 ROD, LINKAGE
    ROD, LINKAGE
  • 23
    0630-011 SWITCH, ALARM
    SWITCH, ALARM
