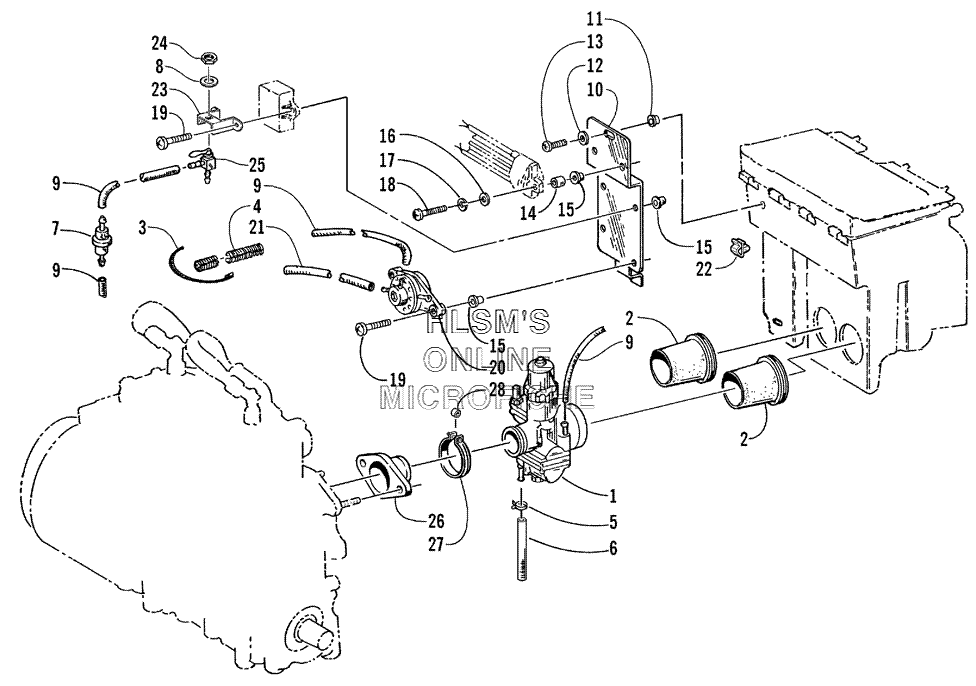

CARBURETOR AND FUEL PUMP ASSY. для Arctic Cat ZL 550 ESR - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-379 CARBURETOR, VM38, 424
    CARBURETOR, VM38, 424
  • 2
    0670-516 BOOT, CARBURETOR
    BOOT, CARBURETOR
  • 3
    0123-811 TIE, CABLE
    TIE, CABLE
  • 4
    0716-546 CONDUIT, FLEXIBLE
    CONDUIT, FLEXIBLE
  • 5
    0623-652 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    0610-279 HOSE, DRAIN
    HOSE, DRAIN
  • 7
    0510-335 FILTER, FUEL
    FILTER, FUEL
  • 8
    0623-288 WASHER
    WASHER
  • 9
    0610-017 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 9
    0610-008 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 10
    0770-310 PLATE, MOUNTING
    PLATE, MOUNTING
  • 11
    0623-627 INSERT, THREADED
    INSERT, THREADED
  • 12
    8051-212 WASHER, LOCK
    WASHER, LOCK
  • 13
    8017-577 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    0107-630 SPACER, FUEL PUMP
    SPACER, FUEL PUMP
  • 15
    0623-779 INSERT
    INSERT
  • 16
    8050-157 WASHER
    WASHER
  • 17
    8051-152 WASHER, LOCK
    WASHER, LOCK
  • 18
    0623-082 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    0623-833 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    0670-311 PUMP, FUEL
    PUMP, FUEL
  • 21
    0610-007 HOSE, IMPULSE (25 FT)
    HOSE, IMPULSE (25 FT)
  • 22
    0623-403 CLAMP, PUSH MOUNT
    CLAMP, PUSH MOUNT
  • 23
    0670-837 BRACKET, MOUNTING, FUEL SHUT, OFF VALVE
    BRACKET, MOUNTING, FUEL SHUT, OFF VALVE
  • 24
    0623-287 NUT
    NUT
  • 25
    0670-144 VALVE, FUEL SHUT, OFF (INC. 24)
    VALVE, FUEL SHUT, OFF (INC. 24)
  • 26
    0670-197 FLANGE, CARBURETOR (INC. 27, 28)
    FLANGE, CARBURETOR (INC. 27, 28)
  • 27
    0670-199 . CLAMP, CARBURETOR FLANGE (INC. 28)
    . CLAMP, CARBURETOR FLANGE (INC. 28)
  • 28
    0670-209 SPACER, CLAMP
    SPACER, CLAMP
