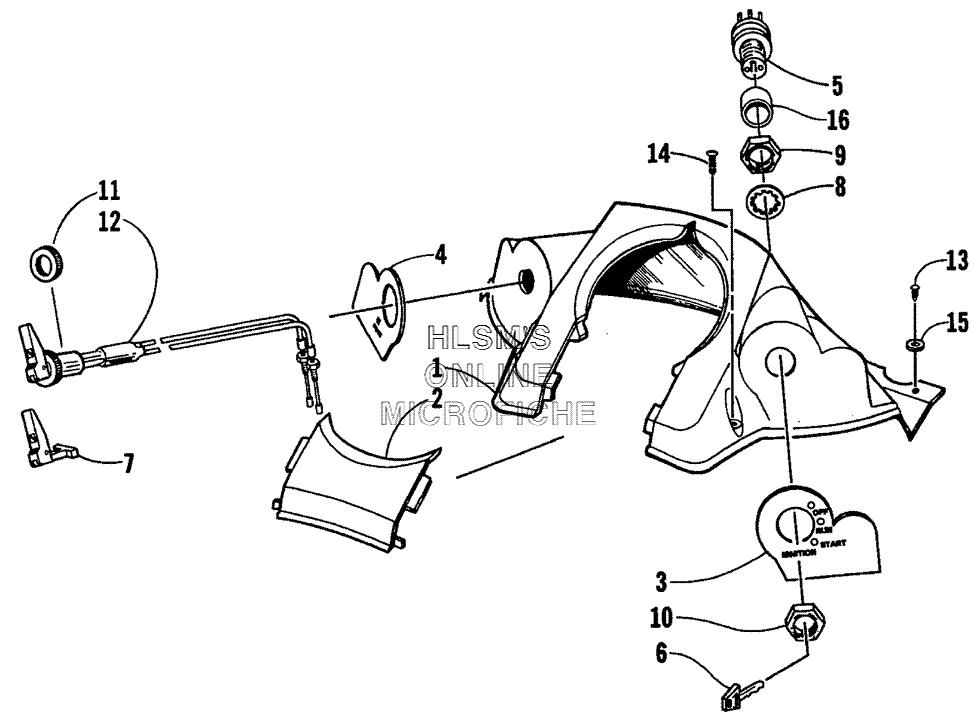

CONSOLE AND SWITCH ASSY. для Arctic Cat ZL 550 ESR - 2000 года выпуска
-
№АртикулНазвание
-
11606-735 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
32611-744 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
42611-867 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
50609-449 SWITCH, IGNITION, MULTI, KEY (INC. 6)SWITCH, IGNITION, MULTI, KEY (INC. 6)
-
70636-062 KIT, CHOKE LEVERKIT, CHOKE LEVER
-
80123-899 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
90123-900 NUT, IGNITIONNUT, IGNITION
-
100609-113 NUT, RETAININGNUT, RETAINING
-
110623-054 NUT, CHOKENUT, CHOKE
-
120687-007 CABLE, CHOKECABLE, CHOKE
-
130623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
140623-219 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
158050-157 WASHERWASHER
-
160609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
