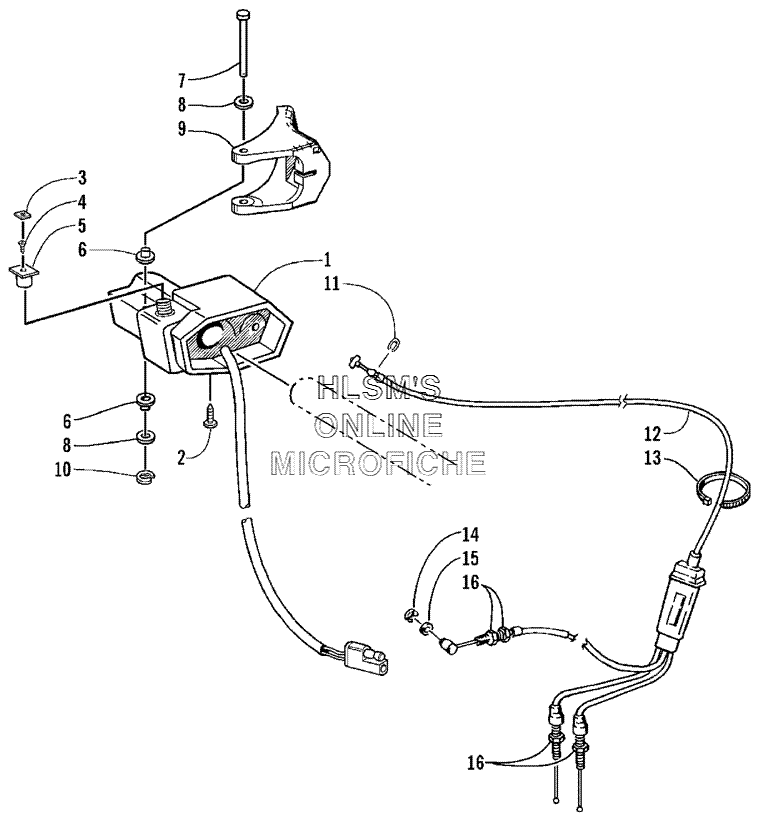

THROTTLE CONTROL ASSEMBLY для Arctic Cat Z 440 Sno Pro (USA) - 2000 года выпуска
-
№АртикулНазвание
-
10609-280 CONTROL, THROTTLE (INC. 2, 5)CONTROL, THROTTLE (INC. 2, 5)
-
20609-085 SCREW, RETAININGSCREW, RETAINING
-
30609-121 DECAL, PLATE, EMERGENCY STOPDECAL, PLATE, EMERGENCY STOP
-
40623-215 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
50609-120 KNOB, EMERGENCY STOPKNOB, EMERGENCY STOP
-
60609-038 SEAL, THROTTLE LEVERSEAL, THROTTLE LEVER
-
70609-039 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
80609-036 WASHER, FLATWASHER, FLAT
-
90609-018 LEVER, THROTTLELEVER, THROTTLE
-
100609-040 E, RINGE, RING
-
110123-231 RING, RETAININGRING, RETAINING
-
120687-059 CABLE, THROTTLECABLE, THROTTLE
-
130123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
140124-057 E, RINGE, RING
-
150124-056 WASHERWASHER
-
160623-464 NUT, LOCKING, THROTTLE CABLENUT, LOCKING, THROTTLE CABLE
