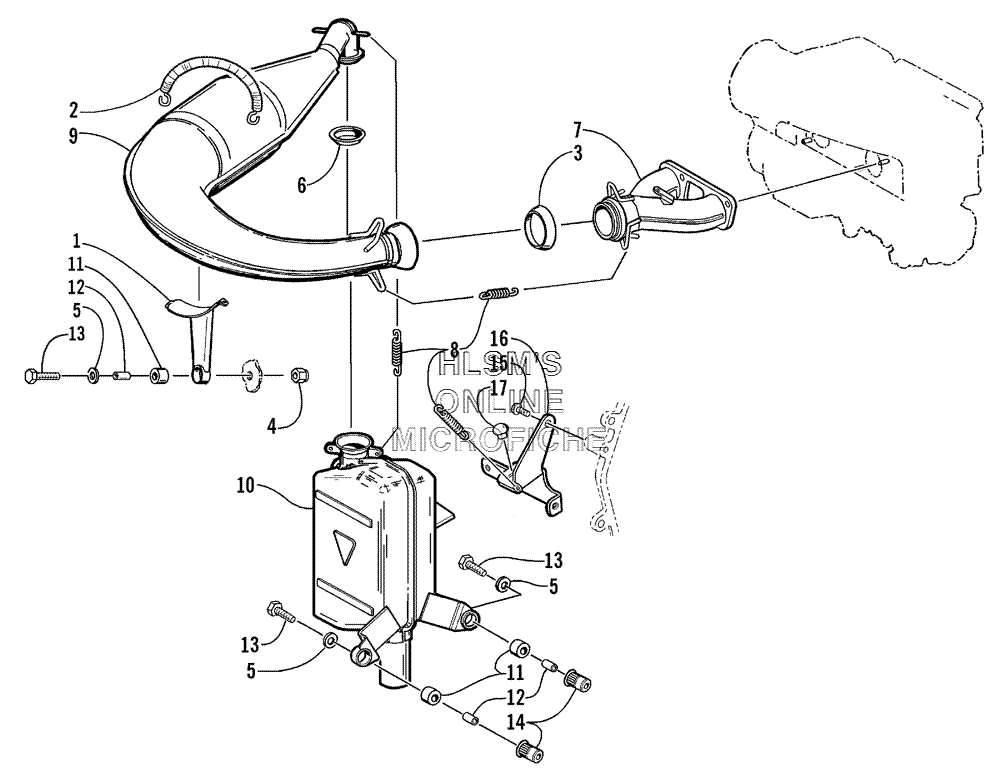

EXHAUST ASSEMBLY для Arctic Cat Z 440 Sno Pro (USA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0712-689 BRACKET, MOUNTING, EXPANSION CHAMBER
    BRACKET, MOUNTING, EXPANSION CHAMBER
  • 2
    0612-027 SPRING, EXTENSION
    SPRING, EXTENSION
  • 3
    0612-131 GASKET, EXHAUST, HEADER JOINT
    GASKET, EXHAUST, HEADER JOINT
  • 4
    8040-366 NUT, LOCK
    NUT, LOCK
  • 5
    0623-184 WASHER
    WASHER
  • 6
    0612-693 GASKET, EXHAUST, TAILPIPE
    GASKET, EXHAUST, TAILPIPE
  • 7
    0712-434 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 8
    0612-471 SPRING, EXHAUST
    SPRING, EXHAUST
  • 9
    0712-409 EXPANSION CHAMBER ASSEMBLY
    EXPANSION CHAMBER ASSEMBLY
  • 10
    0712-416 RESONATOR
    RESONATOR
  • 11
    0612-107 BUSHING, RESONATOR, RUBBER
    BUSHING, RESONATOR, RUBBER
  • 12
    0612-108 SPACER, RESONATOR
    SPACER, RESONATOR
  • 13
    8002-044 SCREW, CAP
    SCREW, CAP
  • 14
    0623-582 INSERT
    INSERT
  • 15
    0623-765 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 16
    1612-169 BRACKET, MOUNTING, RESONATOR
    BRACKET, MOUNTING, RESONATOR
  • 17
    0612-111 BUMPER, RUBBER
    BUMPER, RUBBER
