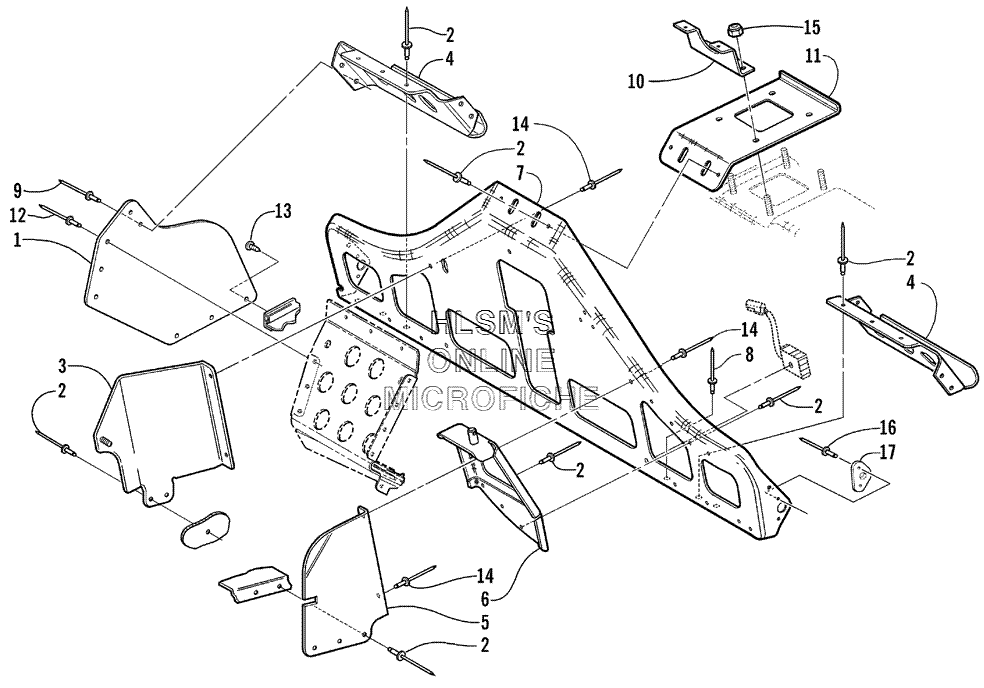

STEERING SUPPORT ASSEMBLY для Arctic Cat Z 440 Sno Pro (USA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1606-979 SUPPORT, ANKLE
    SUPPORT, ANKLE
  • 2
    0623-166 RIVET
    RIVET
  • 3
    1606-455 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 4
    1606-960 BRACKET, TOE HOLD (RIGHT)
    BRACKET, TOE HOLD (RIGHT)
  • 4
    1606-961 BRACKET, TOE HOLD (LEFT)
    BRACKET, TOE HOLD (LEFT)
  • 5
    1606-723 BRACKET, AIR SILENCER
    BRACKET, AIR SILENCER
  • 6
    1706-111 BRACKET, MOUNTING, GUARD
    BRACKET, MOUNTING, GUARD
  • 7
    0605-475 SUPPORT, STEERING
    SUPPORT, STEERING
  • 8
    0623-282 RIVET
    RIVET
  • 9
    8061-706 RIVET
    RIVET
  • 10
    1606-490 BRACKET, MOUNTING, CONSOLE
    BRACKET, MOUNTING, CONSOLE
  • 11
    1606-428 BRACKET, GAS TANK SUPPORT (UPPER)
    BRACKET, GAS TANK SUPPORT (UPPER)
  • 12
    8061-508 RIVET
    RIVET
  • 13
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 14
    8060-684 RIVET
    RIVET
  • 15
    8040-366 NUT, LOCK
    NUT, LOCK
  • 16
    8060-510 RIVET
    RIVET
  • 17
    1606-977 SPACER, BELLY PAN (LEFT)
    SPACER, BELLY PAN (LEFT)
