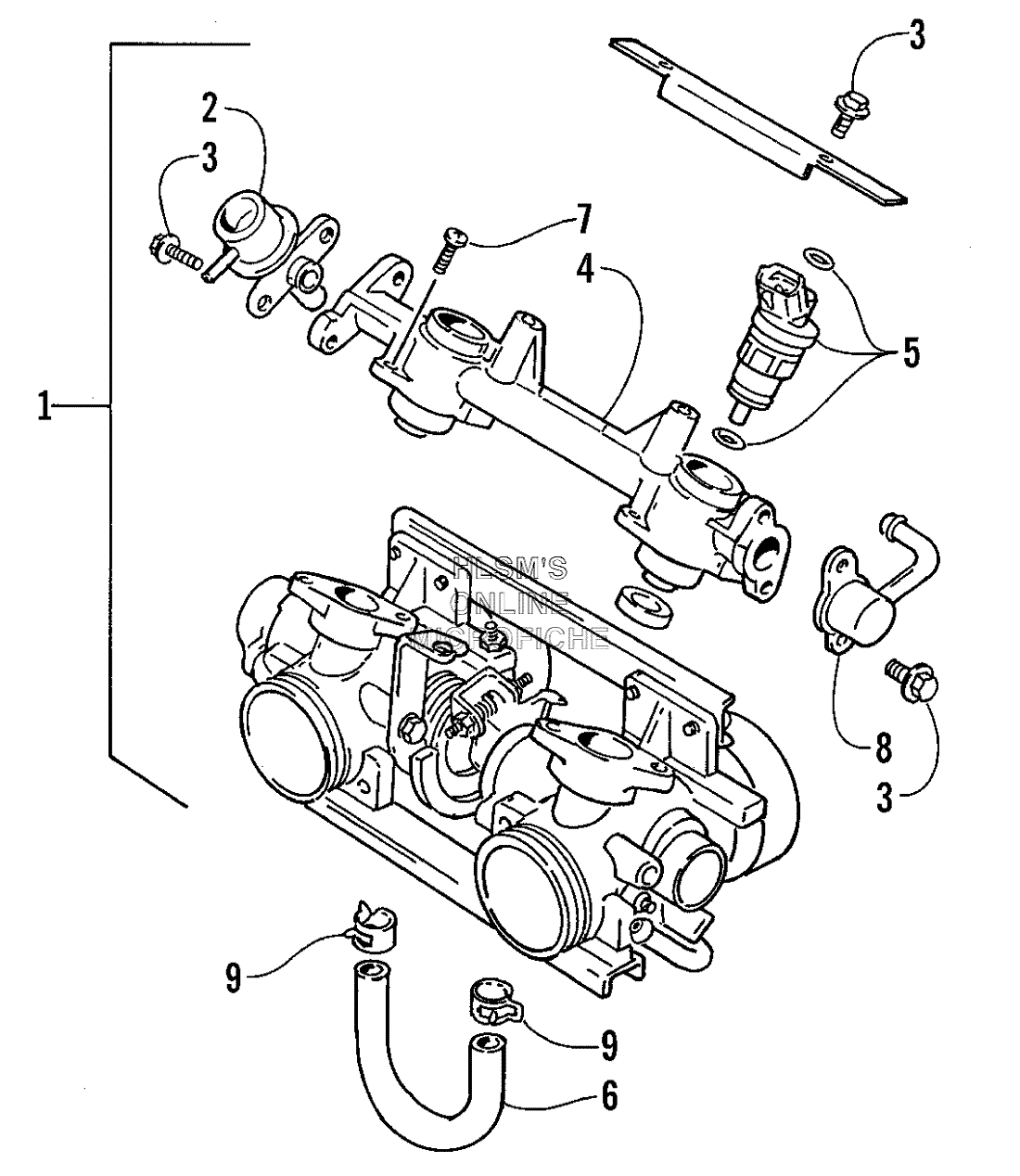

THROTTLE BODY ASSEMBLY для Arctic Cat Powder Spcial 600 EFI - 2000 года выпуска
-
№АртикулНазвание
-
13005-611 THROTTLE BODY - ASSEMBLY BT - CIRCLETHROTTLE BODY - ASSEMBLY BT - CIRCLE
-
13005-608 THROTTLE BODY - ASSEMBLY BT - SQUARETHROTTLE BODY - ASSEMBLY BT - SQUARE
-
13005-612 THROTTLE BODY - ASSEMBLY BT - TRIANGLETHROTTLE BODY - ASSEMBLY BT - TRIANGLE
-
23005-074 REGULATOR, FUELREGULATOR, FUEL
-
33004-436 SCREW, CAPSCREW, CAP
-
43005-269 PIPE, DELIVERYPIPE, DELIVERY
-
53005-075 INJECTOR, FUEL - ASSEMBLY BT - CIRCLEINJECTOR, FUEL - ASSEMBLY BT - CIRCLE
-
53005-076 INJECTOR, FUEL - ASSEMBLY BT - SQUAREINJECTOR, FUEL - ASSEMBLY BT - SQUARE
-
53005-077 INJECTOR, FUEL - ASSEMBLY BT - TRIANGLEINJECTOR, FUEL - ASSEMBLY BT - TRIANGLE
-
63005-103 HOSEHOSE
-
73005-320 SCREWSCREW
-
83005-079 PIPE, FUEL INLETPIPE, FUEL INLET
-
93004-193 CLAMP, HOSECLAMP, HOSE
Все узлы модели:
- AIR SILENCER ASSEMBLY
- BELLY PAN AND FRONT BUMPER ASSEMBLY
- BELT GUARD ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/DROPCASE ASSEMBLY
- DRIVE/REVERSE DROPCASE ASSEMBLY (OPTIONAL)
- DRIVEN CLUTCH
- DROPCASE CHAIN TENSION ASSEMBLY (OPTIONAL)
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT FRAME AND FOOTREST ASSEMBLY
- FRONT SUSPENSION AND SHOCK ABSORBER
- GAS TANK AND FUEL PUMP ASSEMBLIES
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- RACK- SEAT- AND TAILLIGHT ASSEMBLY
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION REAR ARM ASSEMBLY
- RECOIL STARTER
- REED VALVE ASSEMBLY
- RELATED ITEMS
- REVERSE SHIFT LEVER ASSEMBLY (OPTIONAL)
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST ASSEMBLY
- • THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL AND REAR BUMPER
- WATER PUMP AND THERMOSTAT
