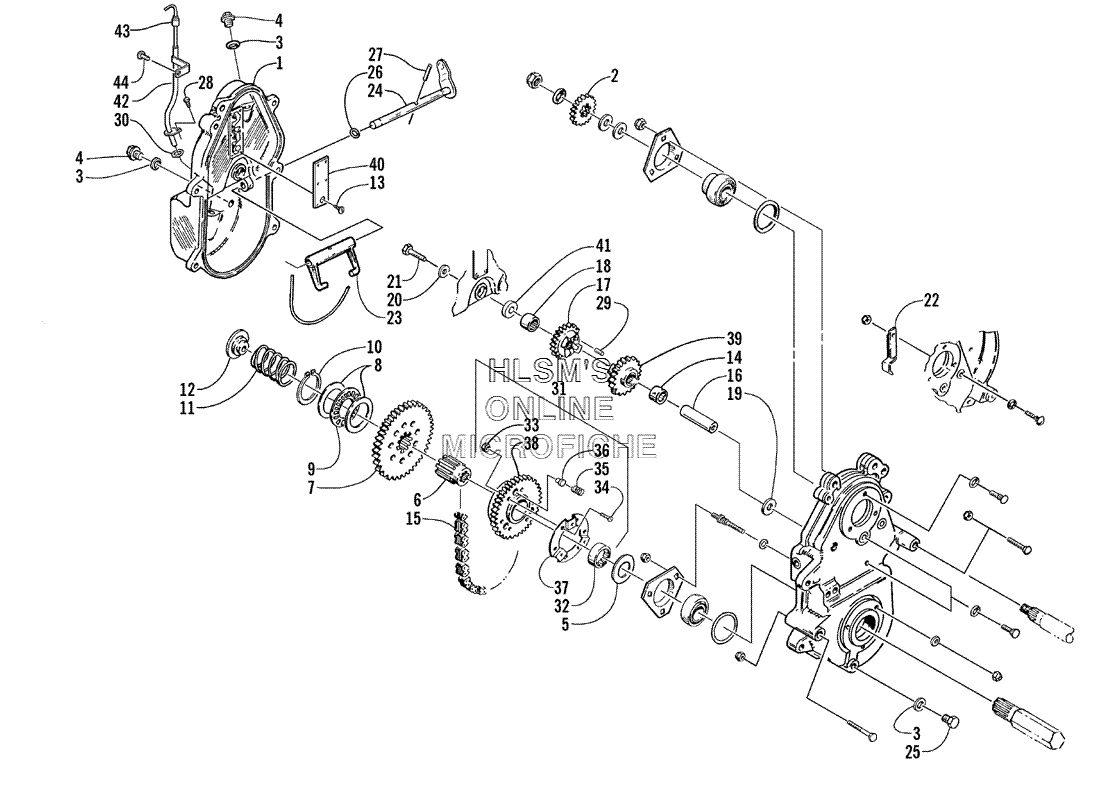

DRIVE/REVERSE DROPCASE ASSEMBLY (OPTIONAL) для Arctic Cat Powder Spcial 600 EFI - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    1639-479 REVERSE OPTIONAL KIT
    REVERSE OPTIONAL KIT
  • 1
    1602-010 COVER, DROPCASE
    COVER, DROPCASE
  • 2
    0602-444 SPROCKET, 19T
    SPROCKET, 19T
  • 3
    0123-641 WASHER, FIBER
    WASHER, FIBER
  • 4
    0623-293 PLUG, DRAIN (ONE INCLUDED IN KIT)
    PLUG, DRAIN (ONE INCLUDED IN KIT)
  • 5
    0602-012 SPACER, SHAFT
    SPACER, SHAFT
  • 6
    1602-048 EXTENSION, DRIVESHAFT
    EXTENSION, DRIVESHAFT
  • 7
    0702-048 GEAR, REVERSE - 55T (INC. 8-10)
    GEAR, REVERSE - 55T (INC. 8-10)
  • 8
    0602-023 . WASHER, THRUST
    . WASHER, THRUST
  • 9
    0602-022 . BEARING, THRUST
    . BEARING, THRUST
  • 10
    0602-024 . RING, RETAINING
    . RING, RETAINING
  • 11
    0602-028 SPRING, RETURN
    SPRING, RETURN
  • 12
    0602-783 RETAINER, SHAFT EXTENSION
    RETAINER, SHAFT EXTENSION
  • 13
    0623-081 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    0602-018 BEARING
    BEARING
  • 15
    1602-041 CHAIN, 70P
    CHAIN, 70P
  • 16
    0602-094 SHAFT, REVERSE
    SHAFT, REVERSE
  • 17
    0702-366 IDLER, REVERSE ASSEMBLY - 19T (INC. 18)
    IDLER, REVERSE ASSEMBLY - 19T (INC. 18)
  • 18
    1602-045 . BEARING
    . BEARING
  • 19
    0602-215 SPACER, REVERSE IDLER
    SPACER, REVERSE IDLER
  • 20
    8050-242 WASHER
    WASHER
  • 21
    8002-130 SCREW, CAP
    SCREW, CAP
  • 22
    0602-466 BRACKET, CHAIN BACKING
    BRACKET, CHAIN BACKING
  • 23
    0602-085 FORK, SHIFT
    FORK, SHIFT
  • 24
    0702-350 SHAFT, SHIFT FORK
    SHAFT, SHIFT FORK
  • 25
    0602-479 PLUG, DRAIN
    PLUG, DRAIN
  • 26
    0602-021 SEAL, O-RING
    SEAL, O-RING
  • 27
    0623-542 PIN, SPRING
    PIN, SPRING
  • 28
    0623-786 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 29
    0602-366 ALIGNER, IDLER - PIN
    ALIGNER, IDLER - PIN
  • 30
    1602-013 O-RING, OIL LEVEL STICK TUBE
    O-RING, OIL LEVEL STICK TUBE
  • 31
    0702-170 SPROCKET ASSEMBLY, 39T (INC. 32-38)
    SPROCKET ASSEMBLY, 39T (INC. 32-38)
  • 32
    0602-016 . BEARING
    . BEARING
  • 33
    0123-430 . NUT, LOCK
    . NUT, LOCK
  • 34
    0623-182 . SCREW, CAP
    . SCREW, CAP
  • 35
    0602-138 . SPRING, COMPRESSION
    . SPRING, COMPRESSION
  • 36
    0602-133 . PIN, SLIP
    . PIN, SLIP
  • 37
    0602-144 . RETAINER, SPRING
    . RETAINER, SPRING
  • 39
    0702-260 SPROCKET, IDLER - 24T (INC. 14)
    SPROCKET, IDLER - 24T (INC. 14)
  • 40
    0602-112 COVER, OIL VENT
    COVER, OIL VENT
  • 41
    1602-044 WASHER, THRUST
    WASHER, THRUST
  • 42
    1602-011 TUBE, OIL LEVEL STICK
    TUBE, OIL LEVEL STICK
  • 43
    1602-012 STICK, OIL LEVEL
    STICK, OIL LEVEL
  • 44
    0623-640 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
