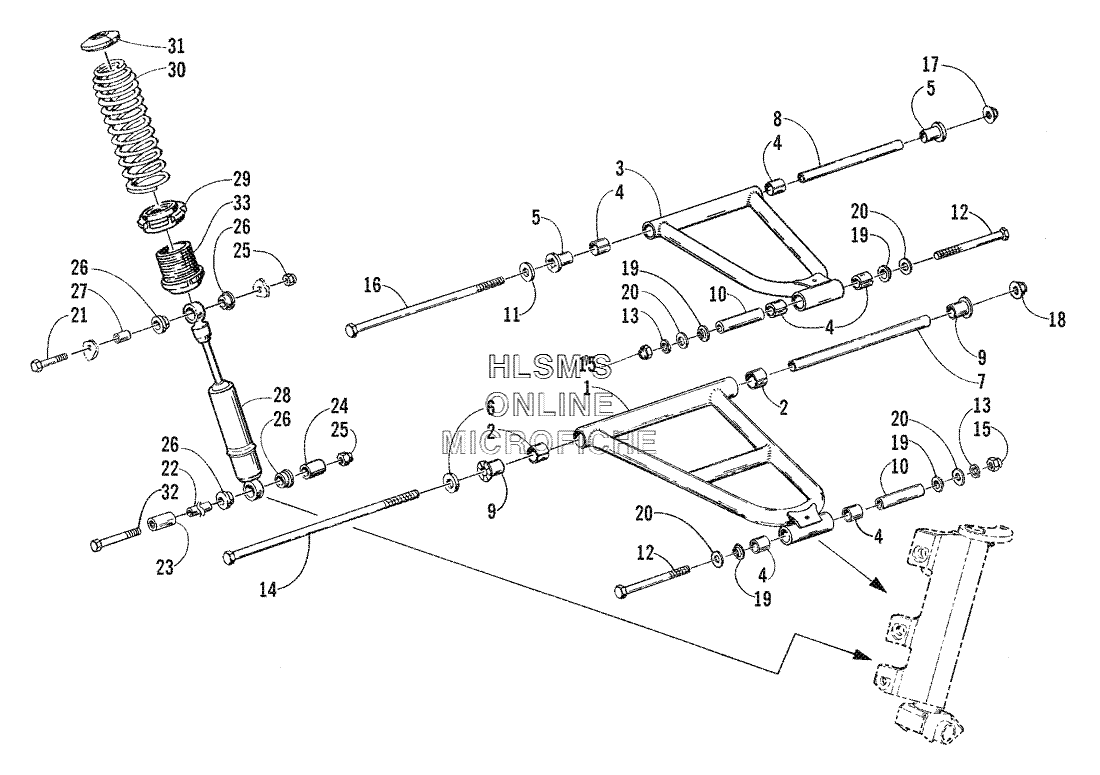

FRONT SUSPENSION AND SHOCK ABSORBER для Arctic Cat Powder Spcial 600 EFI - 2000 года выпуска
-
№АртикулНазвание
-
10703-684 ARM, LOWER - RIGHT (INC. 2 AND 4)ARM, LOWER - RIGHT (INC. 2 AND 4)
-
10703-685 ARM, LOWER - LEFT (INC. 2 AND 4)ARM, LOWER - LEFT (INC. 2 AND 4)
-
20603-158 . BEARING. BEARING
-
30703-682 ARM, UPPER (INC. 4)ARM, UPPER (INC. 4)
-
40603-083 . BEARING. BEARING
-
51603-244 AXLE, POWDER METALAXLE, POWDER METAL
-
60623-663 WASHERWASHER
-
70603-693 TUBE, AXLETUBE, AXLE
-
80603-692 TUBE, AXLETUBE, AXLE
-
90603-524 AXLE, SERRATEDAXLE, SERRATED
-
100603-830 AXLE, SPINDLE MOUNTAXLE, SPINDLE MOUNT
-
110623-664 WASHERWASHER
-
120623-657 SCREW, CAPSCREW, CAP
-
138051-277 WASHER, LOCKWASHER, LOCK
-
140623-508 SCREW, CAPSCREW, CAP
-
150623-026 NUT, LOCKNUT, LOCK
-
160623-509 SCREW, CAPSCREW, CAP
-
170623-661 NUT, LOCKNUT, LOCK
-
180623-660 NUT, LOCKNUT, LOCK
-
190603-647 INSERT, SPINDLEINSERT, SPINDLE
-
208050-277 WASHERWASHER
-
218002-226 SCREW, CAPSCREW, CAP
-
221604-184 SLEEVE, SHOCK ABSORBERSLEEVE, SHOCK ABSORBER
-
230603-854 SPACER, SHOCK ABSORBER - FRONTSPACER, SHOCK ABSORBER - FRONT
-
240603-855 SPACER, SHOCK ABSORBER - REARSPACER, SHOCK ABSORBER - REAR
-
258040-486 NUT, LOCKNUT, LOCK
-
260604-310 BUSHING, SHOCK ABSORBERBUSHING, SHOCK ABSORBER
-
270604-309 SLEEVE, SHOCK ABSORBERSLEEVE, SHOCK ABSORBER
-
281603-264 SHOCK, FRONT SUSPENSIONSHOCK, FRONT SUSPENSION
-
290603-259 NUT, RETAINER - SPRINGNUT, RETAINER - SPRING
-
300703-482 SPRING, FRONT SUSPENSIONSPRING, FRONT SUSPENSION
-
310603-033 RETAINER, SPRINGRETAINER, SPRING
-
328002-234 SCREW, CAPSCREW, CAP
-
330603-147 SLEEVE, THREADEDSLEEVE, THREADED
