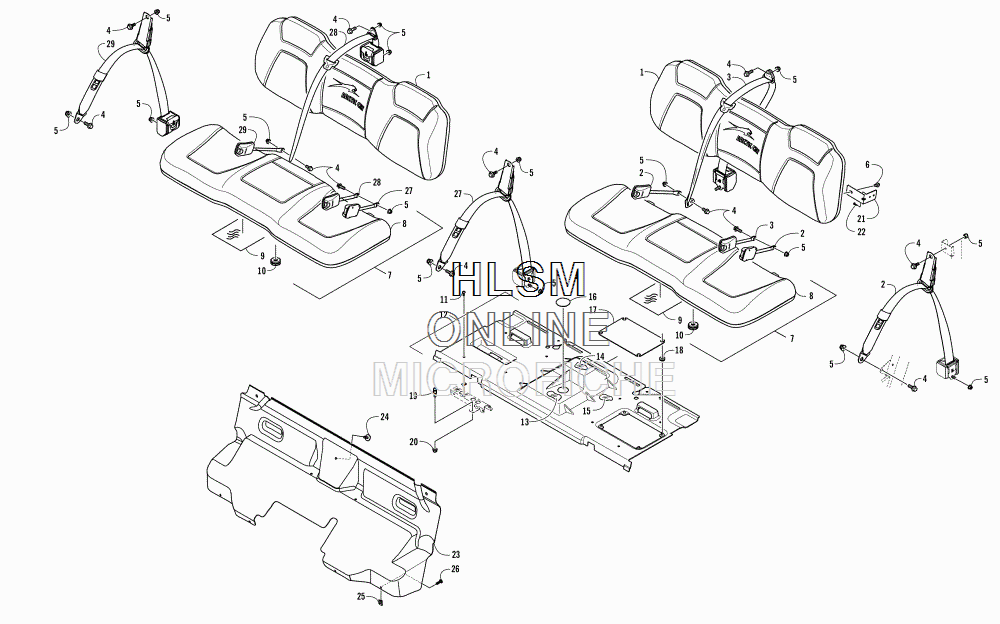

SEAT ASSEMBLY для Arctic Cat HDX 700 CREW XT RED - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    7506-538 BACKREST ASSEMBLY
    BACKREST ASSEMBLY
  • 2
    7506-700 BELT, SEAT
    BELT, SEAT
  • 3
    7506-704 BELT, SEAT - 3 POINT
    BELT, SEAT - 3 POINT
  • 4
    1423-182 SCREW, CAP
    SCREW, CAP
  • 5
    1423-184 NUT, LOCK
    NUT, LOCK
  • 6
    8408-820 SCREW, CAP
    SCREW, CAP
  • 7
    5506-616 SEAT, BENCH - BOTTOM - W/FOIL (INC. 8-10)
    SEAT, BENCH - BOTTOM - W/FOIL (INC. 8-10)
  • 8
    2516-898 ...SEAT, BENCH (NOT SERVICED INDIVIDUALLY)
    ...SEAT, BENCH (NOT SERVICED INDIVIDUALLY)
  • 9
    0412-776 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 10
    1423-066 ...GROMMET
    ...GROMMET
  • 11
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    5506-384 BASE, SEAT (INC. 13-15)
    BASE, SEAT (INC. 13-15)
  • 13
    0412-779 ...FOIL, PROTECTIVE (A)
    ...FOIL, PROTECTIVE (A)
  • 14
    0412-780 ...FOIL, PROTECTIVE (B)
    ...FOIL, PROTECTIVE (B)
  • 15
    0412-781 ...FOIL, PROTECTIVE (C)
    ...FOIL, PROTECTIVE (C)
  • 16
    0623-600 PLUG
    PLUG
  • 17
    2416-491 COVER, ACCESS
    COVER, ACCESS
  • 18
    1623-156 GROMMET
    GROMMET
  • 19
    1423-286 STUD, LATCH - SEAT
    STUD, LATCH - SEAT
  • 20
    8424-002 NUT
    NUT
  • 21
    7506-166 BRACKET, LOWER SEAT MOUNT
    BRACKET, LOWER SEAT MOUNT
  • 22
    0423-538 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 23
    5406-289 PANEL, REAR KICK
    PANEL, REAR KICK
  • 24
    1423-198 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 26
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
  • 27
    7506-706 BELT, SEAT
    BELT, SEAT
  • 28
    7506-544 BELT, SEAT
    BELT, SEAT
  • 29
    7506-543 BELT, SEAT - FONT RIGHT PASSANGER
    BELT, SEAT - FONT RIGHT PASSANGER
