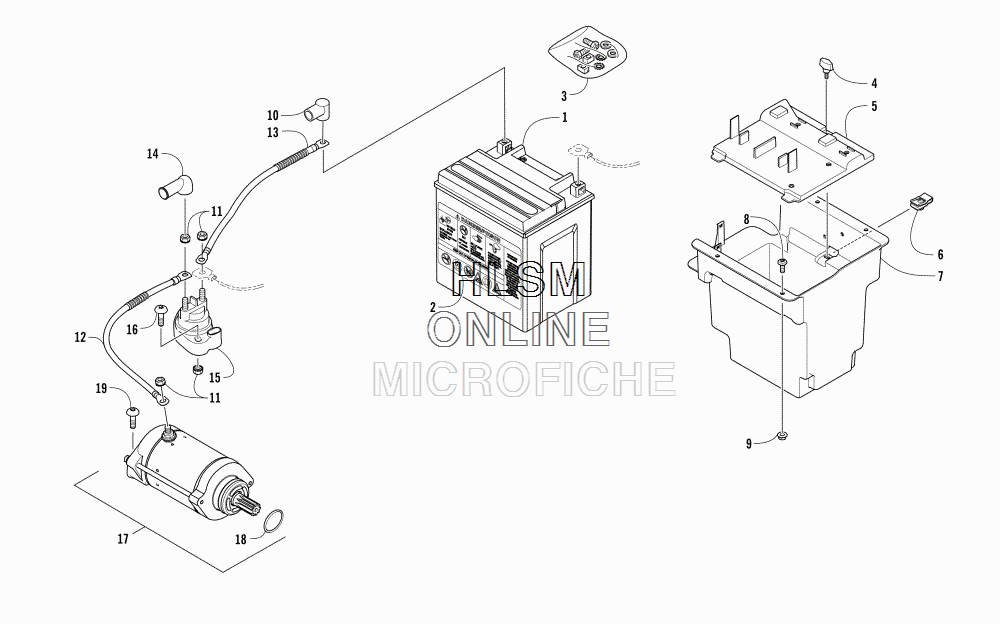

BATTERY AND STARTER MOTOR ASSEMBLY для Arctic Cat HDX 700 CREW XT RED - 2017 года выпуска`
-
№АртикулНазвание
-
10445-115 BATTERY (INC. 2-3)BATTERY (INC. 2-3)
-
20645-430 ...DECAL, WARNING...DECAL, WARNING
-
30445-082 ...KIT, HARDWARE...KIT, HARDWARE
-
41441-624 SCREW, THUMBSCREW, THUMB
-
54406-090 COVER, BATTERY BOXCOVER, BATTERY BOX
-
60423-577 CLIP, U-NUTCLIP, U-NUT
-
72406-914 BOX, BATTERYBOX, BATTERY
-
88476-616 SCREW, MACHINESCREW, MACHINE
-
98424-602 NUTNUT
-
100645-019 BOOT, TERMINAL - BATTERYBOOT, TERMINAL - BATTERY
-
110623-038 NUT W/WASHERNUT W/WASHER
-
120445-061 CABLE, SOLENOID/STARTER (RED)CABLE, SOLENOID/STARTER (RED)
-
130445-099 CABLE, SOLENOID/STARTER (RED)CABLE, SOLENOID/STARTER (RED)
-
140645-327 BOOT, TERMINAL - SOLENOIDBOOT, TERMINAL - SOLENOID
-
150445-058 SOLENOIDSOLENOID
-
168476-625 SCREW, CAPSCREW, CAP
-
170825-024 MOTOR, STARTER (INC. 18MOTOR, STARTER (INC. 18
-
180830-228 ...O-RING...O-RING
-
198408-625 SCREW, CAPSCREW, CAP
