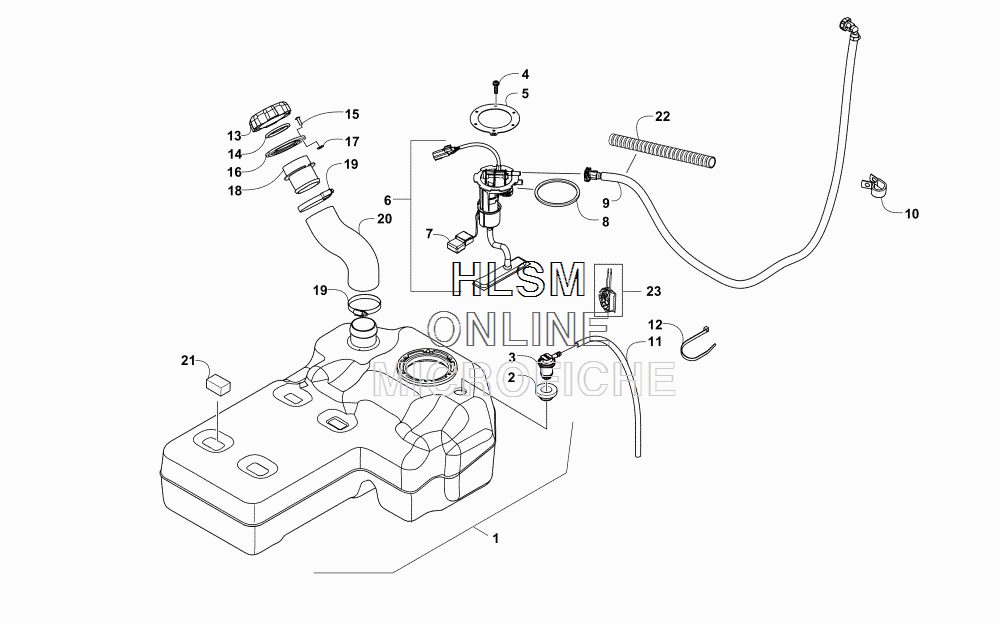

GAS TANK ASSEMBLY для Arctic Cat WILDCAT SPORT RED [U2016W6T4COSR] - 2016 года выпуска`
-
№АртикулНазвание
-
10570-374 TANK, GASTANK, GAS
-
21670-822 GROMMETGROMMET
-
31670-787 VALVE, CHECKVALVE, CHECK
-
40423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
52670-042 PLATE, RETAINING - FUEL PUMPPLATE, RETAINING - FUEL PUMP
-
60570-402 PUMP, FUEL - ASSEMBLY (INC. 7)PUMP, FUEL - ASSEMBLY (INC. 7)
-
72670-235 ...FLOAT...FLOAT
-
80470-838 SEALSEAL
-
90570-444 HOSE, GASLINEHOSE, GASLINE
-
101623-675 CLAMP, ROUTINGCLAMP, ROUTING
-
110410-070 HOSE - 25 FTHOSE - 25 FT
-
120123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
120123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
130470-438 CAP, GAS TANK - ASSEMBLY (INC. 14)CAP, GAS TANK - ASSEMBLY (INC. 14)
-
140109-733 ...SEAL, GAS TANK CAP...SEAL, GAS TANK CAP
-
158060-628 RIVETRIVET
-
160670-304 PLATE, RETAININGPLATE, RETAINING
-
170123-802 WASHERWASHER
-
180470-970 NECK, FILLNECK, FILL
-
190624-390 CLAMP, HOSECLAMP, HOSE
-
200410-283 HOSE, GASLINEHOSE, GASLINE
-
211470-049 FOAM, TANKFOAM, TANK
-
220619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
