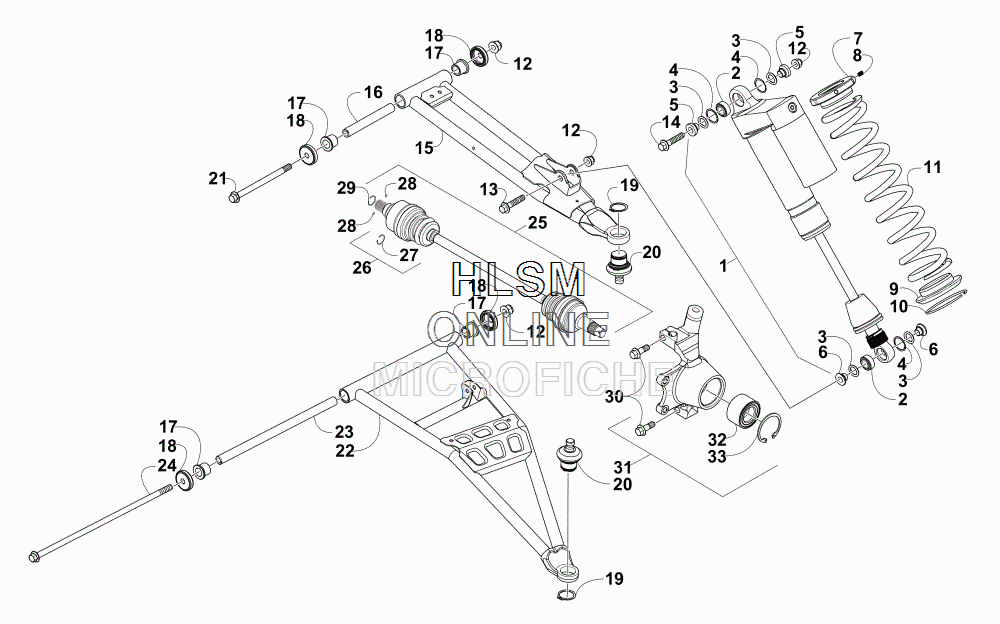

FRONT SUSPENSION ASSEMBLY для Arctic Cat WILDCAT SPORT RED [U2016W6T4COSR] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0403-476 SHOCK ABSORBER (INC. 2-10)
    SHOCK ABSORBER (INC. 2-10)
  • 2
    0403-506 ...BEARING
    ...BEARING
  • 3
    0403-504 ...O-RING
    ...O-RING
  • 4
    0403-507 ...CLIP
    ...CLIP
  • 5
    0403-508 ...SPACER
    ...SPACER
  • 6
    0403-505 ...SPACER
    ...SPACER
  • 7
    0403-500 ...NUT, RETAINER - SPRING
    ...NUT, RETAINER - SPRING
  • 8
    0403-501 ...SCREW, SET
    ...SCREW, SET
  • 9
    0403-502 ...RETAINER
    ...RETAINER
  • 10
    0403-503 ...CLIP
    ...CLIP
  • 11
    0503-929 SPRING, SUSPENSION - WHITE
    SPRING, SUSPENSION - WHITE
  • 12
    1423-334 NUT, LOCK
    NUT, LOCK
  • 13
    8409-045 SCREW, CAP
    SCREW, CAP
  • 14
    8409-055 SCREW, CAP
    SCREW, CAP
  • 15
    0503-618 A-ARM, UPPER RIGHT - BLACK (INC.16-20)
    A-ARM, UPPER RIGHT - BLACK (INC.16-20)
  • 15
    0503-619 A-ARM, UPPER LEFT - BLACK (INC.16-20)
    A-ARM, UPPER LEFT - BLACK (INC.16-20)
  • 16
    0404-503 ...SLEEVE
    ...SLEEVE
  • 17
    2402-077 ...BEARING
    ...BEARING
  • 18
    1423-287 ...SEAL
    ...SEAL
  • 19
    0423-009 ...CLIP, BALL JOINT
    ...CLIP, BALL JOINT
  • 20
    0405-483 ...BALL JOINT
    ...BALL JOINT
  • 21
    1423-266 SCREW, CAP
    SCREW, CAP
  • 22
    0503-610 A-ARM, LOWER RIGHT - BLACK (INC. 16-20 AND 23)
    A-ARM, LOWER RIGHT - BLACK (INC. 16-20 AND 23)
  • 22
    0503-611 A-ARM, LOWER LEFT - BLACK (INC. 16-20 AND 23)
    A-ARM, LOWER LEFT - BLACK (INC. 16-20 AND 23)
  • 23
    0404-502 ...SLEEVE
    ...SLEEVE
  • 24
    1423-249 SCREW, CAP
    SCREW, CAP
  • 25
    2502-354 KIT, HALFSHAFT (INC. 26-29)
    KIT, HALFSHAFT (INC. 26-29)
  • 26
    2436-112 ...REPAIR KIT, BOOT (INC. 27)
    ...REPAIR KIT, BOOT (INC. 27)
  • 27
    1441-988 ......CLIP, RETAINING
    ......CLIP, RETAINING
  • 28
    1402-885 PIN, DETENT
    PIN, DETENT
  • 29
    1402-889 CLIP, RETAINING
    CLIP, RETAINING
  • 30
    0423-998 SCREW, SHOULDER
    SCREW, SHOULDER
  • 31
    0503-912 KNUCKLE - ASSEMBLY - RIGHT (INC. 32-33)
    KNUCKLE - ASSEMBLY - RIGHT (INC. 32-33)
  • 31
    0503-913 KNUCKLE - ASSEMBLY - LEFT (INC. 32-33)
    KNUCKLE - ASSEMBLY - LEFT (INC. 32-33)
  • 32
    1402-809 ...BEARING
    ...BEARING
  • 33
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
