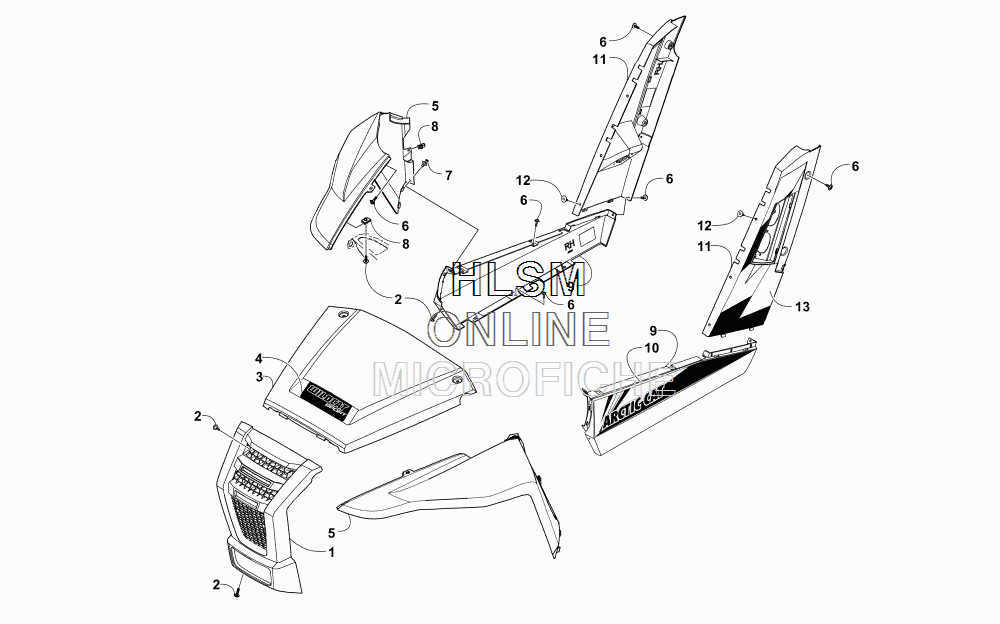

FRONT AND SIDE PANEL ASSEMBLIES для Arctic Cat WILDCAT SPORT RED [U2016W6T4COSR] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    4406-263 FASCIA, FRONT
    FASCIA, FRONT
  • 2
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
  • 3
    4406-269 PANEL, HOOD - BLACK
    PANEL, HOOD - BLACK
  • 4
    5411-114 DECAL, HOOD - FRONT
    DECAL, HOOD - FRONT
  • 5
    4406-650 FENDER, FRONT - RIGHT - RED
    FENDER, FRONT - RIGHT - RED
  • 5
    4406-651 FENDER, FRONT - LEFT - RED
    FENDER, FRONT - LEFT - RED
  • 6
    1423-198 SCREW, MACHINE
    SCREW, MACHINE
  • 7
    0623-362 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 8
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 9
    4406-280 PANEL, SIDE - LOWER RIGHT - BLACK
    PANEL, SIDE - LOWER RIGHT - BLACK
  • 9
    4406-281 PANEL, SIDE - LOWER LEFT - BLACK
    PANEL, SIDE - LOWER LEFT - BLACK
  • 10
    5411-234 DECAL, LOWER SIDE PANEL - RIGHT - RED
    DECAL, LOWER SIDE PANEL - RIGHT - RED
  • 10
    5411-235 DECAL, LOWER SIDE PANEL - LEFT - RED
    DECAL, LOWER SIDE PANEL - LEFT - RED
  • 11
    4406-378 PANEL, REAR SIDE - RIGHT - RED
    PANEL, REAR SIDE - RIGHT - RED
  • 11
    4406-379 PANEL, REAR SIDE - LEFT - RED
    PANEL, REAR SIDE - LEFT - RED
  • 12
    0623-544 PLUG
    PLUG
  • 13
    5411-238 DECAL, PILLAR RH
    DECAL, PILLAR RH
  • 13
    5411-239 DECAL, PILLAR LH
    DECAL, PILLAR LH
