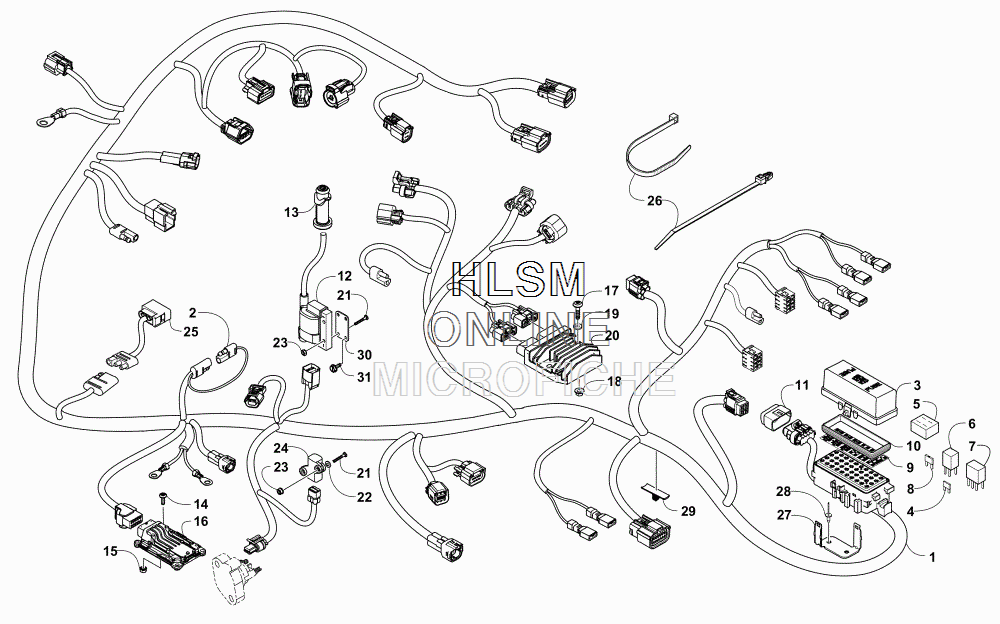

WIRING HARNESS ASSEMBLY для Arctic Cat HDX 700 XT CAMO [U2016R6T1PUSH] - 2016 года выпуска
-
№АртикулНазвание
-
10486-551 HARNESS, MAIN (INC. 2-11)HARNESS, MAIN (INC. 2-11)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-100 ...BREAKER, CIRCUIT - 15 AMP...BREAKER, CIRCUIT - 15 AMP
-
50430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
60430-045 ...RELAY (4-PIN) - 20 AMP...RELAY (4-PIN) - 20 AMP
-
70430-033 ...RELAY (5-PIN) - 30 AMP...RELAY (5-PIN) - 30 AMP
-
80430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
80430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
80430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
94411-131 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
100430-086 ...SEAL...SEAL
-
110430-103 ...COVER, DIAGNOSTICS CONNECTOR...COVER, DIAGNOSTICS CONNECTOR
-
120824-071 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
130824-049 CAP, SPARK PLUGCAP, SPARK PLUG
-
148476-620 SCREW, MACHINESCREW, MACHINE
-
150623-038 NUT W/WASHERNUT W/WASHER
-
160530-124 ECMECM
-
178476-625 SCREW, MACHINESCREW, MACHINE
-
188424-602 NUT, LOCKNUT, LOCK
-
190623-184 WASHERWASHER
-
200824-078 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
218468-425 SCREW, MACHINESCREW, MACHINE
-
220123-802 WASHERWASHER
-
230423-493 NUT W/WASHERNUT W/WASHER
-
240409-064 SENSOR, TILTSENSOR, TILT
-
250486-403 HARNESS, ADAPTER - TAILLIGHTHARNESS, ADAPTER - TAILLIGHT
-
260123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
260123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
260423-075 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
260623-144 TIE, CABLETIE, CABLE
-
270745-388 BRACKET, MOUNTING - PDMBRACKET, MOUNTING - PDM
-
288060-686 RIVET - ZINCRIVET - ZINC
-
290430-102 CLIP, ROUTINGCLIP, ROUTING
-
304406-675 BRACKET, COILBRACKET, COIL
-
310623-361 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
