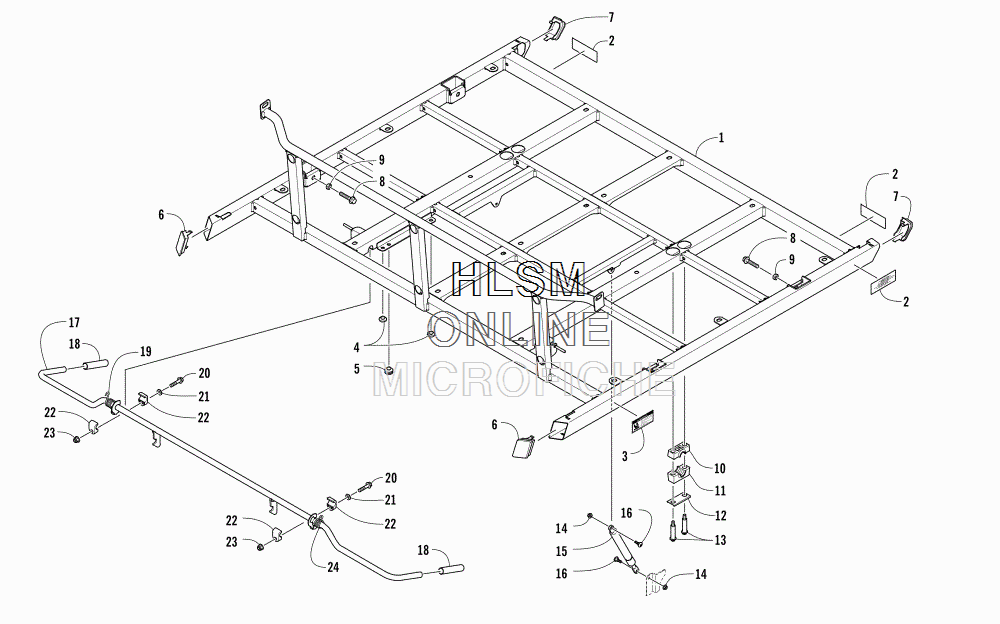

TILT FRAME ASSEMBLY для Arctic Cat HDX 700 XT CAMO [U2016R6T1PUSH] - 2016 года выпуска
-
№АртикулНазвание
-
12516-712 FRAME,TILT - ASSEMBLYFRAME,TILT - ASSEMBLY
-
22411-182 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
34411-883 DECAL, WARNING - PINCH POINTDECAL, WARNING - PINCH POINT
-
40406-877 BUMPERBUMPER
-
51423-057 BUMPERBUMPER
-
62416-366 ENDCAP, FRONT - RIGHTENDCAP, FRONT - RIGHT
-
62416-367 ENDCAP, FRONT - LEFTENDCAP, FRONT - LEFT
-
72416-364 ENDCAP, REAR - RIGHTENDCAP, REAR - RIGHT
-
72416-365 ENDCAP, REAR - LEFTENDCAP, REAR - LEFT
-
81423-012 SCREW, CAPSCREW, CAP
-
98420-002 NUT - RIGHT-HAND THREADNUT - RIGHT-HAND THREAD
-
100405-139 BLOCK, MOUNTINGBLOCK, MOUNTING
-
110405-138 BLOCK, MOUNTINGBLOCK, MOUNTING
-
120405-166 CAP, HOUSING UPPERCAP, HOUSING UPPER
-
130423-505 SCREW, SHOULDER LOWERSCREW, SHOULDER LOWER
-
140623-056 NUT, LOCKNUT, LOCK
-
152506-194 SUPPORT, LIFTSUPPORT, LIFT
-
160423-356 SCREW, SHOULDERSCREW, SHOULDER
-
172516-724 ROD, LATCH - TILT FRAMEROD, LATCH - TILT FRAME
-
181406-736 GRIP, LATCH RODGRIP, LATCH ROD
-
192416-404 SPRING, LATCH - RIGHTSPRING, LATCH - RIGHT
-
208408-845 SCREW, CAPSCREW, CAP
-
210423-087 WASHERWASHER
-
221406-674 HALF-CLAMPHALF-CLAMP
-
238427-802 NUT, LOCKNUT, LOCK
-
242416-405 SPRING, LATCH - LEFTSPRING, LATCH - LEFT
