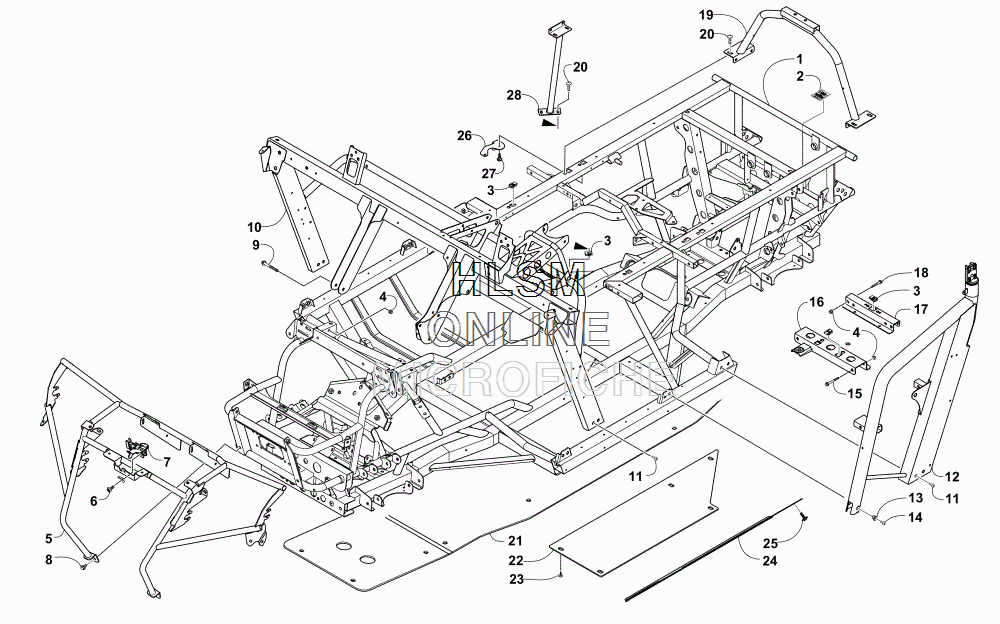

FRAME AND RELATED PARTS (SN# 302246 AND BELOW) для Arctic Cat HDX 700 XT CAMO [U2016R6T1PUSH] - 2016 года выпуска
-
№АртикулНазвание
-
15506-744 FRAME, MAINFRAME, MAIN
-
24411-110 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
-
30423-577 CLIP, U-NUTCLIP, U-NUT
-
48427-802 NUT, LOCKNUT, LOCK
-
55506-720 BUMPERBUMPER
-
60423-910 SCREW, MACHINESCREW, MACHINE
-
74406-624 LATCH, HOODLATCH, HOOD
-
88408-820 SCREW, CAPSCREW, CAP
-
98408-855 SCREW, CAPSCREW, CAP
-
105506-725 SUPPORT, STEERINGSUPPORT, STEERING
-
110423-817 SCREW, MACHINESCREW, MACHINE
-
125506-726 SUPPORT, OVERHEAD - RIGHTSUPPORT, OVERHEAD - RIGHT
-
125506-727 SUPPORT, OVERHEAD - LEFTSUPPORT, OVERHEAD - LEFT
-
131423-051 SPACERSPACER
-
140423-886 SCREW, MACHINESCREW, MACHINE
-
158408-870 SCREW, CAPSCREW, CAP
-
165506-902 BRACKET, SEAT SUPPORT - FRONT - RIGHTBRACKET, SEAT SUPPORT - FRONT - RIGHT
-
165506-903 BRACKET, SEAT SUPPORT - FRONT - LEFTBRACKET, SEAT SUPPORT - FRONT - LEFT
-
171506-842 BRACKET, SEAT SUPPORT - REARBRACKET, SEAT SUPPORT - REAR
-
188408-850 SCREW, CAPSCREW, CAP
-
197506-019 SUPPORT, ROPSSUPPORT, ROPS
-
208476-616 SCREW, MACHINESCREW, MACHINE
-
215406-186 PLATE, SKIDPLATE, SKID
-
222416-453 PANEL, BELLY - SIDEPANEL, BELLY - SIDE
-
230423-545 SCREW, SHOULDERSCREW, SHOULDER
-
242506-612 PLATE, SKID - SIDEPLATE, SKID - SIDE
-
251423-198 SCREW, MACHINESCREW, MACHINE
-
260413-326 BRACKET, AIR INTAKEBRACKET, AIR INTAKE
-
270423-609 SCREW, MACHINESCREW, MACHINE
-
282516-777 TUBE, SUPPORTTUBE, SUPPORT
