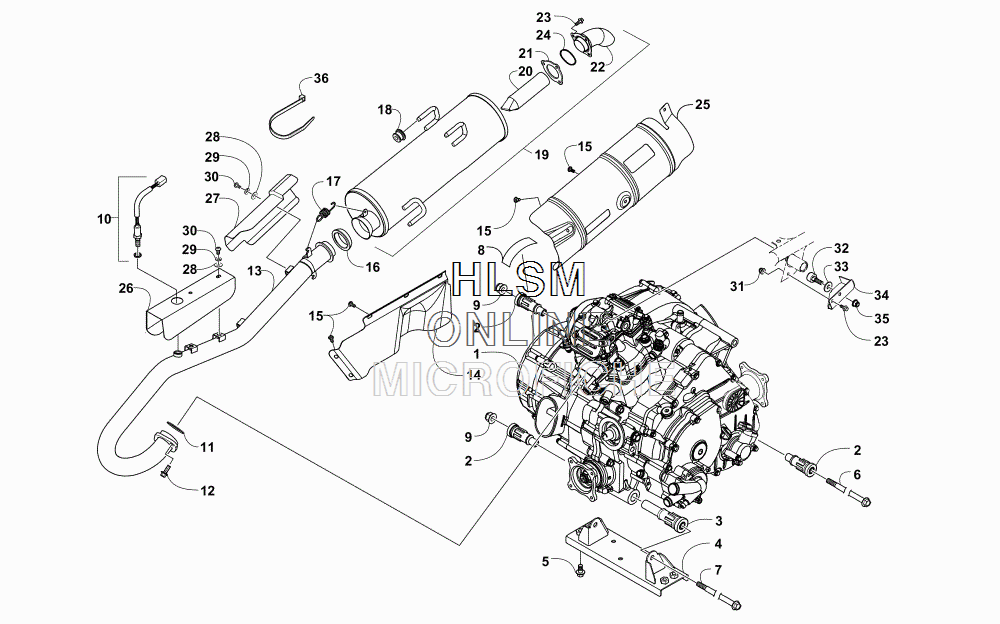

ENGINE AND EXHAUST для Arctic Cat ALTERRA 700 RED [A2016XAT4EUSR] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0800-205 ENGINE (INC. 2-3)
    ENGINE (INC. 2-3)
  • 2
    0801-129 ...MOUNT, RUBBER - ENGINE
    ...MOUNT, RUBBER - ENGINE
  • 3
    0801-122 ...MOUNT, RUBBER - ENGINE
    ...MOUNT, RUBBER - ENGINE
  • 4
    0508-032 BRACKET, ENGINE - FRONT
    BRACKET, ENGINE - FRONT
  • 5
    8408-816 SCREW, CAP
    SCREW, CAP
  • 6
    0423-451 SCREW, CAP
    SCREW, CAP
  • 7
    0423-405 SCREW, CAP
    SCREW, CAP
  • 8
    0411-426 DECAL, WARNING - CLUTCH
    DECAL, WARNING - CLUTCH
  • 9
    8428-002 NUT, LOCK
    NUT, LOCK
  • 10
    0630-302 SENSOR, OXYGEN
    SENSOR, OXYGEN
  • 11
    0412-338 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 12
    8408-820 SCREW, CAP
    SCREW, CAP
  • 13
    0512-748 PIPE, EXHAUST - PAINTED BLACK
    PIPE, EXHAUST - PAINTED BLACK
  • 14
    0412-785 SHIELD, EXHAUST PIPE
    SHIELD, EXHAUST PIPE
  • 15
    1623-490 SCREW, CAP
    SCREW, CAP
  • 16
    0412-375 SEAL, EXHAUST PIPE
    SEAL, EXHAUST PIPE
  • 17
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
  • 18
    0412-544 BUSHING
    BUSHING
  • 19
    0512-735 MUFFLER - ASSEMBLY (INC. 20-23)
    MUFFLER - ASSEMBLY (INC. 20-23)
  • 20
    0512-647 ...SPARK ARRESTER ASSEMBLY
    ...SPARK ARRESTER ASSEMBLY
  • 21
    0412-675 ...GASKET, SPARK ARRESTER
    ...GASKET, SPARK ARRESTER
  • 22
    0512-739 ...PIPE, TAIL - BLACK
    ...PIPE, TAIL - BLACK
  • 23
    8408-616 ...SCREW, CAP
    ...SCREW, CAP
  • 24
    1423-246 ...WASHER, WAVE
    ...WASHER, WAVE
  • 25
    0412-788 SHIELD, PIPE - MUFFLER
    SHIELD, PIPE - MUFFLER
  • 26
    0412-854 SHIELD, EXHAUST
    SHIELD, EXHAUST
  • 27
    0412-853 SHIELD, EXHAUST
    SHIELD, EXHAUST
  • 28
    8050-223 WASHER, FLAT
    WASHER, FLAT
  • 29
    8053-212 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 30
    0423-361 SCREW, MACHINE
    SCREW, MACHINE
  • 31
    8427-602 NUT, LOCK
    NUT, LOCK
  • 32
    1423-299 BUMPER
    BUMPER
  • 33
    8450-127 WASHER
    WASHER
  • 34
    0408-062 BRACKET, HEAD MOUNT
    BRACKET, HEAD MOUNT
  • 35
    8427-802 NUT, LOCK
    NUT, LOCK
  • 36
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
