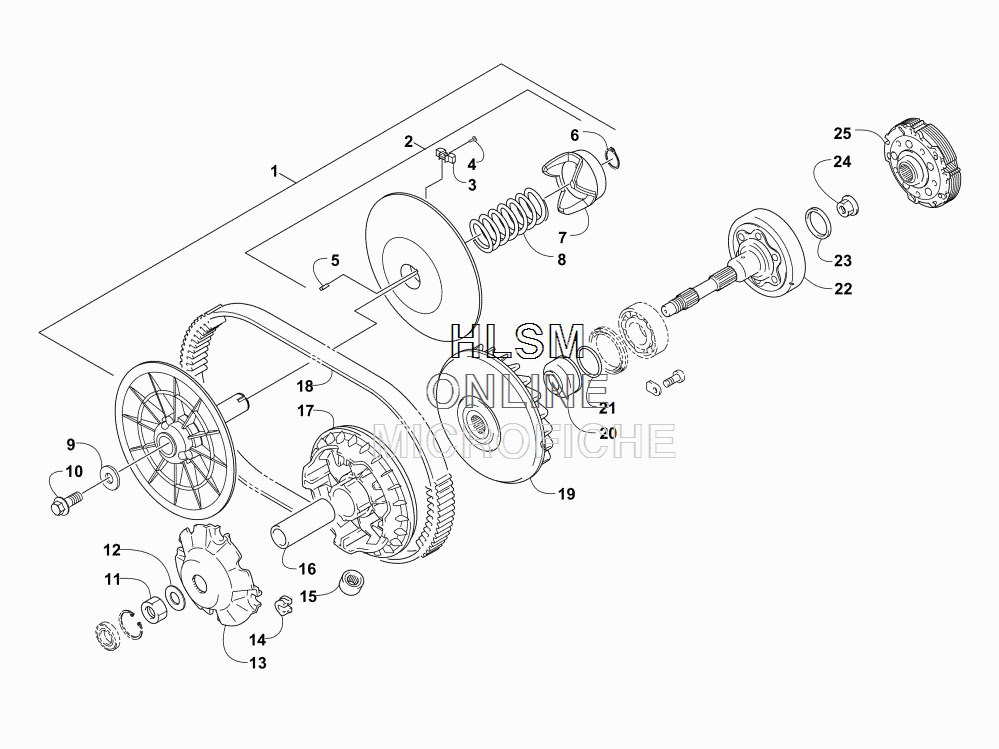

TRANSMISSION ASSEMBLY для Arctic Cat ALTERRA 550 [A2016XAO4EUSR] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0823-535 PULLEY, DRIVEN - ASSEMBLY (INC. 2-8)
    PULLEY, DRIVEN - ASSEMBLY (INC. 2-8)
  • 2
    0823-554 ...PULLEY, DRIVEN - UNCALIBRATED (INC. 3-6)
    ...PULLEY, DRIVEN - UNCALIBRATED (INC. 3-6)
  • 3
    0823-454 ......SHOE, CAM
    ......SHOE, CAM
  • 4
    0823-177 ......SCREW, MACHINE
    ......SCREW, MACHINE
  • 5
    0823-383 ......KEY
    ......KEY
  • 6
    0823-455 ......RING, SNAP - EXTERNAL
    ......RING, SNAP - EXTERNAL
  • 7
    0823-453 ...CAM
    ...CAM
  • 8
    0823-377 ...SPRING - BLACK
    ...SPRING - BLACK
  • 9
    0623-929 WASHER
    WASHER
  • 10
    8413-241 SCREW, CAP
    SCREW, CAP
  • 11
    0827-010 NUT
    NUT
  • 12
    0828-106 WASHER
    WASHER
  • 13
    0823-276 PLATE, MOVABLE DRIVE FACE
    PLATE, MOVABLE DRIVE FACE
  • 14
    0823-277 DAMPER, MOVABLE DRIVE FACE
    DAMPER, MOVABLE DRIVE FACE
  • 15
    0823-167 ROLLER, MOVABLE DRIVE (BLUE)
    ROLLER, MOVABLE DRIVE (BLUE)
  • 16
    0823-360 SPACER
    SPACER
  • 17
    0823-273 FACE, MOVABLE DRIVE
    FACE, MOVABLE DRIVE
  • 18
    0823-013 BELT, DRIVE
    BELT, DRIVE
  • 19
    0823-272 FACE, FIXED DRIVE
    FACE, FIXED DRIVE
  • 20
    0823-015 SPACER, FIXED DRIVE FACE
    SPACER, FIXED DRIVE FACE
  • 21
    0470-531 O-RING
    O-RING
  • 22
    0823-556 HOUSING, CLUTCH - ASSEMBLY
    HOUSING, CLUTCH - ASSEMBLY
  • 23
    0830-189 SEAL
    SEAL
  • 24
    0827-011 NUT
    NUT
  • 25
    0823-484 CLUTCH, CENTRIFUGAL - 6 PLATE
    CLUTCH, CENTRIFUGAL - 6 PLATE
