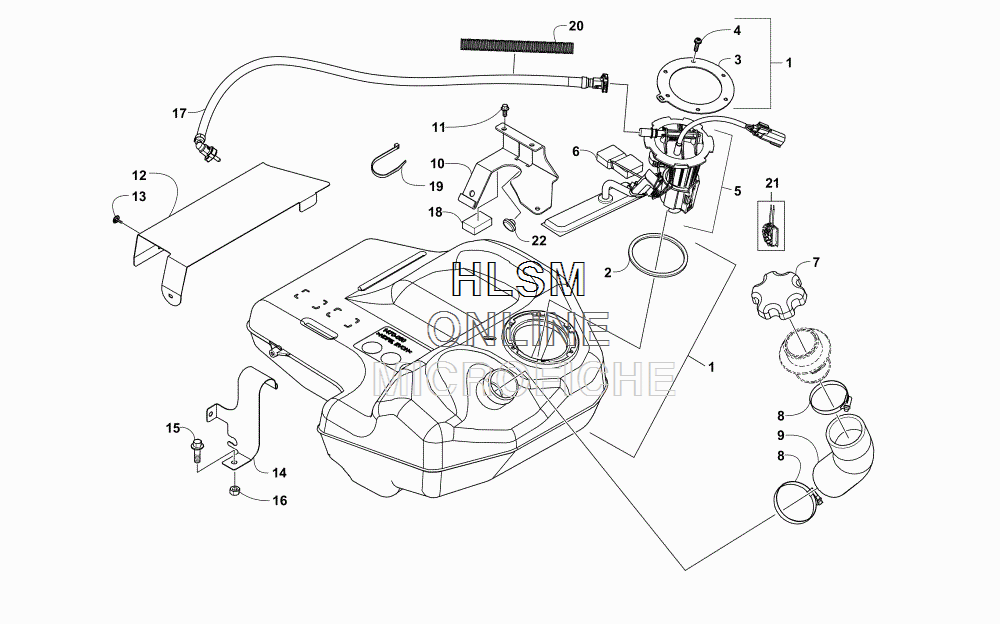

GAS TANK ASSEMBLY для Arctic Cat ALTERRA 550 [A2016XAO4EUSR] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-418 TANK, GAS - ASSEMBLY (INC. 2-4)
    TANK, GAS - ASSEMBLY (INC. 2-4)
  • 2
    0470-838 ...SEAL
    ...SEAL
  • 3
    2670-042 ...PLATE, RETAINING - FUEL PUMP
    ...PLATE, RETAINING - FUEL PUMP
  • 4
    0423-898 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 5
    0570-430 PUMP, FUEL - ASSEMBLY (INC. 6)
    PUMP, FUEL - ASSEMBLY (INC. 6)
  • 6
    2670-235 ...FLOAT
    ...FLOAT
  • 7
    1470-110 CAP, GAS TANK
    CAP, GAS TANK
  • 8
    0624-390 CLAMP, HOSE
    CLAMP, HOSE
  • 9
    0410-192 HOSE, FILLER - FUEL
    HOSE, FILLER - FUEL
  • 10
    5994-282 BRACKET, FUEL TANK - REAR (INC. 18 AND 22)
    BRACKET, FUEL TANK - REAR (INC. 18 AND 22)
  • 11
    8408-620 SCREW, CAP
    SCREW, CAP
  • 12
    1470-070 SHIELD, HEAT
    SHIELD, HEAT
  • 13
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    7506-226 BRACKET, FUEL TANK
    BRACKET, FUEL TANK
  • 15
    8408-816 SCREW, CAP
    SCREW, CAP
  • 16
    8420-802 NUT
    NUT
  • 17
    0410-193 HOSE, GASLINE
    HOSE, GASLINE
  • 18
    1470-094 FOAM, FUEL TANK
    FOAM, FUEL TANK
  • 19
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 20
    0619-776 CONDUIT, FLEXIBLE - 5 FT
    CONDUIT, FLEXIBLE - 5 FT
  • 21
    1770-170 FUEL LEVEL SENSOR KIT
    FUEL LEVEL SENSOR KIT
  • 22
    0406-877 BUMPER
    BUMPER
