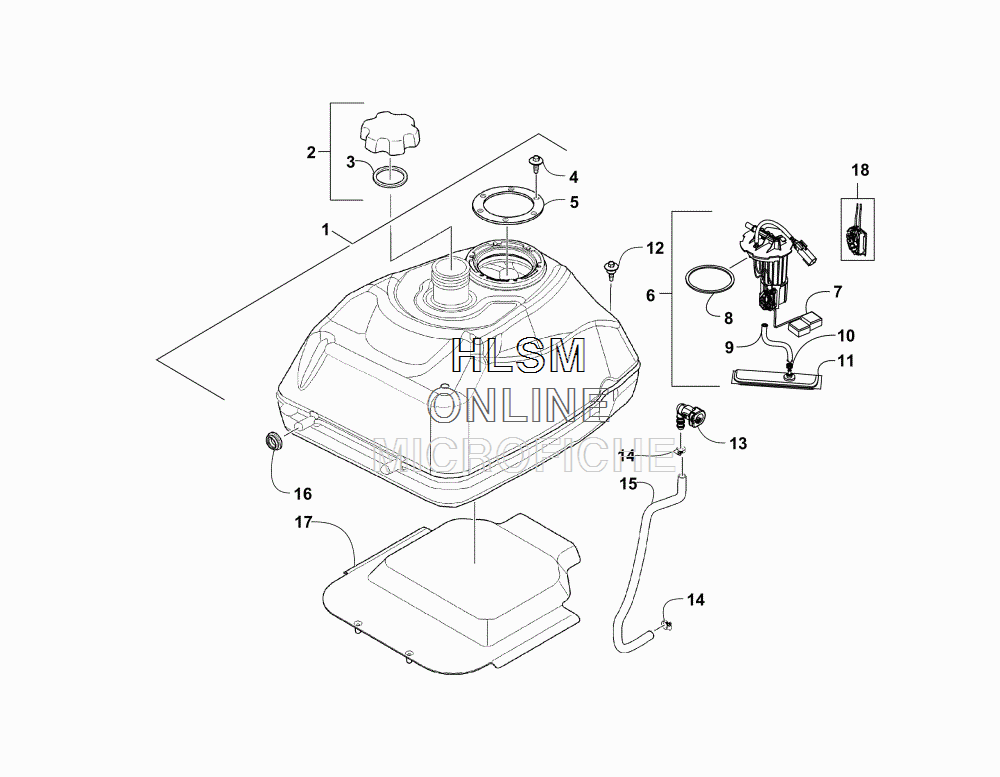

GAS TANK ASSEMBLY для Arctic Cat ALTERRA 450 RED [ACA2016KAK4CUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-403 TANK, FUEL - ASSEMBLY (INC. 2-5)
    TANK, FUEL - ASSEMBLY (INC. 2-5)
  • 2
    3306-297 ...CAP, GAS TANK (INC. 3)
    ...CAP, GAS TANK (INC. 3)
  • 3
    3306-298 ......GASKET, GAS TANK CAP
    ......GASKET, GAS TANK CAP
  • 4
    3306-300 ...BOLT, WASHER - 5 X 16
    ...BOLT, WASHER - 5 X 16
  • 5
    3306-299 ...PLATE, RETAINING
    ...PLATE, RETAINING
  • 6
    3307-076 PUMP, FUEL - ASSEMBLY (INC. 7-11)
    PUMP, FUEL - ASSEMBLY (INC. 7-11)
  • 7
    2670-235 ...FLOAT
    ...FLOAT
  • 8
    3313-845 ...SEAL
    ...SEAL
  • 9
    3307-080 TUBE, FILTER
    TUBE, FILTER
  • 10
    3307-079 CLIP
    CLIP
  • 11
    3307-077 FUEL FILTER
    FUEL FILTER
  • 12
    0423-732 SCREW, SHOULDER
    SCREW, SHOULDER
  • 13
    1670-878 FITTING, QUICK-CONNECT
    FITTING, QUICK-CONNECT
  • 14
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    3307-078 HOSE, FUEL - ASSEMBLY
    HOSE, FUEL - ASSEMBLY
  • 16
    0423-460 GROMMET
    GROMMET
  • 17
    3313-833 SHIELD, HEAT
    SHIELD, HEAT
  • 18
    1770-170 FUEL LEVEL SENSOR KIT
    FUEL LEVEL SENSOR KIT
