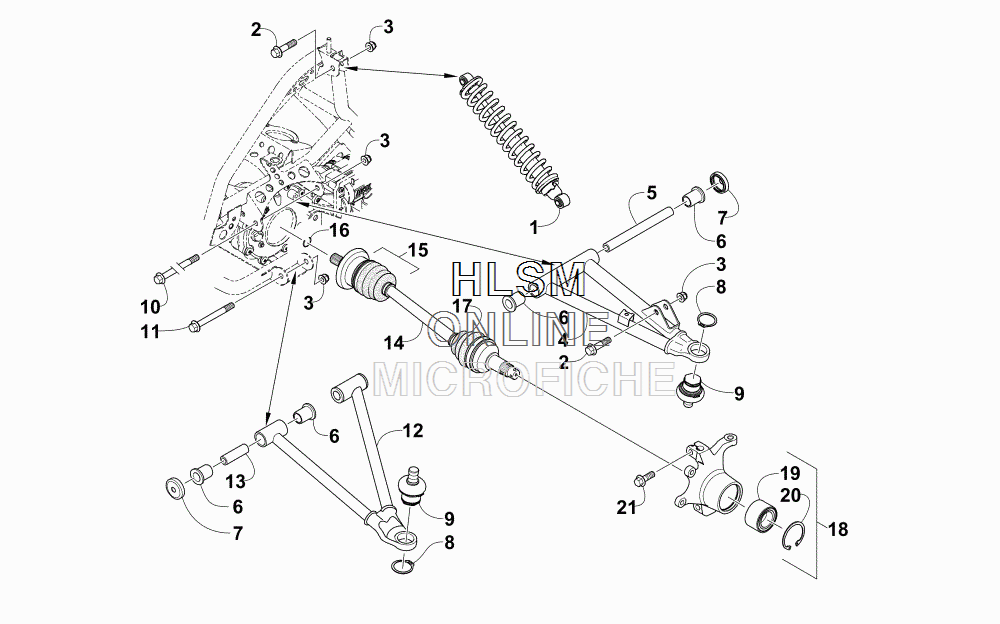

FRONT SUSPENSION ASSEMBLY для Arctic Cat ALTERRA 450 RED [ACA2016KAK4CUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-865 SHOCK/SPRING ASSEMBLY - BLACK
    SHOCK/SPRING ASSEMBLY - BLACK
  • 2
    3307-068 BOLT FLANGE 10X40
    BOLT FLANGE 10X40
  • 3
    3304-031 U-NUT
    U-NUT
  • 4
    3306-866 A-ARM, UPPER RIGHT - BLACK (INC. 5-9)
    A-ARM, UPPER RIGHT - BLACK (INC. 5-9)
  • 4
    3306-867 A-ARM, UPPER LEFT - BLACK (INC. 5-9)
    A-ARM, UPPER LEFT - BLACK (INC. 5-9)
  • 5
    3313-111 ...SLEEVE, SUSPENSION
    ...SLEEVE, SUSPENSION
  • 6
    3313-112 ...BUSHING
    ...BUSHING
  • 7
    3313-113 ...SEAL
    ...SEAL
  • 8
    0423-009 ...CLIP, BALL JOINT
    ...CLIP, BALL JOINT
  • 9
    0405-483 ...BALL JOINT
    ...BALL JOINT
  • 10
    3313-430 SCREW, CAP
    SCREW, CAP
  • 11
    3304-183 SCREW, CAP
    SCREW, CAP
  • 12
    3313-082 A-ARM, LOWER RIGHT - BLACK (INC. 6-9 AND 13)
    A-ARM, LOWER RIGHT - BLACK (INC. 6-9 AND 13)
  • 12
    3313-083 A-ARM, LOWER LEFT - BLACK (INC. 6-9 AND 13)
    A-ARM, LOWER LEFT - BLACK (INC. 6-9 AND 13)
  • 13
    3313-107 ...AXLE
    ...AXLE
  • 14
    3313-831 HALFSHAFT, FRONT (INC. 15-17)
    HALFSHAFT, FRONT (INC. 15-17)
  • 15
    3313-560 ...SERVICE KIT, DIFFERENTIAL SIDE BOOT (IN BOARD) (INC. 16)
    ...SERVICE KIT, DIFFERENTIAL SIDE BOOT (IN BOARD) (INC. 16)
  • 16
    0423-844 ......CLIP, RETAINING - INBOARD
    ......CLIP, RETAINING - INBOARD
  • 17
    3306-425 REPAIR KIT, BOOT - DRIVE AXLE - OUTBOUND
    REPAIR KIT, BOOT - DRIVE AXLE - OUTBOUND
  • 18
    3323-130 KNUCKLE - ASSEMBLY - RIGHT (INC. 19-20)
    KNUCKLE - ASSEMBLY - RIGHT (INC. 19-20)
  • 18
    3323-131 KNUCKLE - ASSEMBLY - LEFT (INC. 19-20)
    KNUCKLE - ASSEMBLY - LEFT (INC. 19-20)
  • 19
    1402-809 ...BEARING
    ...BEARING
  • 20
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
  • 21
    3323-127 SCREW, CAP
    SCREW, CAP
