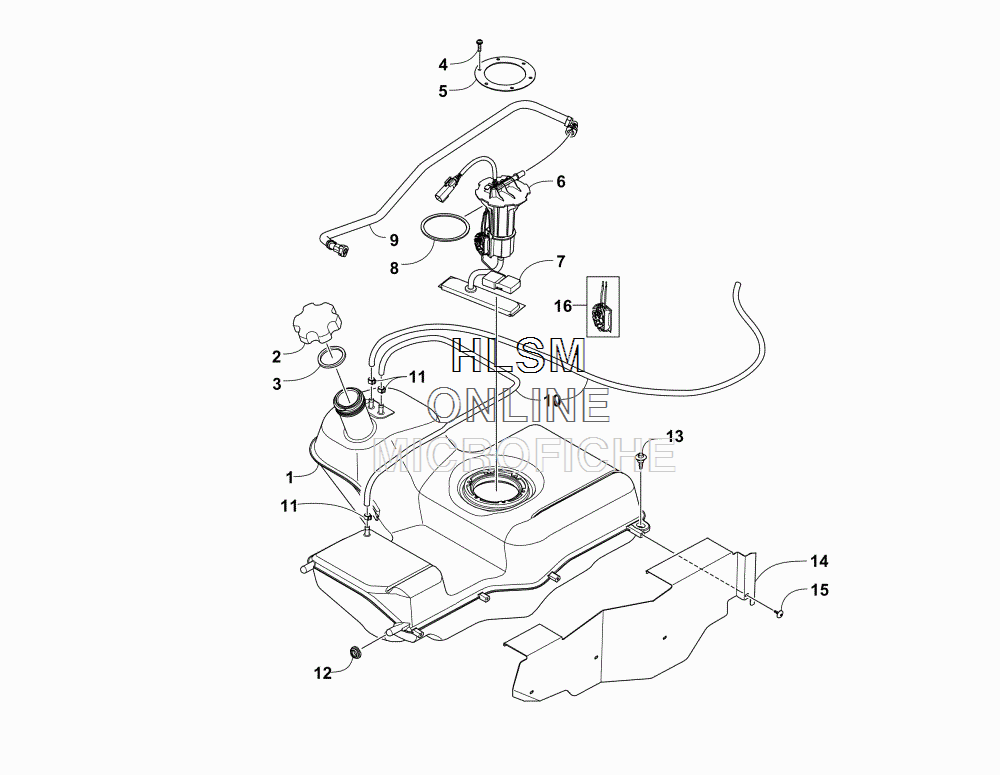

GAS TANK ASSEMBLY для Arctic Cat 700 TBX RED [A2015BBT1PUSR] - 2015 года выпуска
-
№АртикулНазвание
-
10570-306 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
20470-438 CAP, GAS TANK - ASSEMBLY (INC. 3)CAP, GAS TANK - ASSEMBLY (INC. 3)
-
30109-733 ...SEAL, GAS TANK CAP...SEAL, GAS TANK CAP
-
40423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
52670-042 PLATE, RETAININGPLATE, RETAINING
-
60570-434 KIT, FUEL PUMP (INC. 7-8)KIT, FUEL PUMP (INC. 7-8)
-
72670-235 ...FLOAT...FLOAT
-
80470-838 ...SEAL...SEAL
-
90570-305 HOSE, FUEL - ASSEMBLYHOSE, FUEL - ASSEMBLY
-
100410-070 HOSE - 25 FTHOSE - 25 FT
-
110423-688 CLAMP, HOSECLAMP, HOSE
-
120423-460 GROMMETGROMMET
-
130423-732 SCREW, SHOULDERSCREW, SHOULDER
-
140470-715 SHIELD, HEATSHIELD, HEAT
-
150623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
